TP-Link TL-SG2008 Installation Manual

Installation Guide

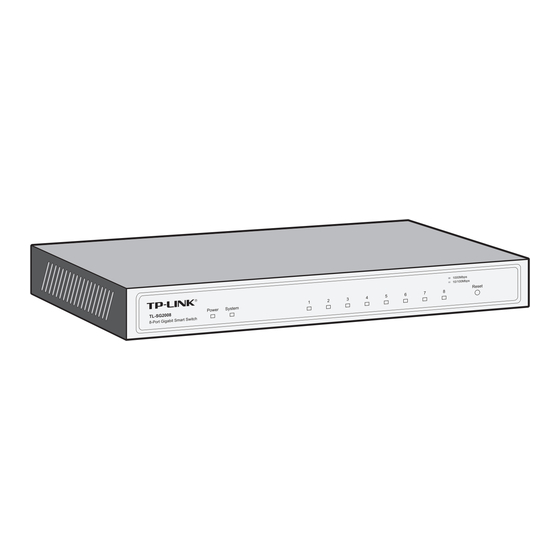

8-Port Gigabit Smart Switch
TL-SG2008
Connection
DC Power Cord
Internet
Configuration
1. To access the GUI of the switch, open a browser and type the default
management address http://192.168.0.1 in the address field of the
browser, then press the Enter key.
Note:
To log in to the switch, the IP address of your PC should be set in the
same subnet as that of the switch. The IP address is 192.168.0.x ("x" is
any number from 2 to 254). Subnet Mask is 255.255.255.0. For details,
please refer to Appendix B in the User Guide on the resource CD.
PC
PC
2. Enter admin for both the User Name and Password in the lower case
letters. Then click the Login button or press the Enter key.
3. After a successful login, the main page will appear as follows, and you
can click the menu on the left side to configure the corresponding
functions.
Note:
For more details about how to configure the switch, see the User Guide
on the resource CD.
7106504849 REV2.0.0
For more information, please visit our website: http://www.tp-link.com
Ethernet Ports (1-8)
