2.2 Cutter Pen Nomenclature

When handling cutter blades, be careful to avoid cutting your fingers or other parts of your body.
With this plotter, the cutter blade is mounted into its corresponding cutter plunger for use. There are two types of cutter
plungers available, which vary according to the diameter of the blade to be mounted (the φ1.5-mm cutter plunger is
provided as a standard accessory). Be sure to mount the cutter blade in a cutter plunger that is compatible with the
diameter of the cutter blade.
Only the PHP31-CB09-HS cutter pen can be mounted in the FC4500-50/60 tool holder 2. Please see the user's manual
provided with the PHP31-CB09-HS cutter pen for a description of the cutter pen itself.

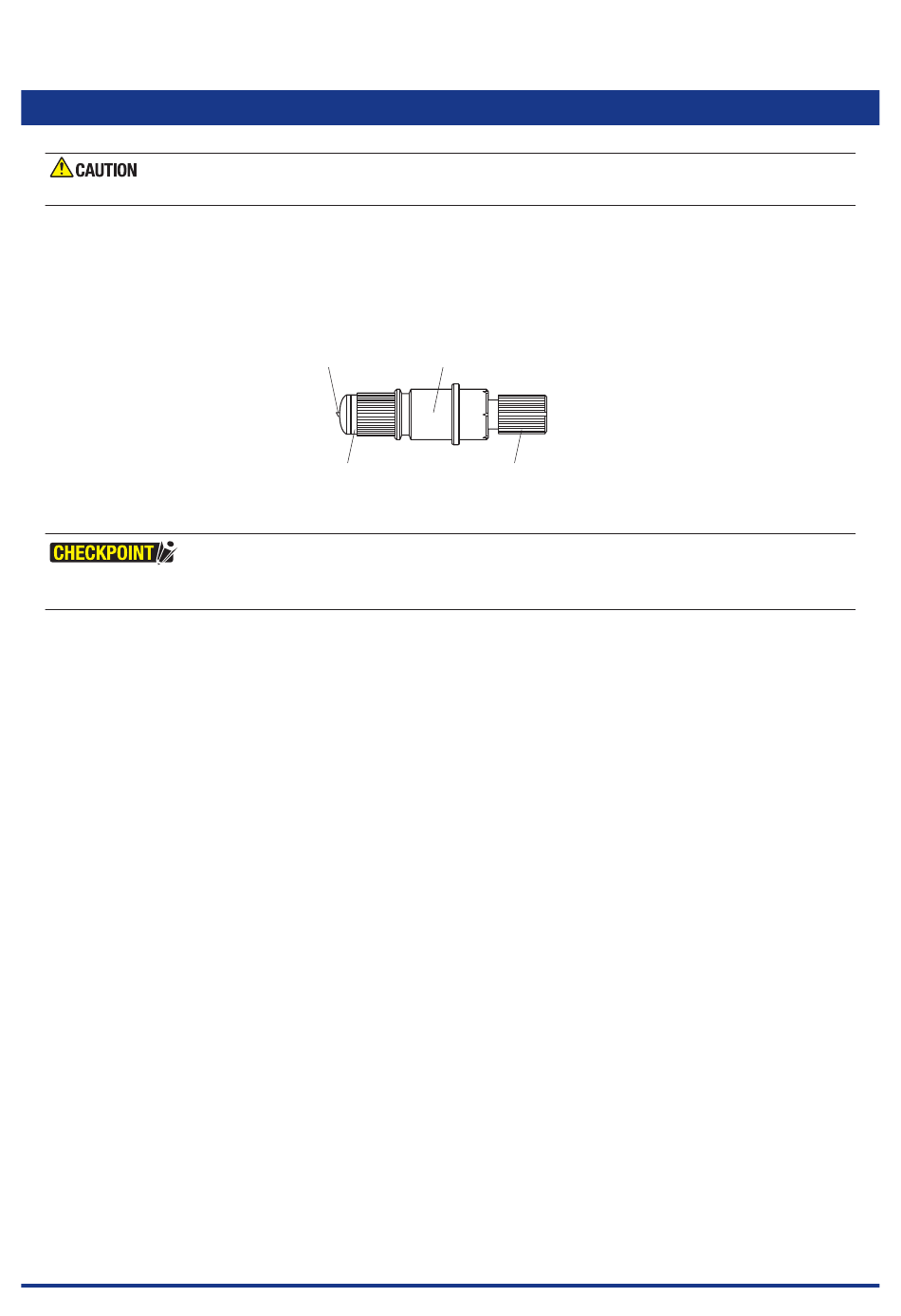

PHP32-CB15N-HS
Cutter blade Plunger
Plunger cap
Chapter 2 CUTTER BLADES, CUTTER PENS AND PENS
Blade length adjustment dial
Blue dial: for 0.9-mm blades
Red dial: for 1.5-mm blades
2-3
