Chapter 2 CUTTER BLADES, CUTTER PENS AND PENS

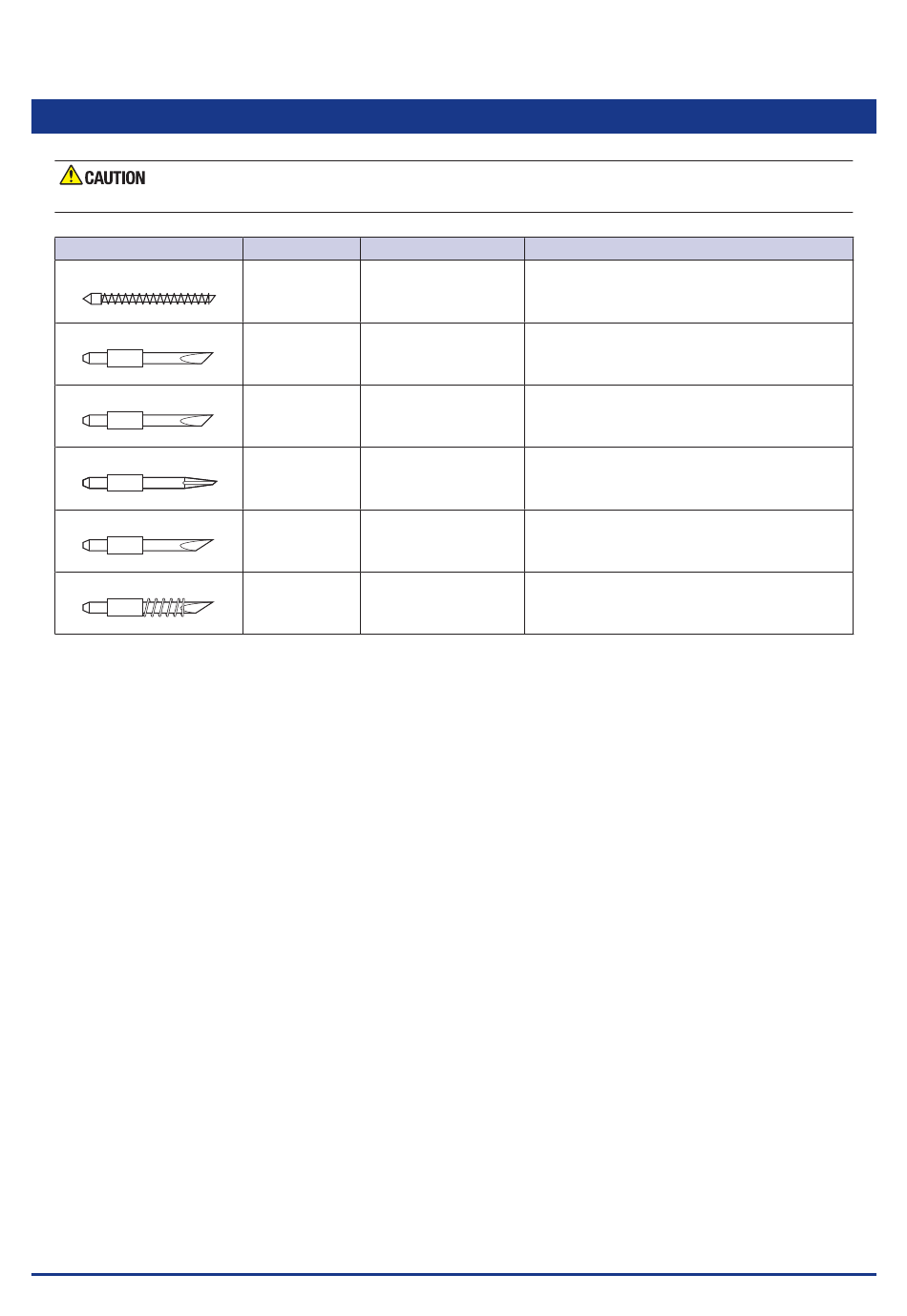

2.1 Types of Cutter Blades and Their Features

Handle cutter blades with care!
Blade shape and part no.
CB09UA
CB15U
CB15UA
CB15UB
CB15U-K30
CB15U-K20-SP
2-2
Blade diameter Compatible cutter pen
φ 0.9 mm PHP32-CB09N-HS
PHP31-CB09-HS
φ 1.5 mm PHP32-CB15N-HS
φ 1.5 mm PHP32-CB15N-HS
φ 1.5 mm PHP32-CB15N-HS
φ 1.5 mm PHP32-CB15N-HS
φ 1.5 mm PHP31-CB15B-HS
Applications and Features
Standard blade for cutting color adhesive film.
Suitable for cutting media up to 0.25 mm thick.
Maximum cutting distance: Approx. 4000 m.
For cutting high-intensity reflective film.
For cutting media which are too thick for the
CB09UA blade to handle.
Suitable for cutting media from 0.25 to 0.5 mm thick.
For cutting small text less than 10 mm in height on
color adhesive film.
For thick media. The sharply angled tip provides a
longer cutting edge. Suitable for cutting media from
0.5 to 1.5 mm thick.
For cutting sandblast rubber.
