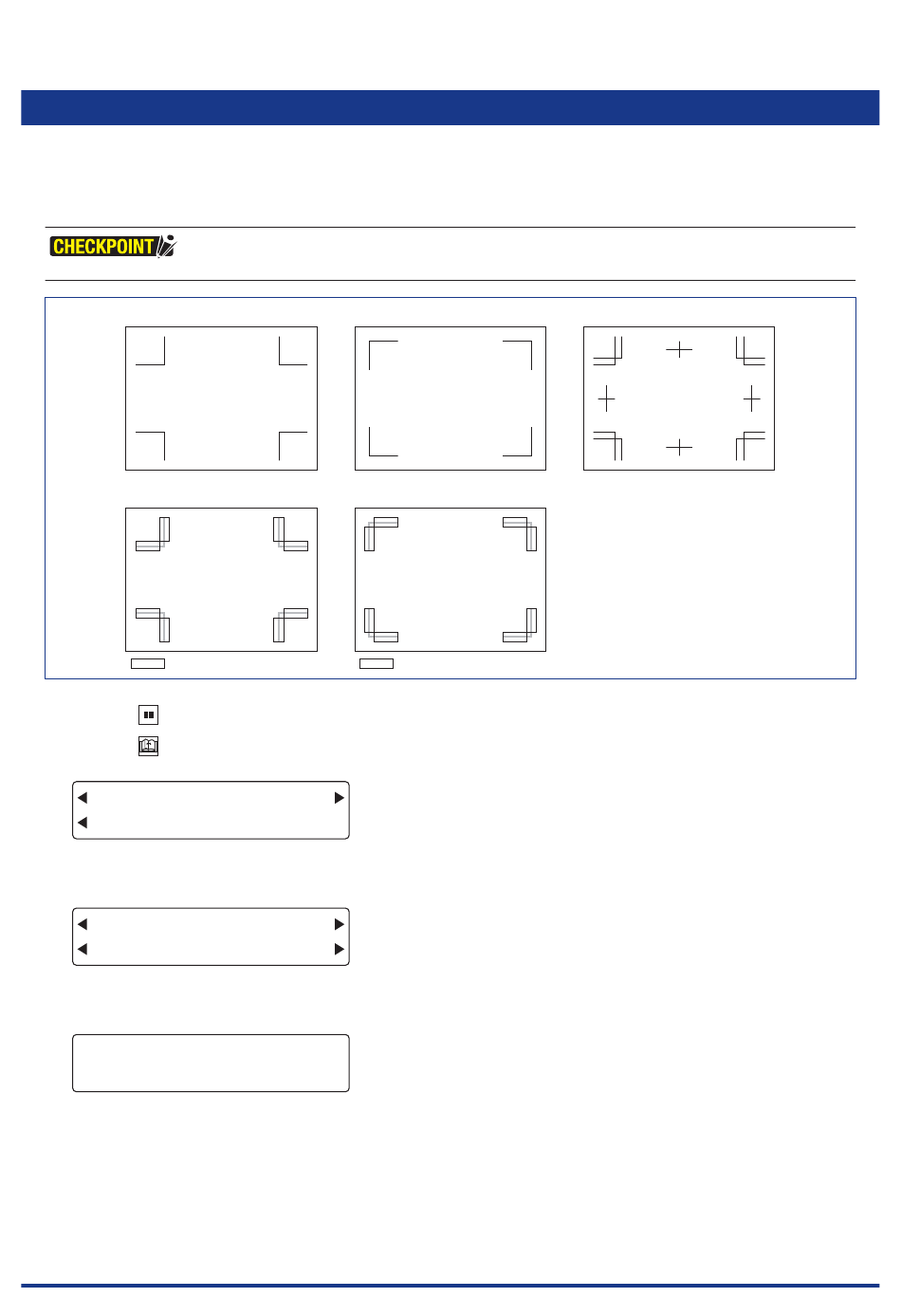

4.3 Setting the Registration Mark Pattern

Your plotter can read five registration mark patterns: 1, 2, 3, Mirror 1 and Mirror 2. If pattern 3, Mirror 1 or
Mirror 2 has been selected, this function allows you to set the spacing between the registration mark line
segments.
Registration mark pattern 3 can only be selected on the FC4510-60 model.
Registration mark pattern 1
Registration mark pattern Mirror 1
: Cutout area
(1) Press the [PAUSE] key to select PAUSE mode.
(2) Press the [NEXT] key repeatedly until the following menu is displayed.
FORCE
MARK
BUFFER CLR.
SPEED
(3) Press the [F1] key (MARK) to display the registration mark functions selection menu.
FORCE
MODE
TYPE OTHER SETUPS
SPEED
(4) Press the [F1] key (TYPE) to display the menu for setting the registration mark pattern.
FORCE
•1 MARK TYPE
2
SPEED
The currently selected setting is indicated by a black dot [
To read registration mark pattern 1, press the [F1] key (1).
To read registration mark pattern 2, press the [F2] key (2).
To read registration mark pattern 3, press the [F3] key (3).
When cutting will be performed from the reverse side, press the registration mark pattern [F1] key (1), [F2] key (2)
or [F3] key (3) together with the [F4] key (MIRROR).
Registration mark pattern 2
Registration mark pattern Mirror 2
OFFSET
TOOL U/D
QUALITY
OFFSET
DIST ADJ
QUALITY
OFFSET
3
MIRROR
QUALITY
Chapter 4 REGISTRATION MARK SETTINGS AND DETECTION
: Cutout area
•
].
Registration mark pattern 3
4-5
