Configuring Wheel Base And Antenna Offsets - Raven SmarTrax Calibration And Operation Manual

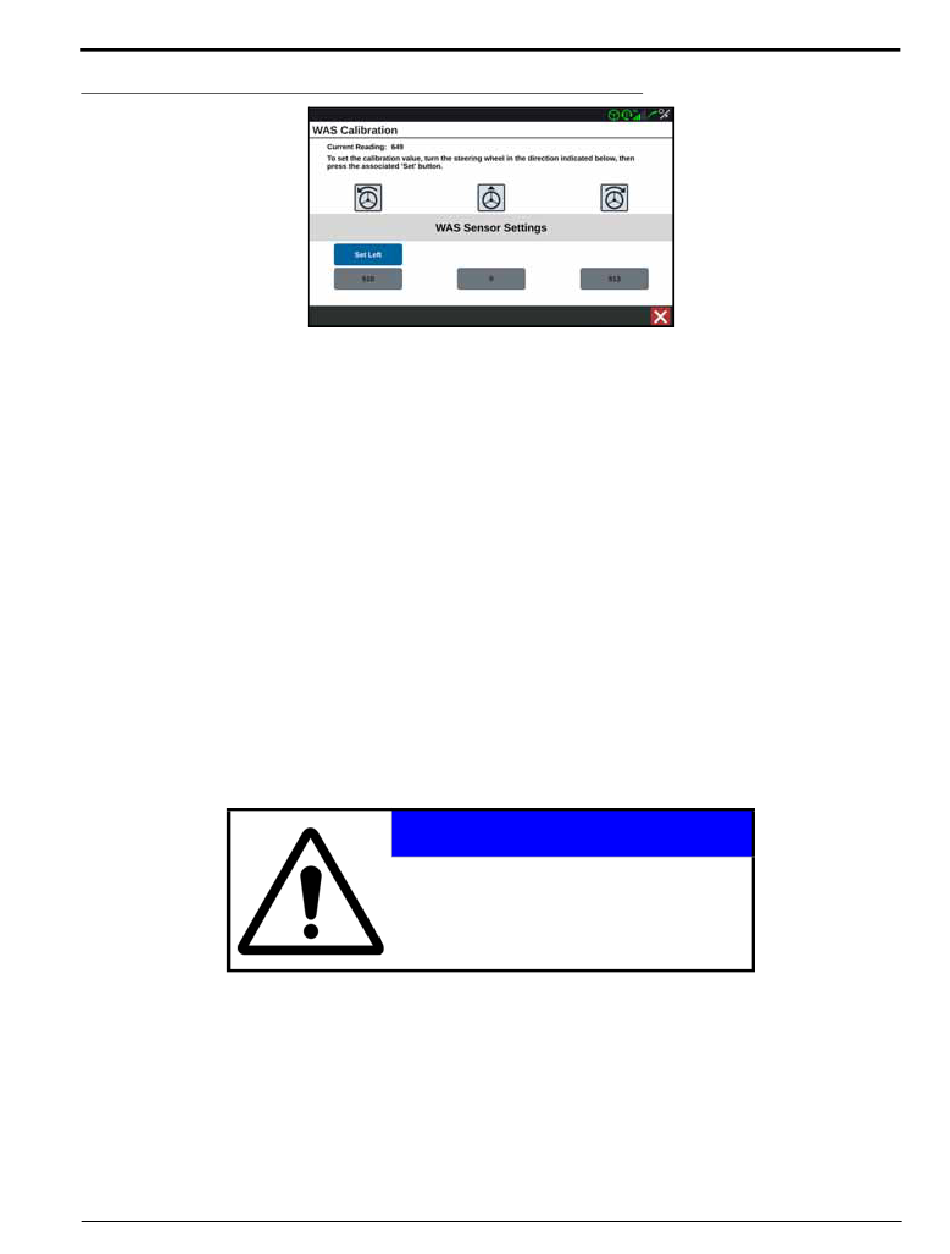

FIGURE 11. WAS Calibration Screen
1. While driving slowly, turn the steering wheel fully to the left wheel lock.
2. Select Set Left.
3. Continue driving slowly and straighten the wheel until the machine is driving straight forward.
4. Select Set Center.
5. Turn the steering wheel fully to the right wheel lock.
6. Select Set Right.
NOTE: The wizard will automatically advance to the next step in the calibration process.

CONFIGURING WHEEL BASE AND ANTENNA OFFSETS

If a generic machine profile was selected during the machine configuration process, the Wheel Base, Antenna
Position, and Antenna Height values must be entered into the SmarTrax system.
IMPORTANT: If a specific machine profile was selected during the machine configuration process, the Wheel Base,
Antenna Position, and Antenna Height values will be automatically populated on the screen. However, the
antenna mounting position may vary on the machine, so it is important to re-measure the Antenna
Position and Antenna Height to verify that the settings in the CR7 are correct.
P/N 016-0171-277 Rev. L
NOTICE
The Wheel Base, Antenna Position, and Antenna
Height values are critical to the operation of the
SmarTrax system. Measure these dimensions
accurately to ensure optimal SmarTrax system
performance!
