IMPORTANT: If Reset Defaults is selected, the SmarTrax system must be recalibrated before the system can be enabled.
Refer to Calibrate the SmarTrax System section on page 109 for information on completing the SmarTrax
system calibration.

ROUTINE OPERATION

ENGAGING SMARTRAX

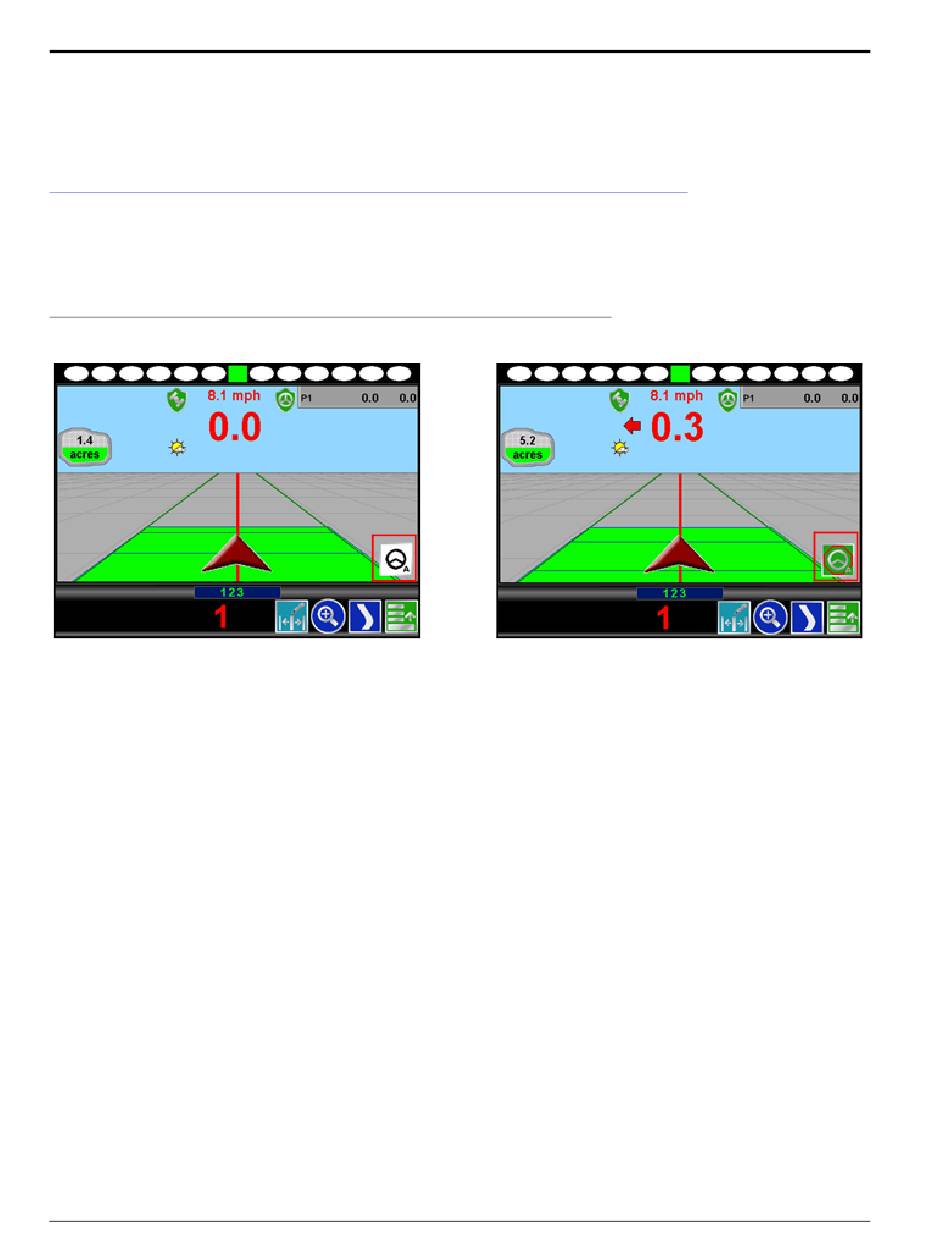

FIGURE 51. SmarTrax System Engaged
Not Enabled
The steering wheel icon in the lower right corner of the screen indicates whether the SmarTrax system is engaged
or disengaged. The icon is green when the system is enabled and white when it is not.
NOTE: The operator liability waiver must be accepted before the SmarTrax system can be enabled for
operation.
The SmarTrax steering may also be engaged using the following methods:
• Tap the foot switch or rocker switch to engage SmarTrax features without touching the Envizio Pro display.
• Press the SmarTrax on-screen status button to engage the SmarTrax during field operation.

UPDATING THE NODE

Refer to the Installation & Operation Manual for the specific field computer being used for instructions on
updating the node software.
