SYSTEM INFORMATION TAB

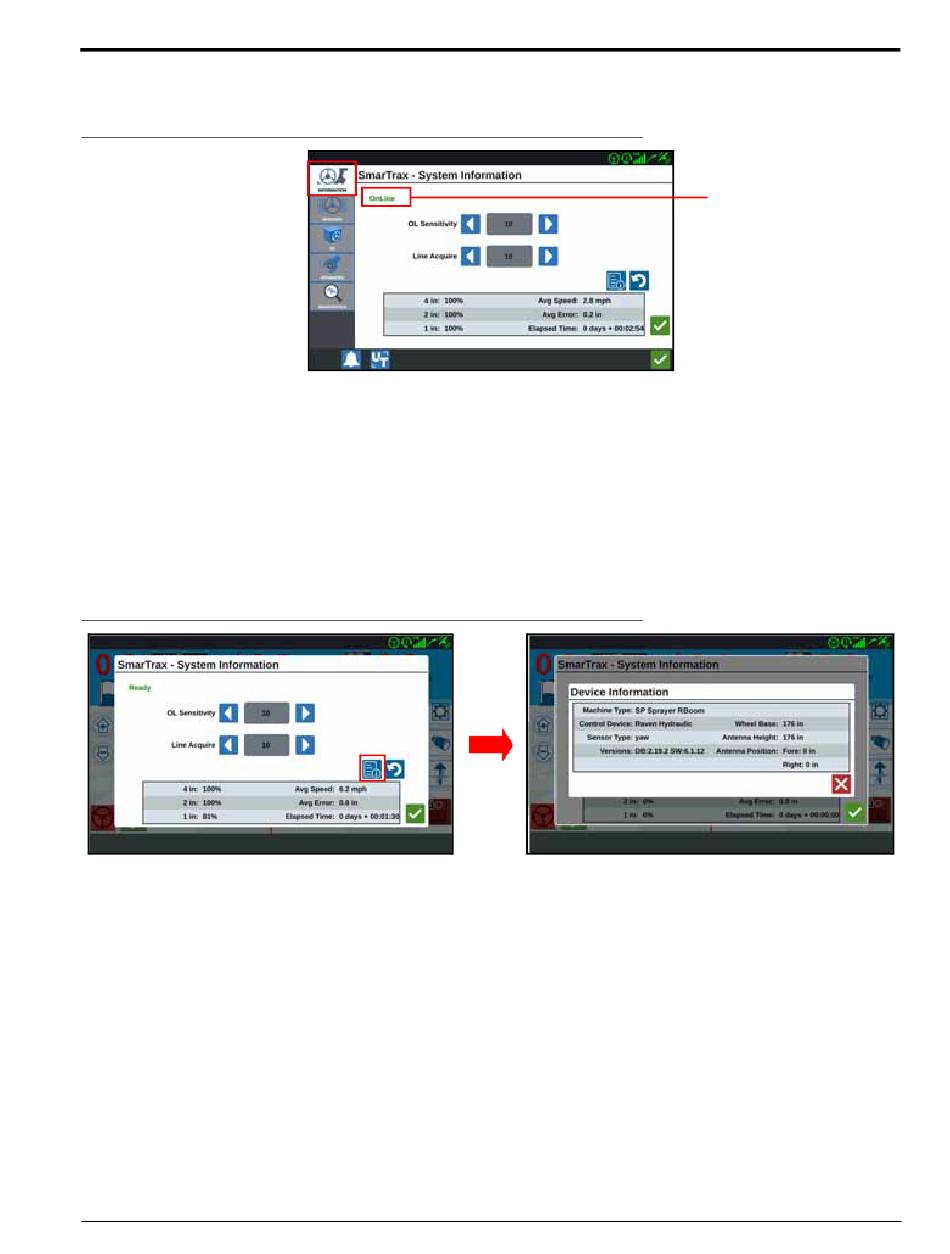

FIGURE 27. System Information Screen
• System Status/Alarm Field - Displays system status messages (OnLine,Ready, etc.) and system warnings (Too
Slow, 3D Hot, etc.) when the SmarTrax widget is indicating an alarm state.
• OL Sensitivity - Displays the OL Sensitivity value and allows the setting to be adjusted while in a job.
• Line Acquire - Displays the LA Aggressiveness value and allows the setting to be adjusted while in a job.
• 2", 4", and 8" - The percentage of time the machine has been within the distance of the guide line during the
last hour. Press Reset Performance Stats to set the fields to zero.
NOTE: On RTK systems, the values are 1", 2", and 4".
FIGURE 28. Device Information Screen
NOTE: To change the Sensor Type, Machine Type, Control Device, or Wheel Base settings, the SmarTrax
system must be reset and recalibrated.
• Machine Type - Displays the machine type or model selected during the SmarTrax calibration wizard. This
information cannot be changed without resetting the SmarTrax system. Generic machine types which may be
displayed in this area include:
◦
SP Sprayer RBoom - Self-propelled sprayer with a rear boom
◦
SP Sprayer FBoom - Self-propelled sprayer with a front boom
◦
FS Tractor - Front-steered tractor
◦
Articulated
◦
Rear Steered - Rear-steered machine
• Control Device - Displays the steering control device selected during the calibration wizard. This setting
cannot be changed without resetting the SmarTrax system. Available control devices include:
◦
Raven Hydraulic - SmarTrax hydraulic valve is controlling the vehicle steering.
P/N 016-0171-277 Rev. L
CR7 CALIBRATION AND OPERATION
System Status/
Alarm Field
