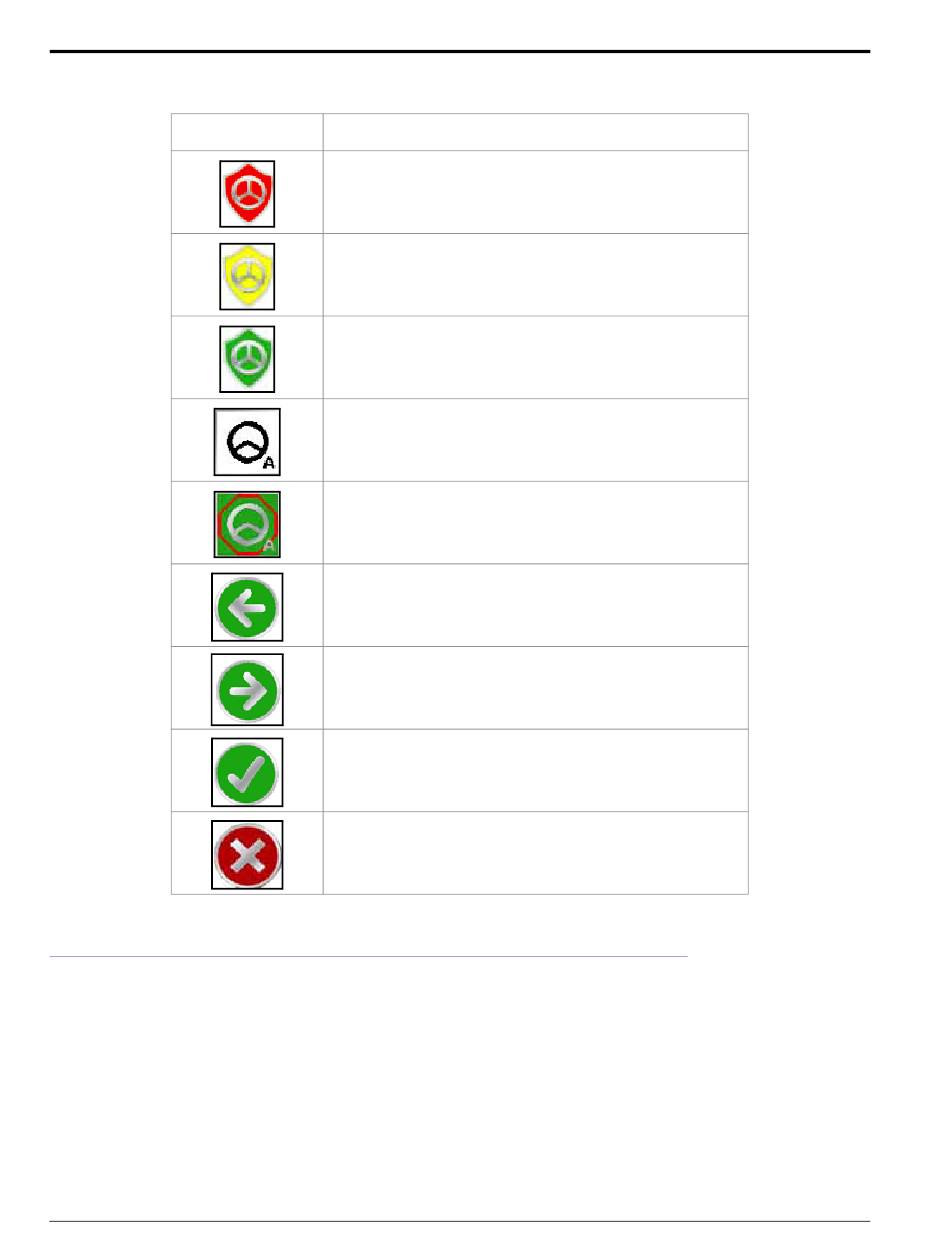

The current status of the SmarTrax system can be determined by the icons displayed on the field computer screen.
Display

INITIAL STARTUP

CRUIZER II CONNECTING TO SMARTRAX VIA CAN COMMUNICATION

1. Select the Tools Menu icon on the main menu.
2. Select the Show All icon in the upper-right corner of the screen.
3. Change the Port B baud rate to 115,200.
NOTE: Press the down arrow until 152,000 is highlighted in blue.
4. Ensure all message sliders are at the 0 position to the left.
102
Message
The SmarTrax node is detected, but no guidance line has
been set or there is an error in the system.
The SmarTrax node is detected and turned on, but the
current speed is outside of the acceptable operating
range. This display may also indicated a system warning.
SmarTrax is detected and turned on, with no errors
detected.
SmarTrax is detected and turned on, but is not enabled.
Tap the foot switch or touch the steering wheel icon to
enable the SmarTrax system.
SmarTrax is detected and in engaged, with no errors
detected.
Previous - Returns the Envizio Pro or Cruizer display to
the previous screen in the setup process.
Next - Saves the changes made to the SmarTrax system
and proceeds to the next step in the setup process.
Accept - Saves the changes made to the SmarTrax
system at the end of the setup process and returns the
to the Tools Menu.
Exit - Exits from the current screen without saving any
changes made to the system.
