6. Select Next Item.
7. To figure the Antenna Height, measure the distance from the ground to the antenna base mounting plate.

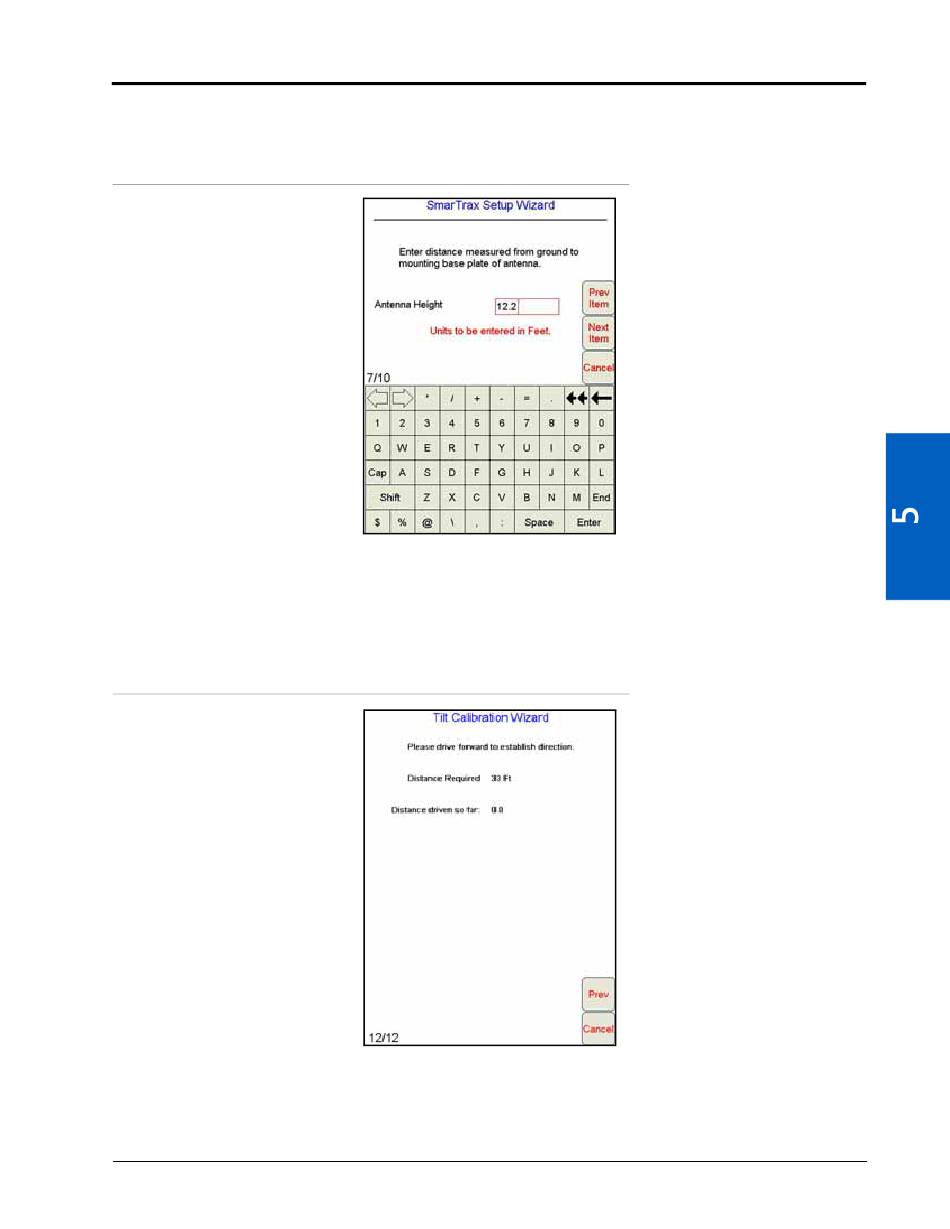

FIGURE 18. Antenna Height Configuration Screen
8. Enter the Antenna Height measurement.
9. Select Next Item.
ENHANCED TILT CALIBRATION
FIGURE 19. Establishing Heading Screen
P/N 016-0171-277 Rev. L
VIPER PRO CALIBRATION AND OPERATION
85
