increment at a time, allowing SmarTrax at least 30 seconds between adjustments to adjust to the change in the
value.
Setting the LA Aggressiveness value too high may cause the machine to steer into the guidance line too quickly
and weave around the guidance line. Lowering the value in these situations will allow the machine to settle on the
line.

ON-LINE (OL) MODE AND SENSITIVITY

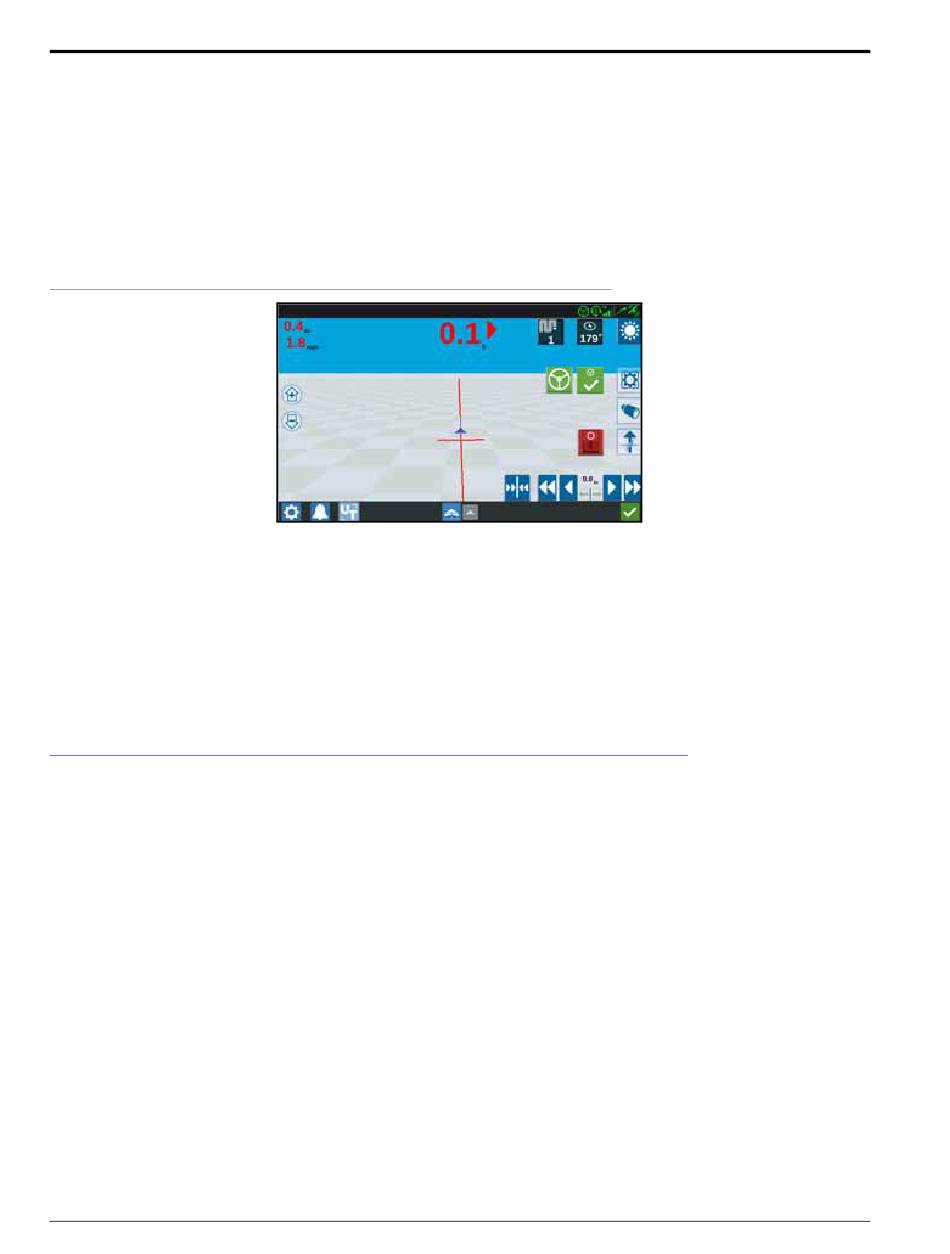

FIGURE 26. OL Mode Indicator
The OL Sensitivity value affects the response of the machine while steering on the displayed guidance line. If the
machine tends to slowly weave across the guidance line and does not remain on the desired path, increase the OL
Sensitivity value one increment at a time, allowing SmarTrax at least 30 seconds between adjustment to adjust to
the change in the value.
Setting the OL Sensitivity value too high may cause the machine to over-correct or become jittery while on the
line. Lowering the value in these situations will allow the vehicle to remain on the desired path.

ADVANCED SETUP TOOLS AND SYSTEM DIAGNOSTICS

Advanced setup tools allow fine-tuning of the system to adjust for the operating conditions and improve steering
accuracy.
NOTE: Some features or settings are not able to be adjusted unless SmarTrax is in an active job.
NOTE: Some features or settings are configured during the SmarTrax Setup Wizard and cannot be modified
or changed without resetting the SmarTrax system. Refer to the Reset Calibration section on page 35
for additional assistance with resetting the SmarTrax system to default settings.
