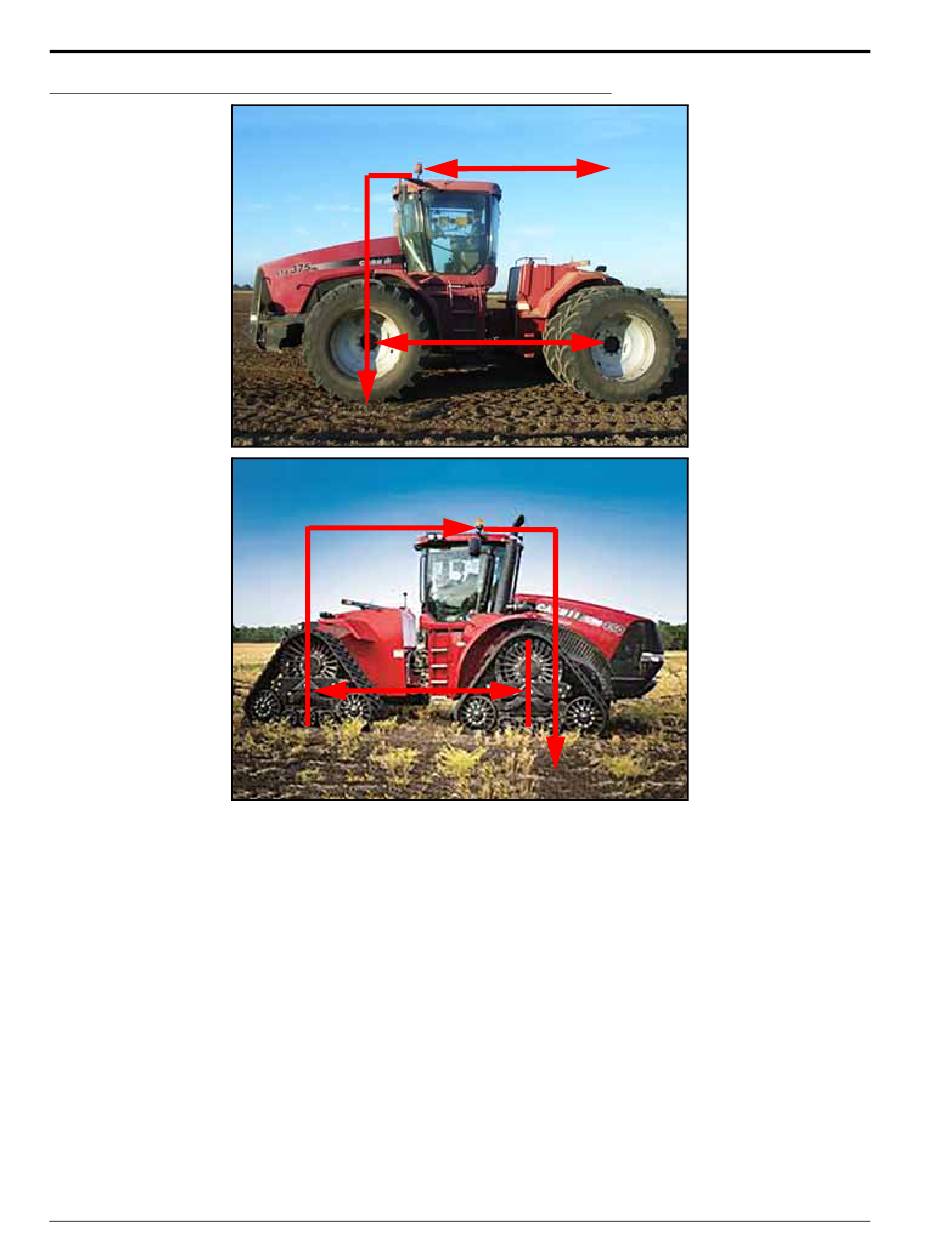

FIGURE 14. Articulated Machine Measurements
NOTE:
For articulated machines, measure from the center of the front tire to the center of the rear tire on
both sides of the machine. Add the values together and divide the number by two to find the
average.
82
ANTENNA
HEIGHT
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
WHEEL BASE
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
WHEEL BASE
MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
SmarTrax™ Calibration & Operation Manual
