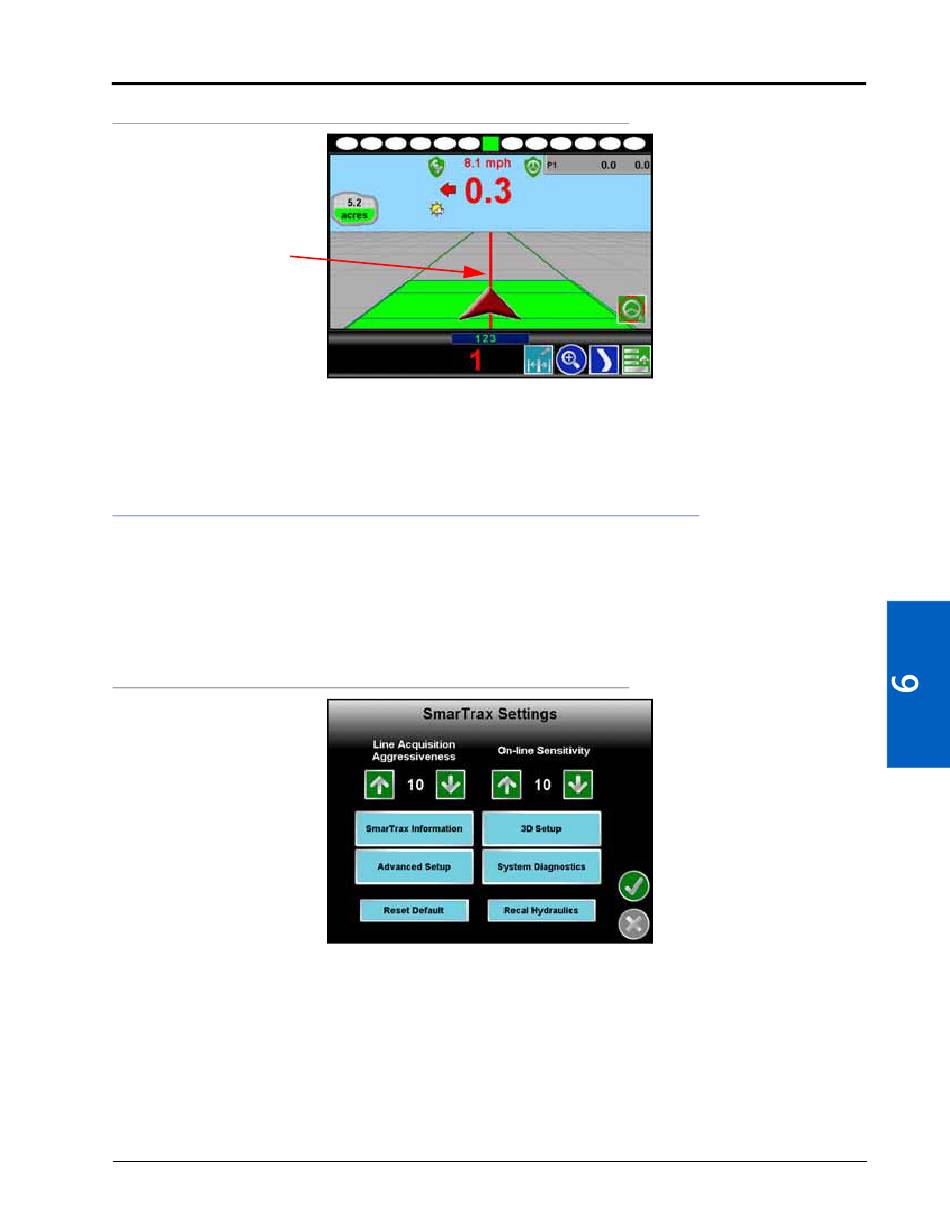

FIGURE 38. OL Mode
Guidance
Line
NOTE: The screen in Figure 33 illustrates an example of a situation in which SmarTrax is operating in OL
mode. This mode will remain active as long as the machine steers within 24 inches [60 cm] of the
displayed guidance line.

ADVANCED SETUP AND DIAGNOSTICS

This section provides detailed information on the various settings and options available in the SmarTrax screens.
The SmarTrax Settings screen may be accessed in two ways:
• From the Home screen, select the Tools Menu icon, then the Steering icon.
• In an active job, select Next in the SmarTrax sidebar.
FIGURE 39. SmarTrax Settings Screen
NOTE: In Cruizer II software, the "3D Setup" option is displayed as "Terrain Comp".
