C 3
HAPTER

MACHINE CONFIGURATION

SET UP MACHINE PROFILE(S) - OPTIONAL

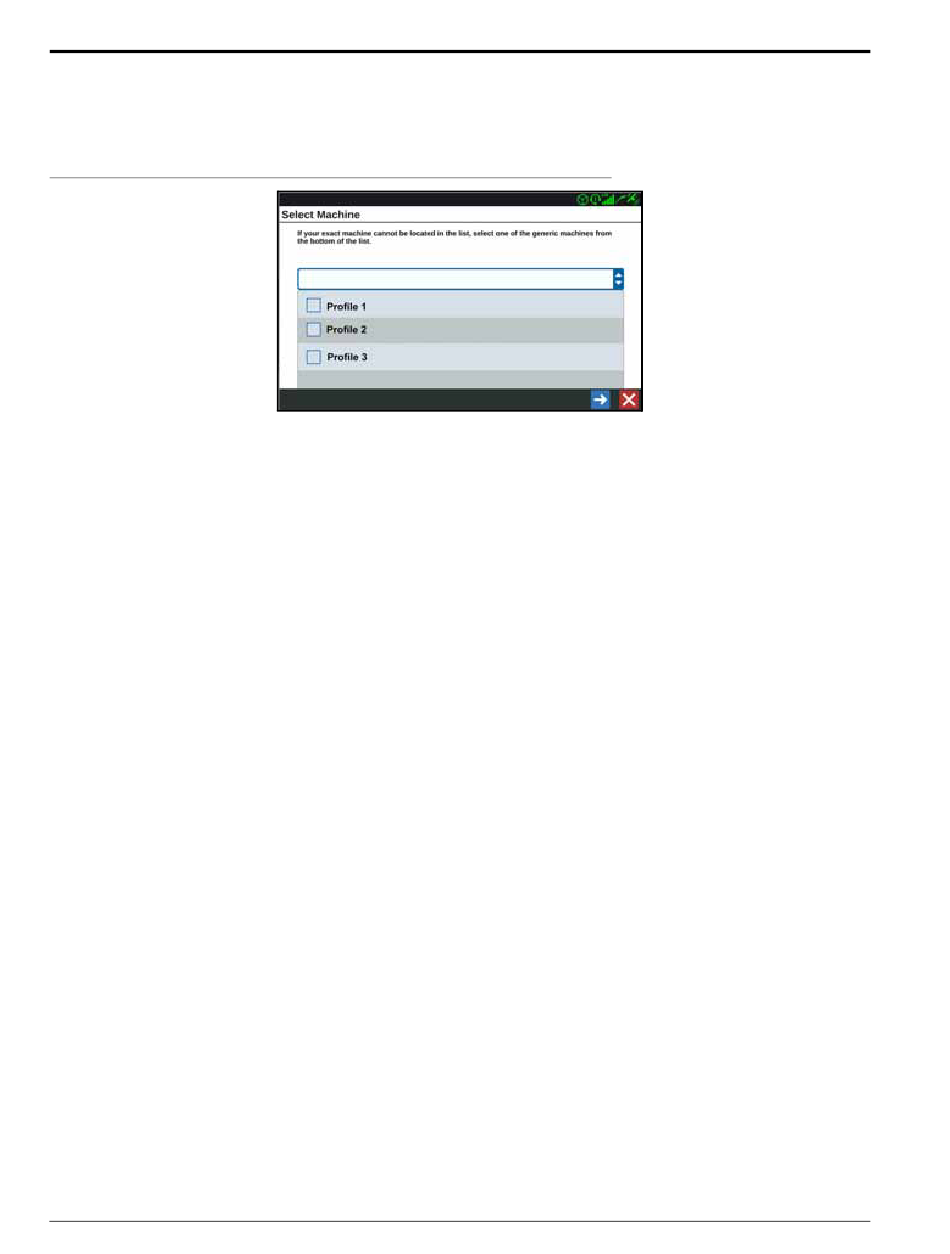

FIGURE 3. Machine Configuration Menu
1. Select the Advanced tab on the left side of the screen.
2. Select Next.
3. Select Reset SmarTrax.
4. Select one of the Profile options from the bottom of the Machine Type list.
5. Select Next.
6. Select New, Load, or Reset.
• New creates a new machine profile.
• Load allows the operator to select an existing profile. Load will not be displayed as an option until a
machine calibration has been performed and a new profile has been set up.
◦
If the profile chosen has previously been calibrated on the machine, the calibration process is
complete.
◦
If the profile chosen has not been calibrated on the machine, the calibration process must be
completed as outlined in the following sections in this manual.
• Reset clears the previous profile settings. Once Reset is selected, the operator must select the machine
from the Machine Type list and the calibration process must be completed as outlined in the following
sections in this manual. Reset will not be displayed as an option until a machine calibration has been
performed and a new profile has been set up.
7. Select Next.

MACHINE-SPECIFIC CONFIGURATION

NOTE: It may be necessary to configure the GPS com port in the field computer to allow GPS
communication with the SmarTrax. Refer to the CR7 Installation and Operation Manual
(P/N 016-0171-664) for information on com port configuration and additional machine measurements
(such as guidance width) that must be entered into the field computer.
Before the SmarTrax system may be enabled, the SmarTrax system must be calibrated for the specific vehicle being
used. Complete the following steps to configure the machine specifications in the CR7 and the SmarTrax system.
14 SmarTrax™ Calibration & Operation Manual
