C 6
HAPTER

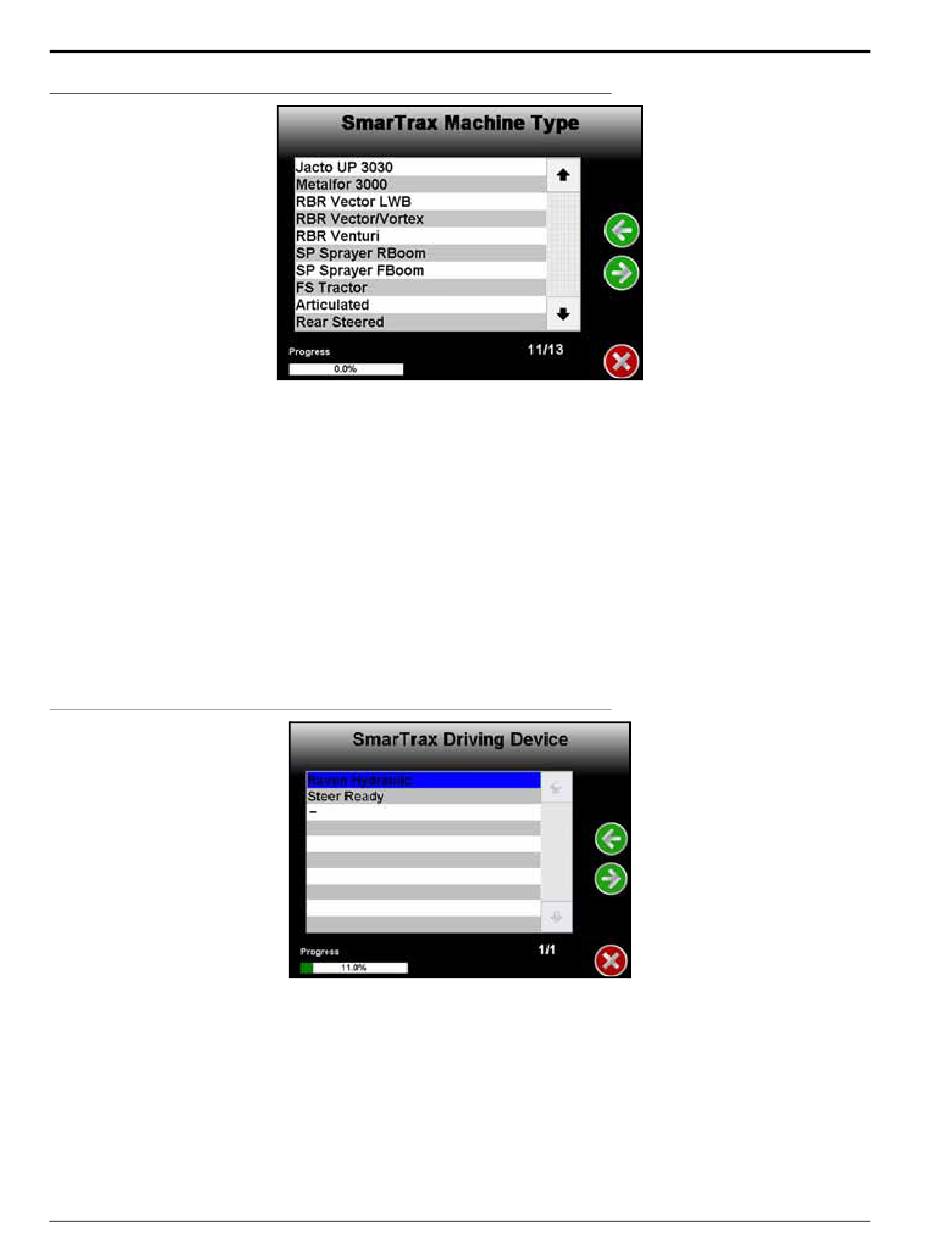

FIGURE 11. Machine Type Screen
1. Select the specific machine type from the Machine Type list. If the specific machine is not listed, choose the
profile that best fits the machine:
• SP Sprayer RBoom - Self-propelled sprayer with a rear boom
• SP Sprayer FBoom - Self-propelled sprayer with a front boom
• FS Tractor - Front-steered tractor
• Articulated
• Rear Steered - Rear-steered machine
NOTE: The Machine Test option should only be selected if calibration problems are encountered. Contact
your local Raven dealer for assistance with using the Machine Test option.
2. Select Next.
FIGURE 12. Driving Device Selection Screen
3. SmarTrax Node Control Systems Only - Select the steering control device:
• Raven Hydraulic - SmarTrax hydraulic valve is controlling the vehicle steering.
• Steer-Ready - An optional steering control system was installed at the factory.
4. Select Next.
