DIAGNOSTICS TAB

Edit

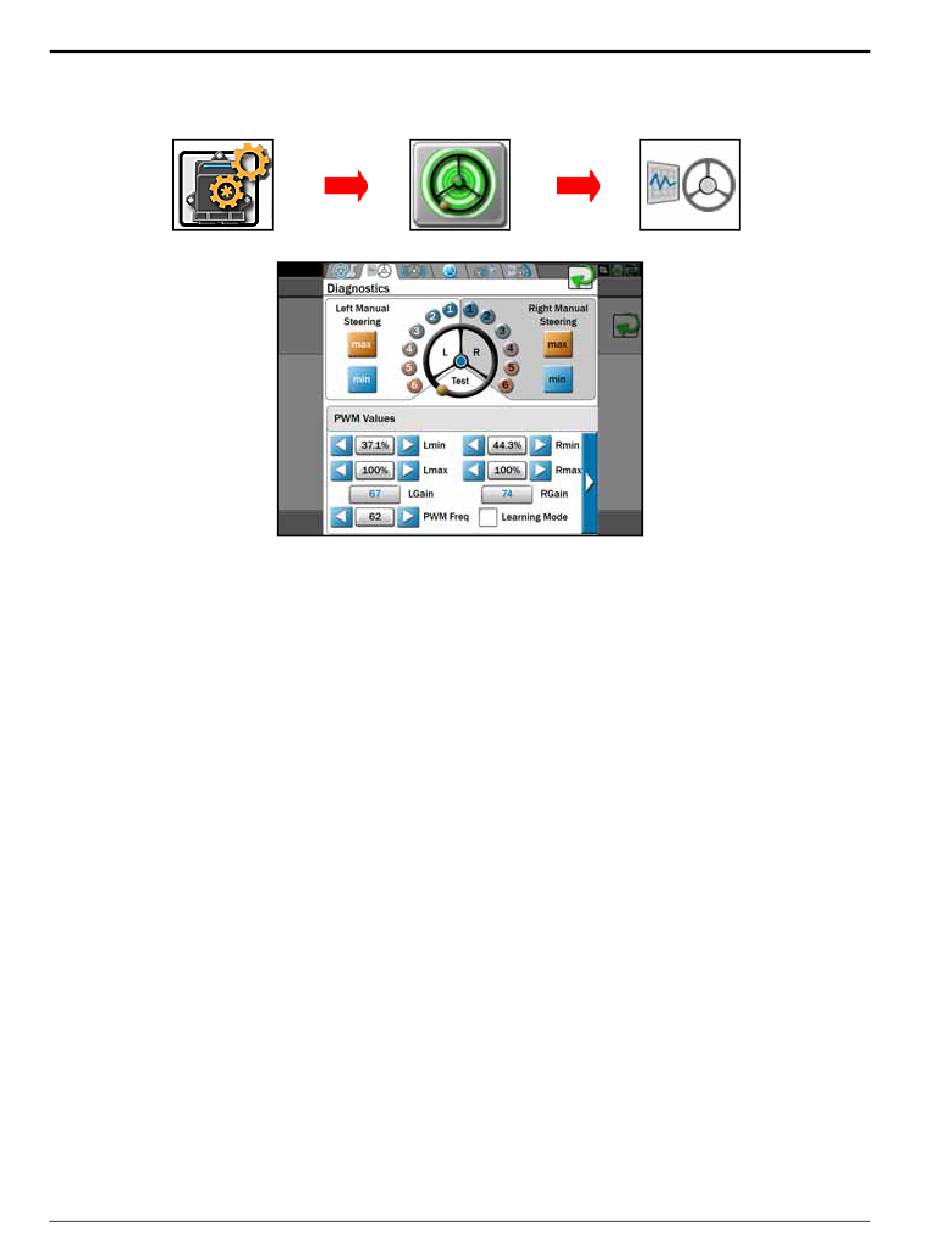

• Left and Right Manual Steer - Used to manually test the SmarTrax system. Select one of the numeric settings
(1 being very low, 6 being very high) positioned around the steering wheel graphic or the Min or Max button to
steer the machine. If it does not respond as expected, the PWM values may need to be adjusted.
• PWM Values - Displays SmarTrax valve PWM minimum, maximum, and gain values. Adjustment of these values
is not typically necessary. Raven Industries recommends leaving these values as configured by the SmarTrax
system unless a technician instructs you to modify the settings.
• Learning Mode - Enable the learning mode feature to allow the system to automatically adjust system
response during operation. This feature allows the SmarTrax system to adjust the PWM valve and Minimum
values during field operation to continuously tune the steering response for monitored field conditions.
Disable learning mode to keep the system from automatically tuning the PWM minimum values and disable
automatic system response adjustment. Raven Industries does not typically recommend enabling learning
mode to avoid unexpected changes to PWM values.
NOTE: If the PWM values are adjusted, the SmarTrax system will no longer automatically adjust the PWM
Minimum values unless the Learning Mode function is enabled again.
