6. Turn the machine around 180° and park with the machine facing the opposite direction and the rear axle in
between the flags or markers.

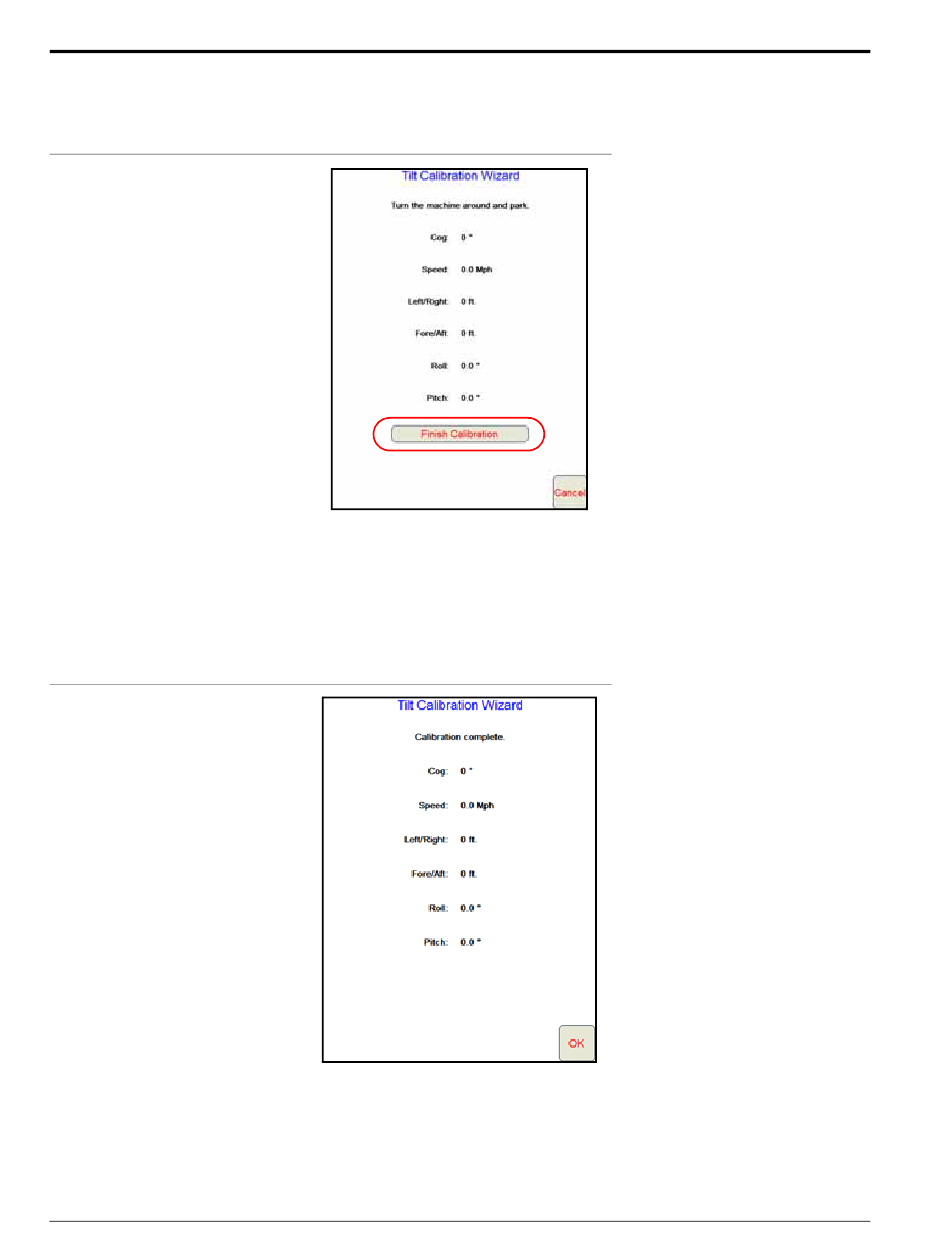

FIGURE 25. Finish Calibration
7. After the calibration is complete and the values on the screen have turned black, select Finish Calibration.
NOTE: In order for the values to turn black, the COG value must be less than 10°, the Left/Right must be less
than 3 ft, and the Fore/Aft must be less than 3 ft. The rear wheels will not necessarily end up aligned
exactly with the markers to get the Fore/Aft number to turn black.
FIGURE 26. Calibration Complete
8. Select OK.
