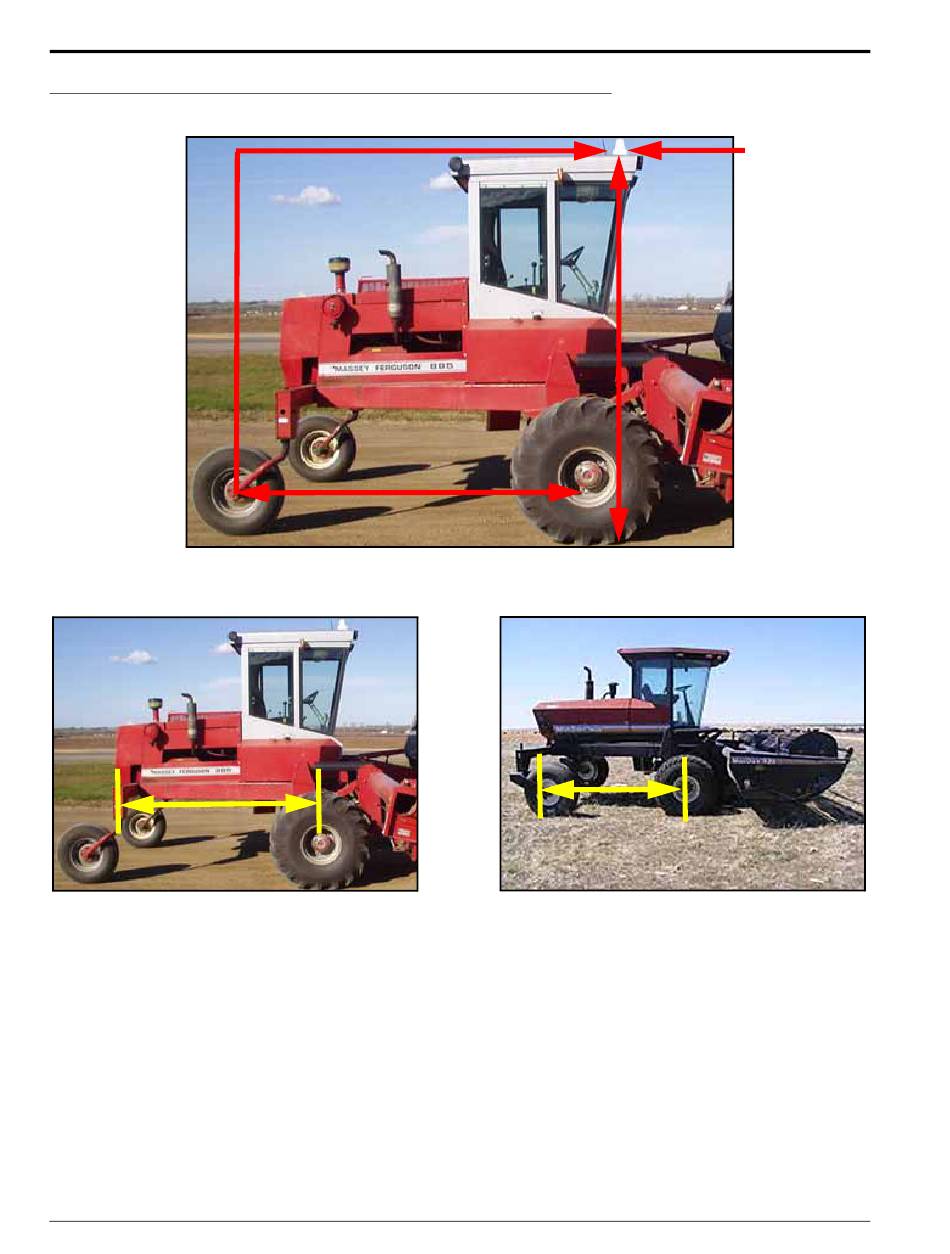

FIGURE 21. Swather Machine Measurements
Wheel base measurement taken from pivot
point instead of the center of the front wheel.
NOTE: For swather machines, the rear wheels MUST be positioned behind the pivot point and pointing
forward to reflect the tire position during normal, straight line operation. To figure the wheelbase
distance, measure from the center of the rear tire to the center of the front tire.
1. To figure the machine's wheel base, measure the distance from the center of the machine's front axle to the
center of the rear axle.
114
CORRECT
ANTENNA FORE/AFT
MEASUREMENT
WHEEL BASE
MEASUREMENT
INCORRECT WHEEL BASE MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
Wheel base measurement taken with wheels
reversed and not in the straight line operation
position.
