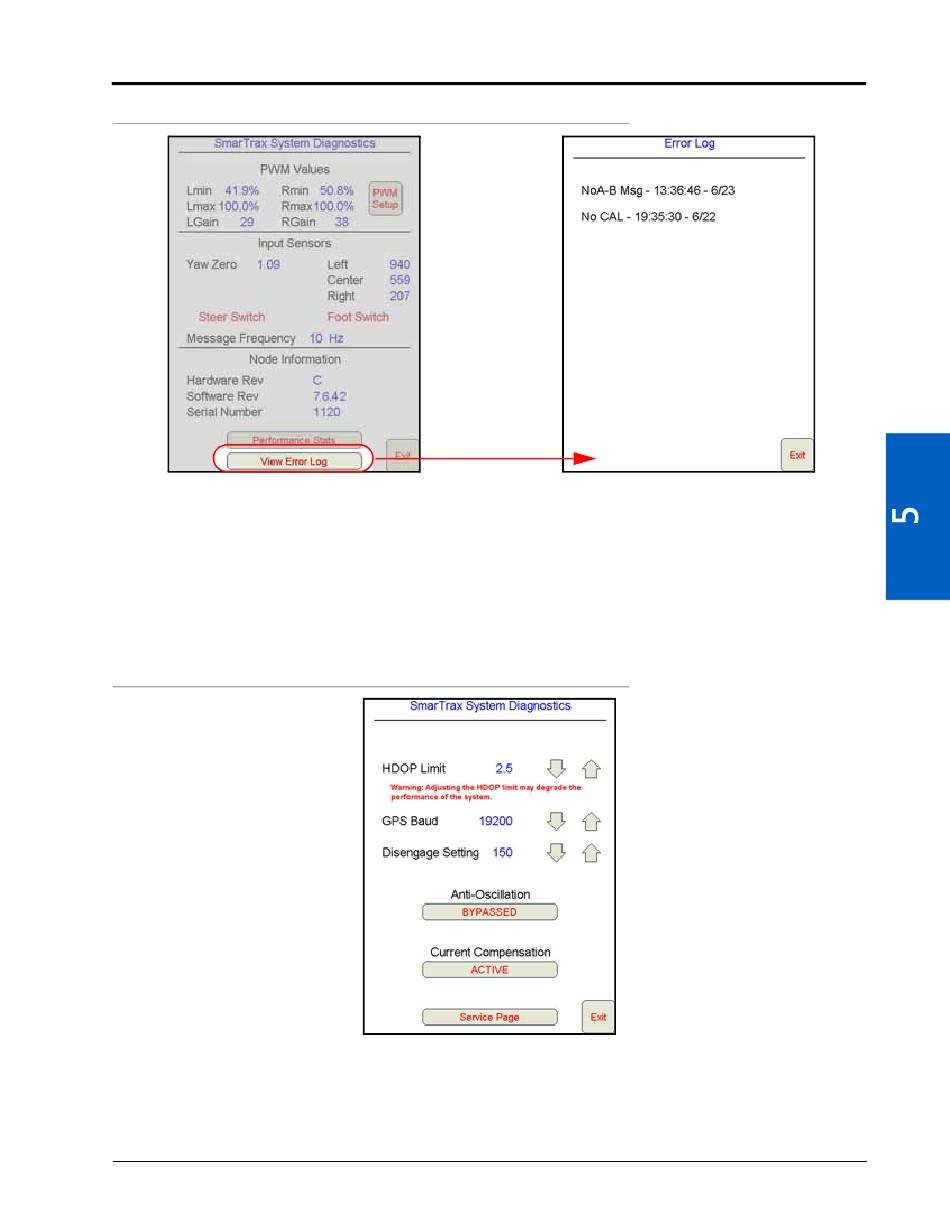

FIGURE 36. SmarTrax Diagnostics and Error Log Screens
• View Error Log - Displays the Error Log screen, which contains the last 10 errors that have appeared in the
SmarTrax status area of the Viper Pro and the time they occurred.
• Exit - Returns to the System Diagnostics screen.

ADV SETUP SCREEN

The Advanced Setup screen contains advanced diagnostic information used to fine-tune the SmarTrax system.
FIGURE 37. Advanced Setup Screen
• HDOP Limit - Horizontal Dilution of Precision (HDOP) is an indicator of the quality of the GPS signal. A high
HDOP indicates that not enough satellites are distributed evenly throughout the sky, diminishing the accuracy
of the guidance system. The number displayed is the maximum number SmarTrax will allow to run. Raising this
number may degrade system performance.
