INTRODUCTION

SOFTWARE COMPATIBILITY

The instructions in this manual apply to Viper Pro software version 3.9 or higher. The SmarTrax node software
version must be 7.6 or higher. If the Viper Pro or node is running with an older version of software, refer to the
Viper Pro Installation & Operation Manual (P/N 016-0171-122) for instructions on updating the field computer and
node software versions.

SMARTRAX STATUS DISPLAY

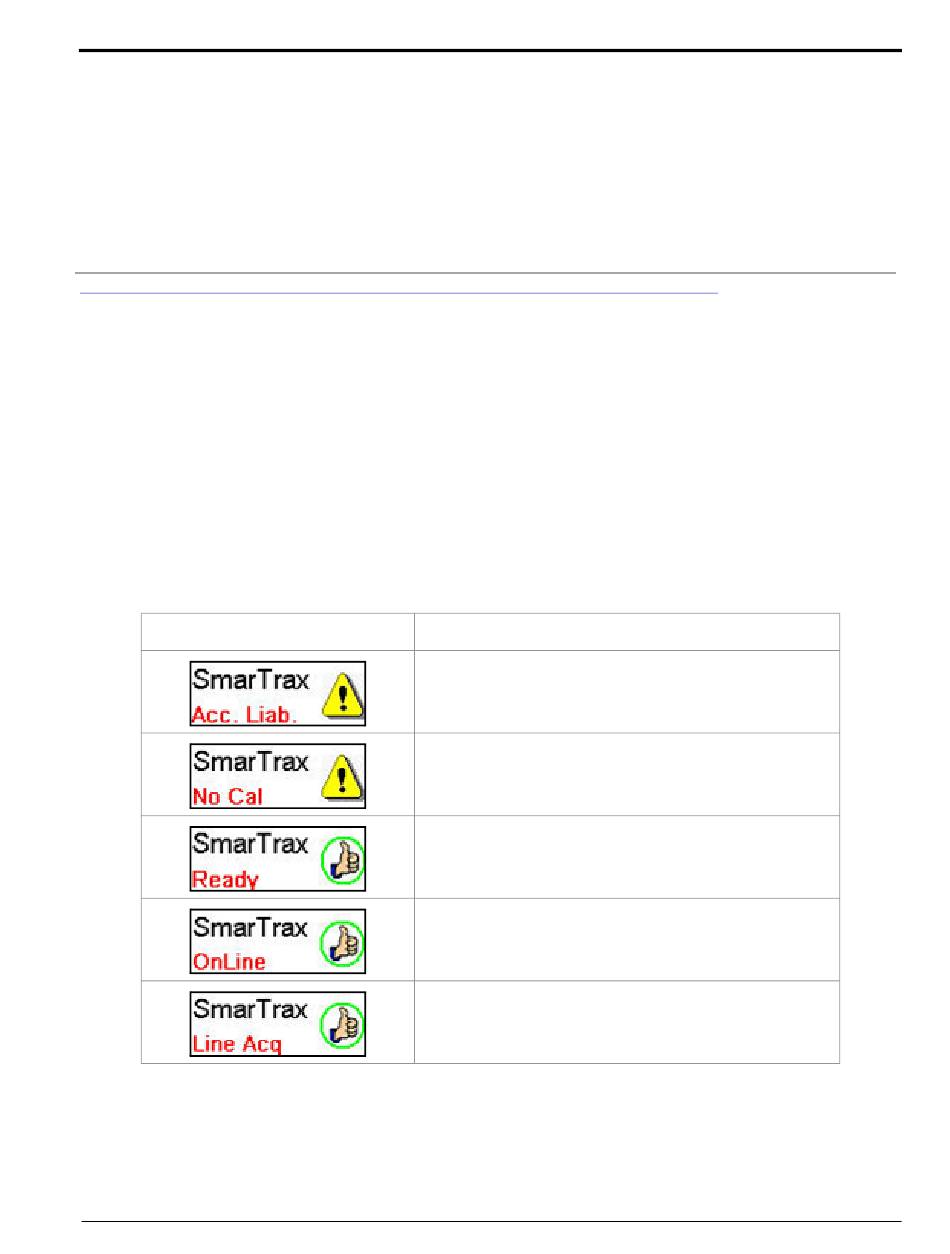

The current status of the SmarTrax system can be determined by the message displayed in the SmarTrax section of
the Viper Pro screen
Display
P/N 016-0171-277 Rev. L
V IPER PRO CALIBRATION AND
C H A P T E R 5
OPERATION
The SmarTrax node is detected, but the operator must
accept responsibility for the operation of the SmarTrax
system.
SmarTrax is detected but not calibrated. The system
must be calibrated before it can be used.
SmarTrax is detected, turned on, and calibrated.
SmarTrax is detected and in operation in the Online
Sensitivity adjustment mode.
SmarTrax is detected and in operation in the Line
Acquisition Aggressiveness adjustment mode.
