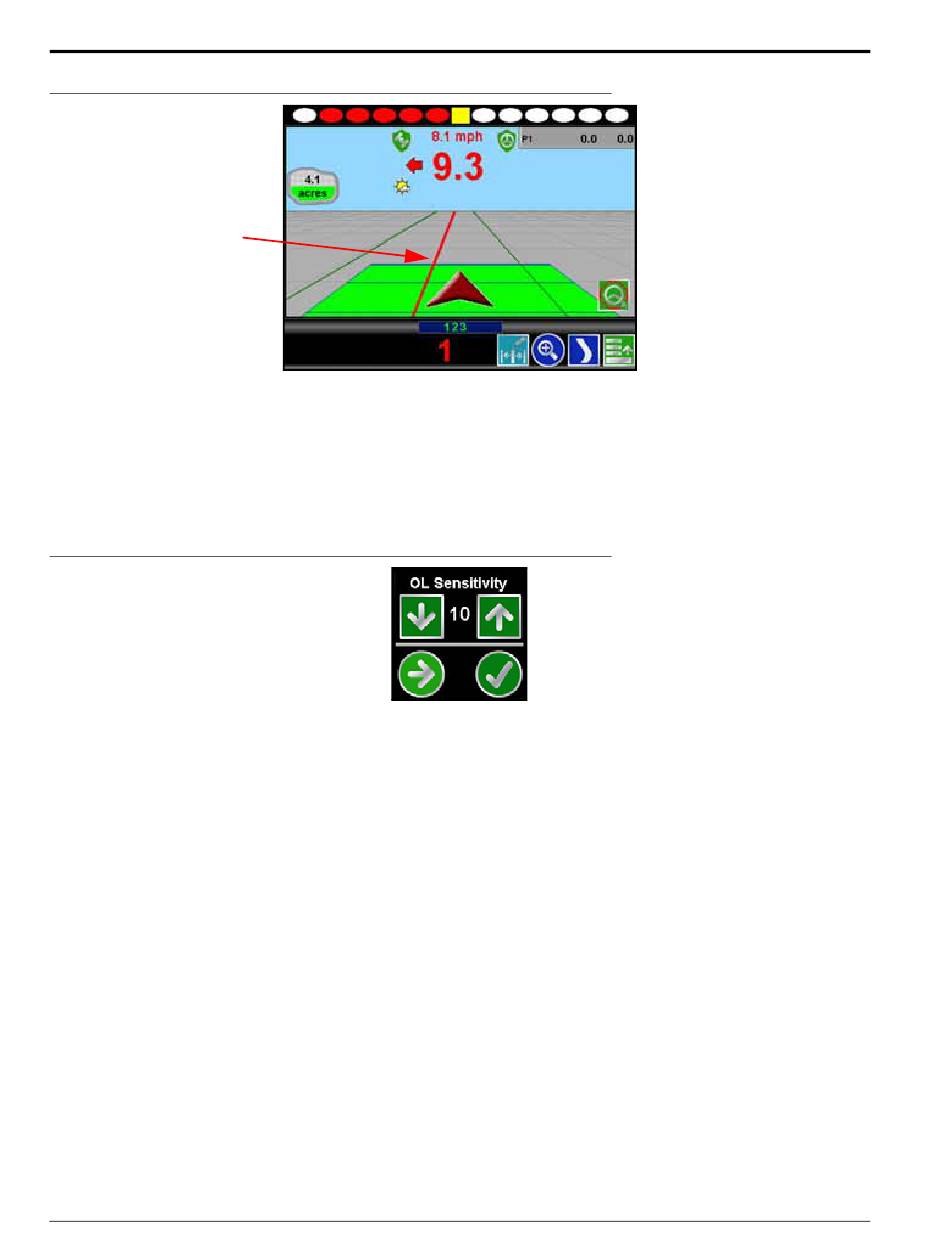

FIGURE 36. LA Mode
Guidance
Line
NOTE: The screen in Figure 27 illustrates an example of a situation in which SmarTrax is operating in LA
mode. This mode will remain active until the machine steers within 24 inches [60 cm] of the displayed
guidance line.

ON-LINE (OL) MODE AND SENSITIVITY

FIGURE 37. OL Mode Indicator
The OL Sensitivity value affects the response of the machine on the displayed guidance line. If the machine tends
to slowly weave across the guidance line and does not remain within 24 inches [60 cm] of the desired path,
increase the OL Sensitivity value one increment at a time, allowing SmarTrax at least 30 seconds between
adjustment to adjust to the change in the value.
Setting the OL Sensitivity value too high may cause the machine to over-correct or become jittery while on the
line. Lowering the value in these situations will allow the vehicle to remain on the desired path.
