antenna is located 3 feet behind the rear axle, the value would be entered as -3. Raven Industries
recommends mounting the antenna in front or even with the rear axle.
6. Select Next.
7. To figure the Antenna Height, measure the distance from the ground to the middle of the GPS antenna.

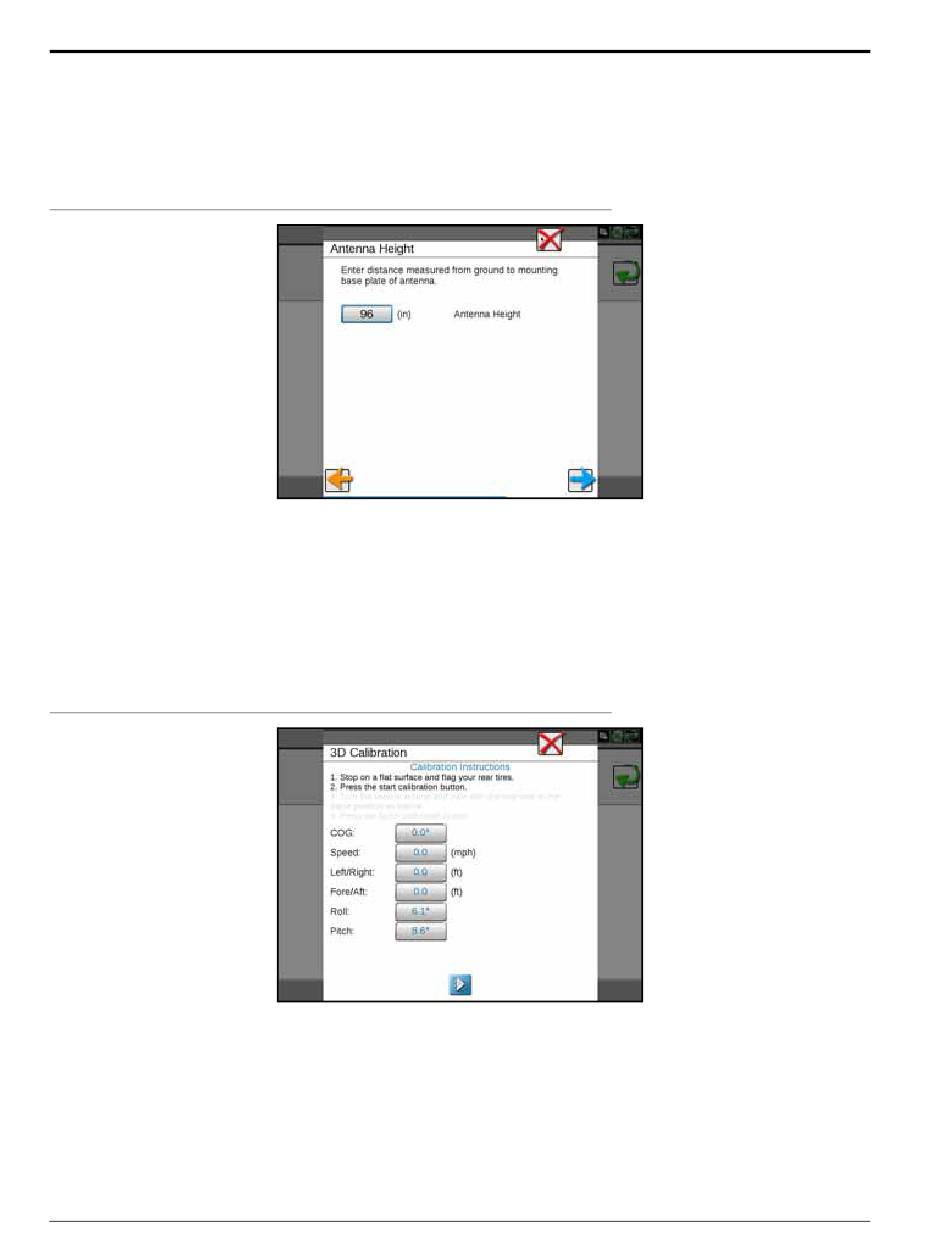

FIGURE 21. Antenna Height Configuration Screen
8. Select the value box to enter the Antenna Height measurement using the on-screen keypad.
9. Select Next.

ENHANCED TILT CALIBRATION

NOTE: The calibration may take a few minutes to complete.
FIGURE 22. Enhanced Tilt Calibration Wizard
1. Drive the machine forward 33 feet and park on a flat surface.
NOTE: The machine must detect a forward motion prior to calibration to determine which direction is
forward.
2. Follow the on-screen instructions to begin the calibration process.
