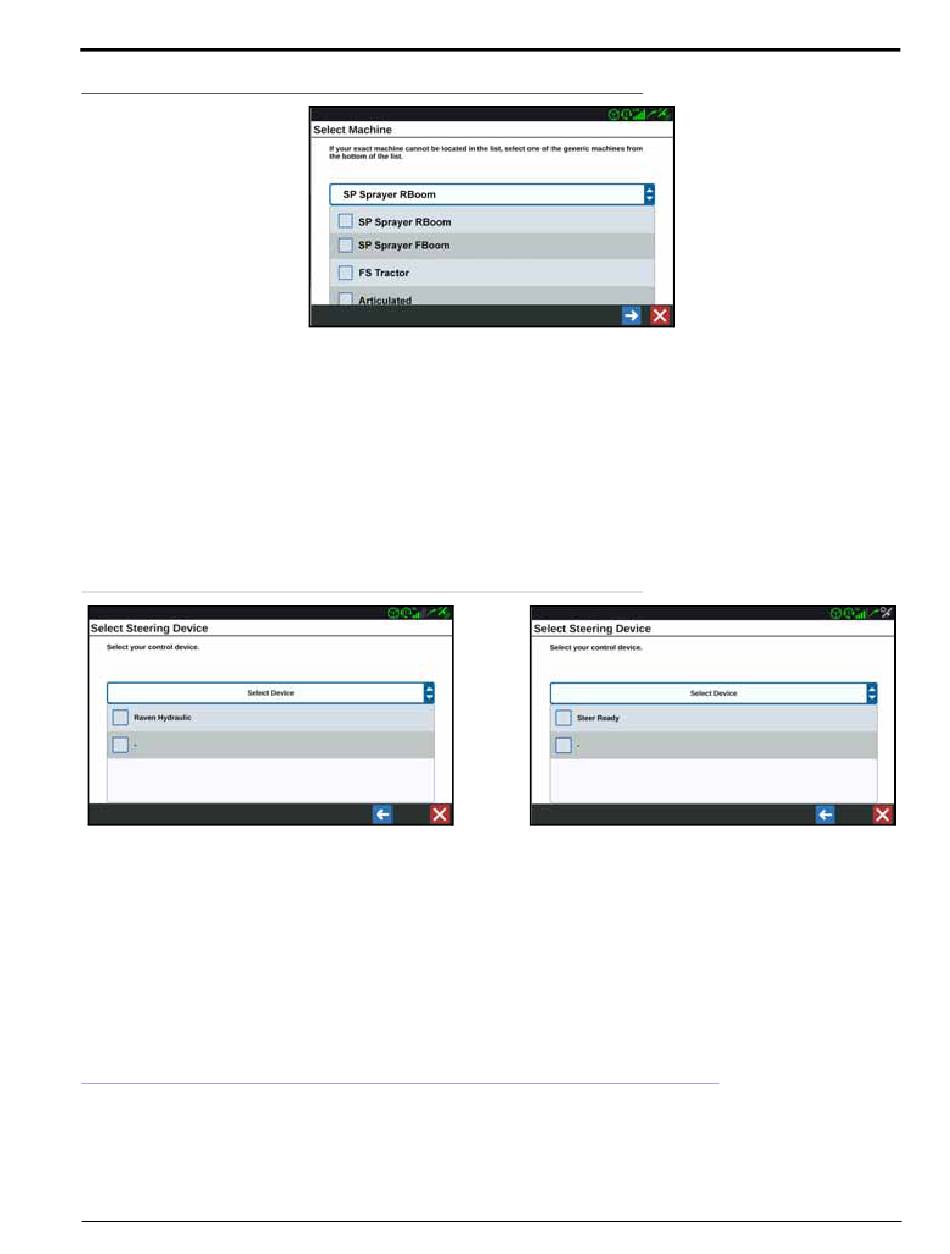

FIGURE 4. Vehicle Selection Screen
1. Select the specific machine type from the Machine Type list. If the specific machine is not listed, choose the
generic machine type that best fits the machine:
• SP Sprayer RBoom - Self-propelled sprayer with a rear boom
• SP Sprayer FBoom - Self-propelled sprayer with a front boom
• FS Tractor - Front-steered tractor
• Articulated
• Rear Steered - Rear-steered machine
2. Select Next.
FIGURE 5. Steering Control Device Selection Screen
NOTE: The steering control device selection screen will display a (-) until a steering control device is selected
from the drop-down box.
3. Select the device being used to control the SmarTrax system.
• Raven Hydraulic - SmarTrax hydraulic valve is controlling the vehicle steering.
• Steer-Ready - SmarTrax is connected to an optional steering control system that was installed at the
factory.
4. Select Next.

CALIBRATE THE SMARTRAX SYSTEM

NOTE: The calibration wizard will be displayed the first time the SmarTrax system is accessed after
installation or any time the Reset SmarTrax option is selected. Refer to "Reset Calibration" on page 35
for additional information on resetting the SmarTrax system.
