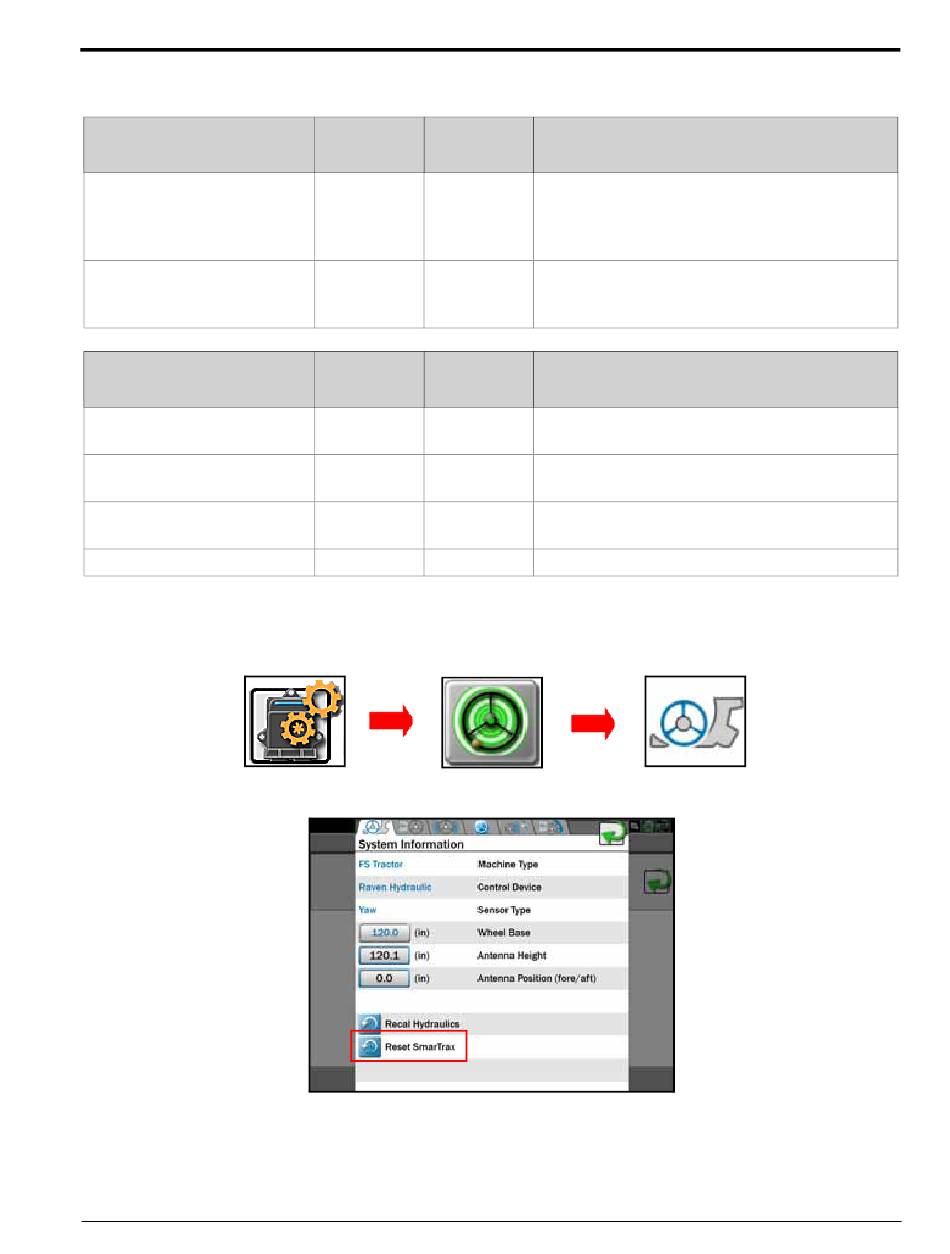

SYSTEM SETTINGS

System Setting
Line Acquisition (LA)
Aggressiveness
OnLine (OL) Sensitivity
System Setting
Zero Yaw
Message Frequency - GGA
and VTG
Message Frequency - ZDA
HDOP

RESET CALIBRATION

Resetting the SmarTrax system calibration will delete all system settings and adjustments that have been
performed. Before resetting the SmarTrax calibration, write down the current system settings for reference
later. Recalibrate the SmarTrax system after the system is reset.
P/N 016-0171-277 Rev. L
Average
Suggested
Setting
Range
10
4 to 16
10
4 to 20
Average
Acceptable
Setting
Range
0
-2 to 2
10 Hz
10 Hz
.3 Hz
.3 to 10 Hz
2.5
Edit
SmarTrax
VIPER 4/4+ CALIBRATION AND OPERATION
The LA Aggressiveness value affects how
quickly the machine steers toward a displayed
guidance line when it is traveling further than
24 inches [60 cm] from the desired path.
The OL Sensitivity value affects the response of
the machine while steering within 24 inches [60
cm] of the displayed guidance line.
Indicates amount error in the internal yaw
sensor while no yaw motion is present.
Displays the frequency of GGA messages from
the GPS receiver.
Displays the frequency of GGA messages from
the GPS receiver.
N/A
Indicates the quality of the GPS signal.
System Information
