C 6
HAPTER

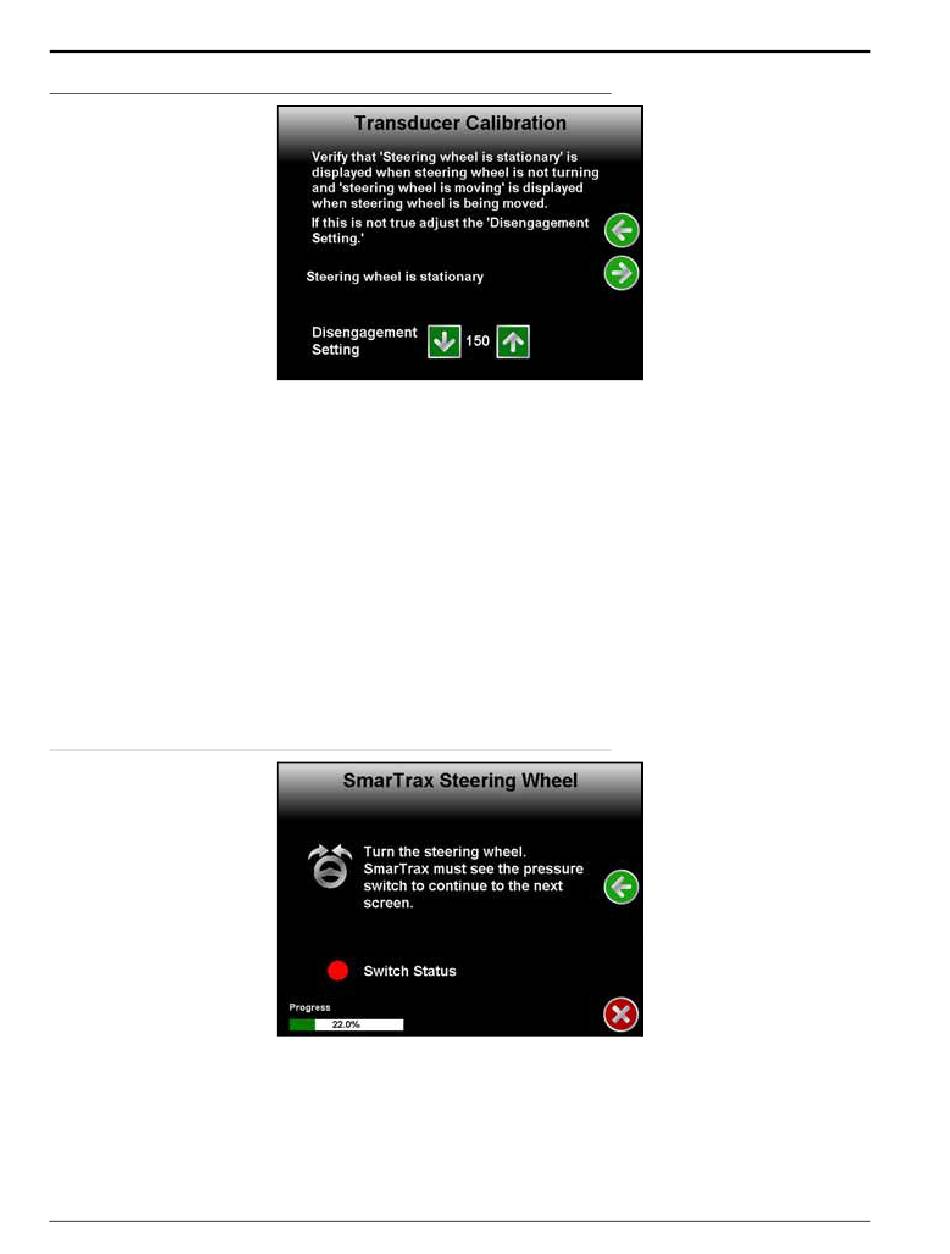

FIGURE 15. Transducer Calibration Verification
3. Verify the field computer displays the correct steering operation message as indicated in Figure 15 above.
NOTE: It may be necessary to increase the disengage setting to require more steering input to disengage
SmarTrax and to decrease the disengage setting to require less steering input.
4. If the system setting is correct, select Next.
5. Proceed to the Engage Switch Calibration and Node Orientation section on page 111 continue with the
SmarTrax system calibration.

SMARTRAX SYSTEMS WITH A FLOW SWITCH OR PRESSURE SWITCH INSTALLED

IMPORTANT: This section applies only to SmarTrax systems utilizing a flow switch or pressure switch to disengage the
SmarTrax system when the steering wheel is turned. If a pressure transducer is installed in the SmarTrax,
system, refer to the SmarTrax Systems with a Pressure Transducer Installed section on page 109 to calibrate
the SmarTrax system.
FIGURE 16. Steering Pressure Switch Calibration Screen
1. Review the on-screen instructions and turn the steering wheel to verify proper operation.
NOTE: The SmarTrax Setup Wizard will automatically advance to the next step in the calibration process
when the steering wheel is turned. If it does not, refer to Chapter 7, Troubleshooting for
troubleshooting information. If the problem persists, contact your local Raven dealer for further
information.
110 SmarTrax™ Calibration & Operation Manual
