The OL Sensitivity value affects the response of the machine while steering on the displayed guidance line. If the
machine tends to slowly weave across the guidance line and does not remain within 24 inches [60 cm] of the
desired path, increase the OL Sensitivity value one increment at a time, allowing SmarTrax at least 30 seconds
between adjustment to adjust to the change in the value.
Setting the OL Sensitivity value too high may cause the machine to over-correct or become jittery while on the
line. Lowering the value in these situations will allow the vehicle to remain on the desired path.

ADVANCED SETUP TOOLS

Advanced setup tools allow fine-turning of the system to adjust for operating conditions.

STX SETUP SCREEN

NOTE: To change the Sensor Type, Machine Type, Control Device, or Wheel Base settings, the SmarTrax
system must be reset and recalibrated.

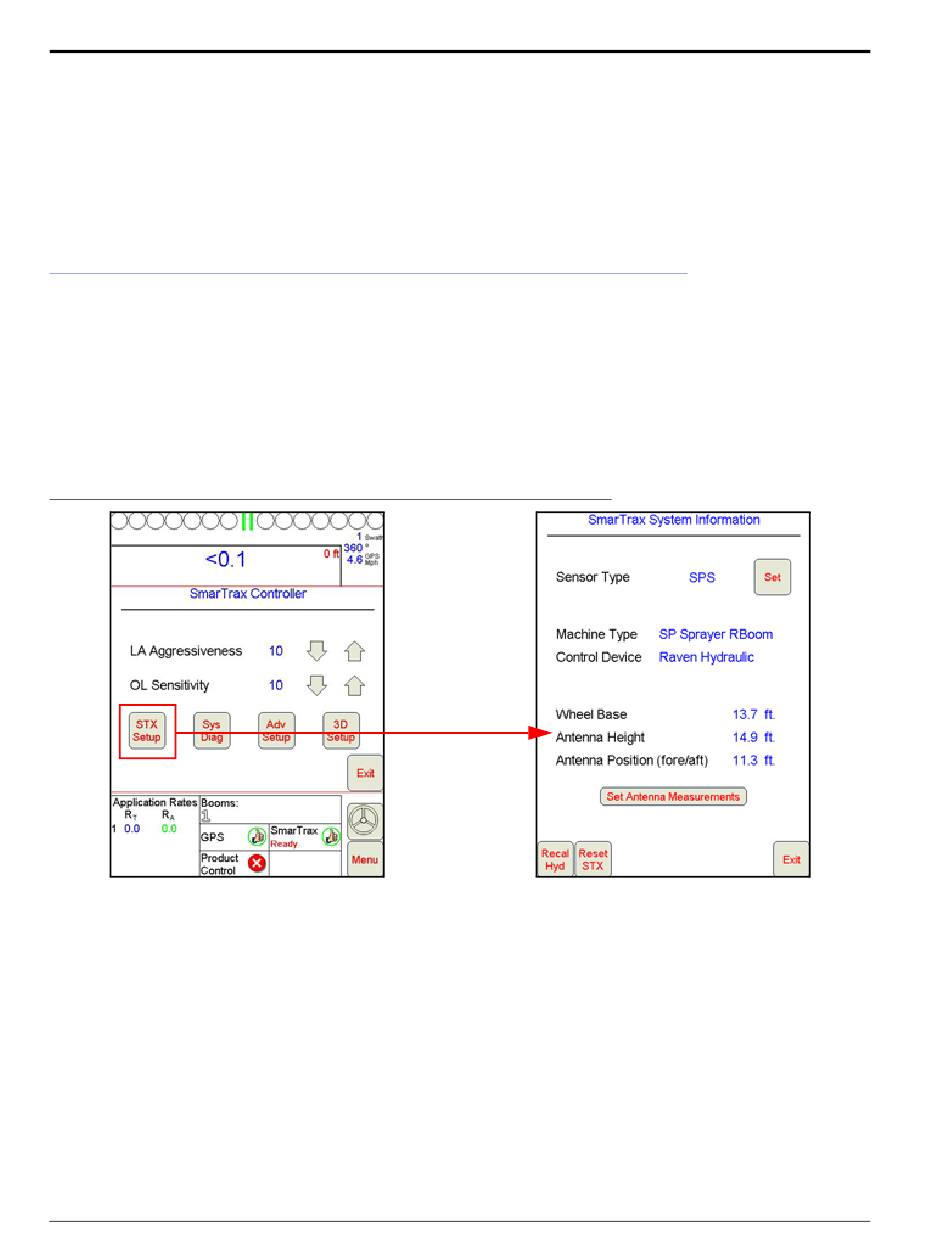

FIGURE 31. SmarTrax Setup Screen
• Sensor Type - Displays the primary sensor type that is providing machine feedback (yaw sensor or wheel angle
sensor/). The sensor type is automatically detected by the system and cannot be changed.
• Machine Type - Displays the machine type or model selected during the SmarTrax Setup Wizard. This
information cannot be changed without resetting the SmarTrax system. Generic machine types which may be
displayed in this area include:
◦ SP Sprayer RBoom - Self-propelled sprayer with a rear boom
◦ SP Sprayer FBoom - Self-propelled sprayer with a front boom
◦ FS Tractor - Front-steered tractor
◦ Articulated
◦ Rear Steered - Rear-steered machine
• Control Device - Displays the steering control device selected during the calibration wizard. This setting
cannot be changed without resetting the SmarTrax system. Available control devices may include:
92 SmarTrax™ Calibration & Operation Manual
