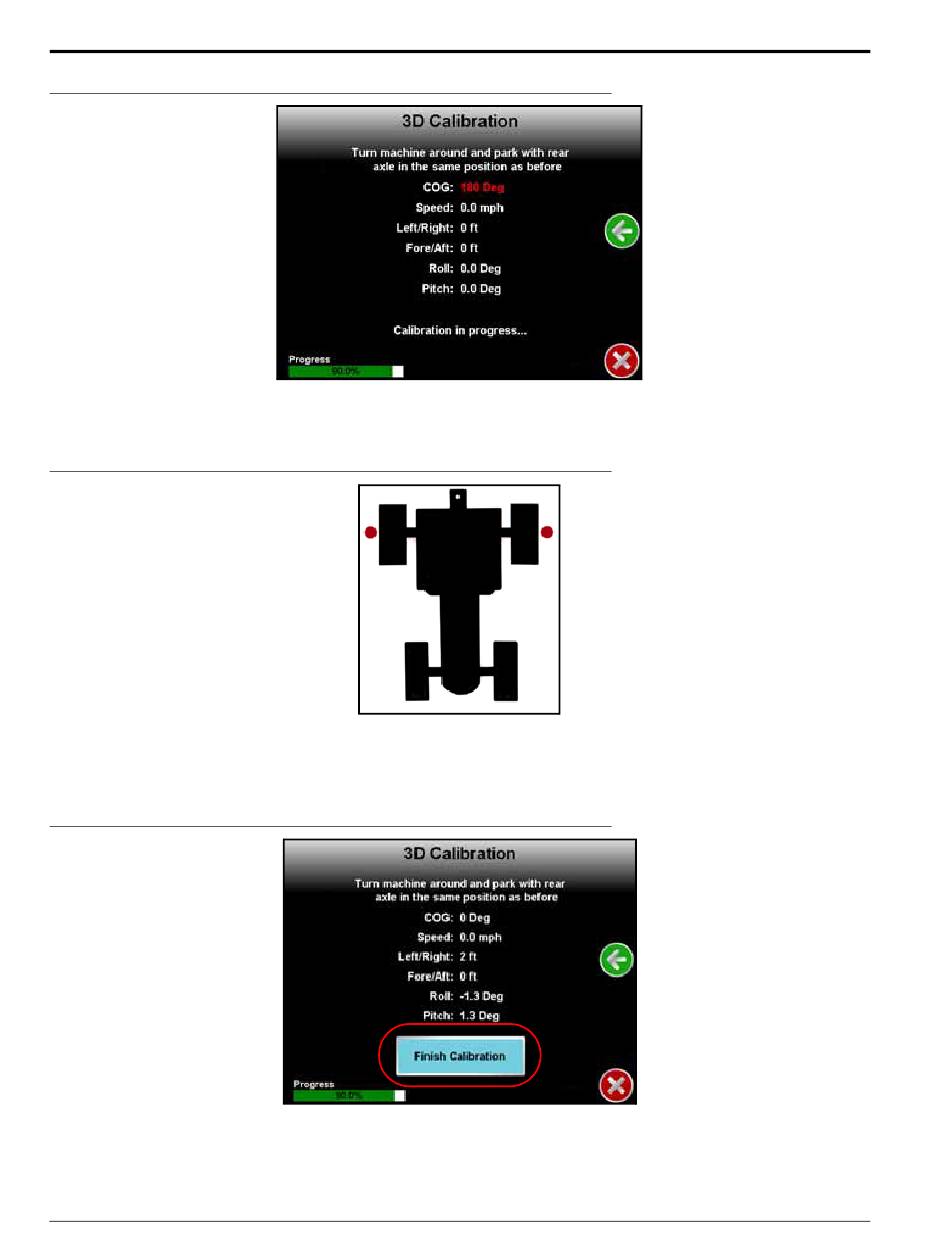

FIGURE 29. Calibration in Progress Screen
NOTE:
The calibration may take a few minutes to complete.
FIGURE 30. Machine Orientation After Tilt Calibration
6. Turn the machine around 180° and park with the machine facing the opposite direction and the rear axle in
between the flags or markers.
FIGURE 31. Finish Calibration
118
SmarTrax™ Calibration & Operation Manual
