WIDGET AND BUTTON DEFINITIONS

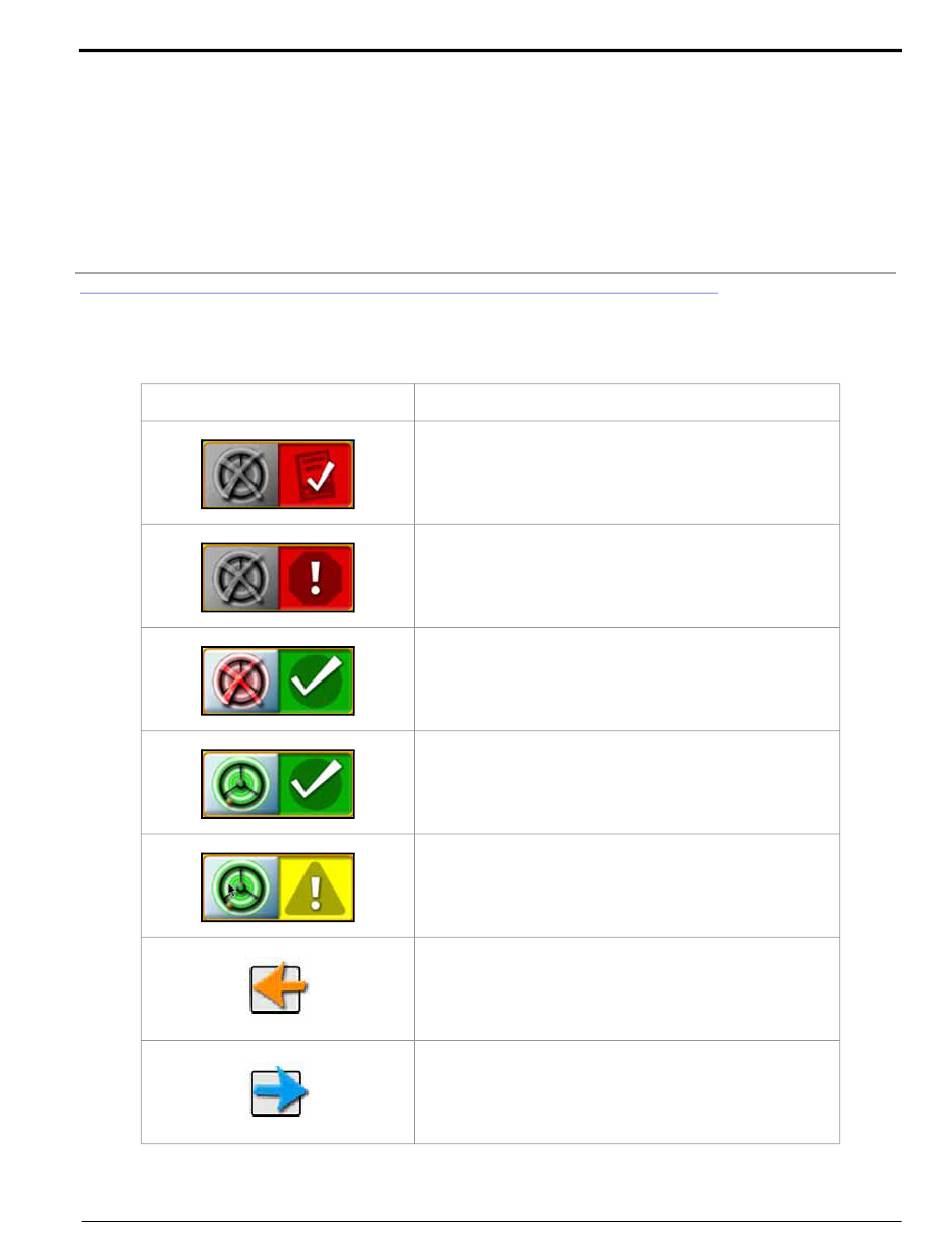

The following are common status or mode information which may be while the SmarTrax system is engaged:
Display
P/N 016-0171-277 Rev. L
V IPER 4/4+ CALIBRATION AND
C H A P T E R 4
OPERATION
The SmarTrax node is detected, but the operator must
accept responsibility for the operation of the SmarTrax
system.
No A-B path or guidance line has been met.
SmarTrax is detected, turned on, and calibrated.
SmarTrax is detected and in operation in the Online or
Line Acquisition Aggressiveness mode. Adjusting these
settings will affect performance while in this mode. Press
and hold to determine in which mode the system is
operating.
Vehicle speed is too fast or too slow for SmarTrax
operation and the system will disengage.
Previous - Returns the Viper 4 display to the previous
screen in the setup process.
Next - Saves the changes made to the SmarTrax system
and proceeds to the next step in the setup process.
