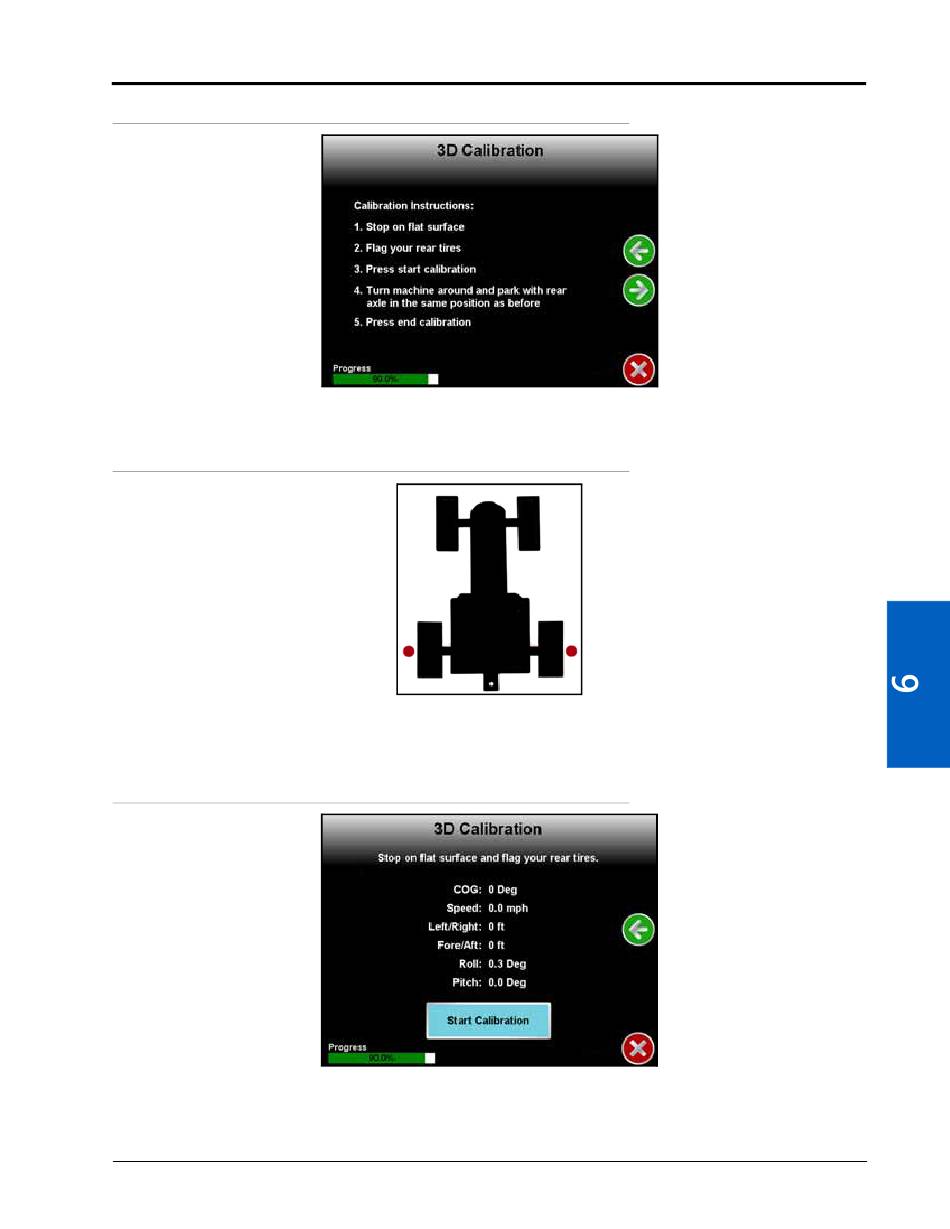

FIGURE 26. Enhanced Tilt Calibration Wizard
2. Follow the on-screen instructions to begin the calibration process.
FIGURE 27. Machine's Rear Axle Marked Before Enhanced Tilt Calibration
3. Place flags or markers on the outside of each rear wheel aligned with the axle.
4. Select Next.
FIGURE 28. Tilt Calibration Screen
5. Select Start Calibration. The following screen will appear:
