7. After the calibration is complete and the values on the screen have turned white, select Finish Calibration.
NOTE: In order for the values to turn white, the COG value must be less than 10°, the Left/Right must be less
than 3 ft, and the Fore/Aft must be less than 3 ft. The rear wheels will not necessarily end up aligned
exactly with the markers to get the Fore/Aft number to turn white.

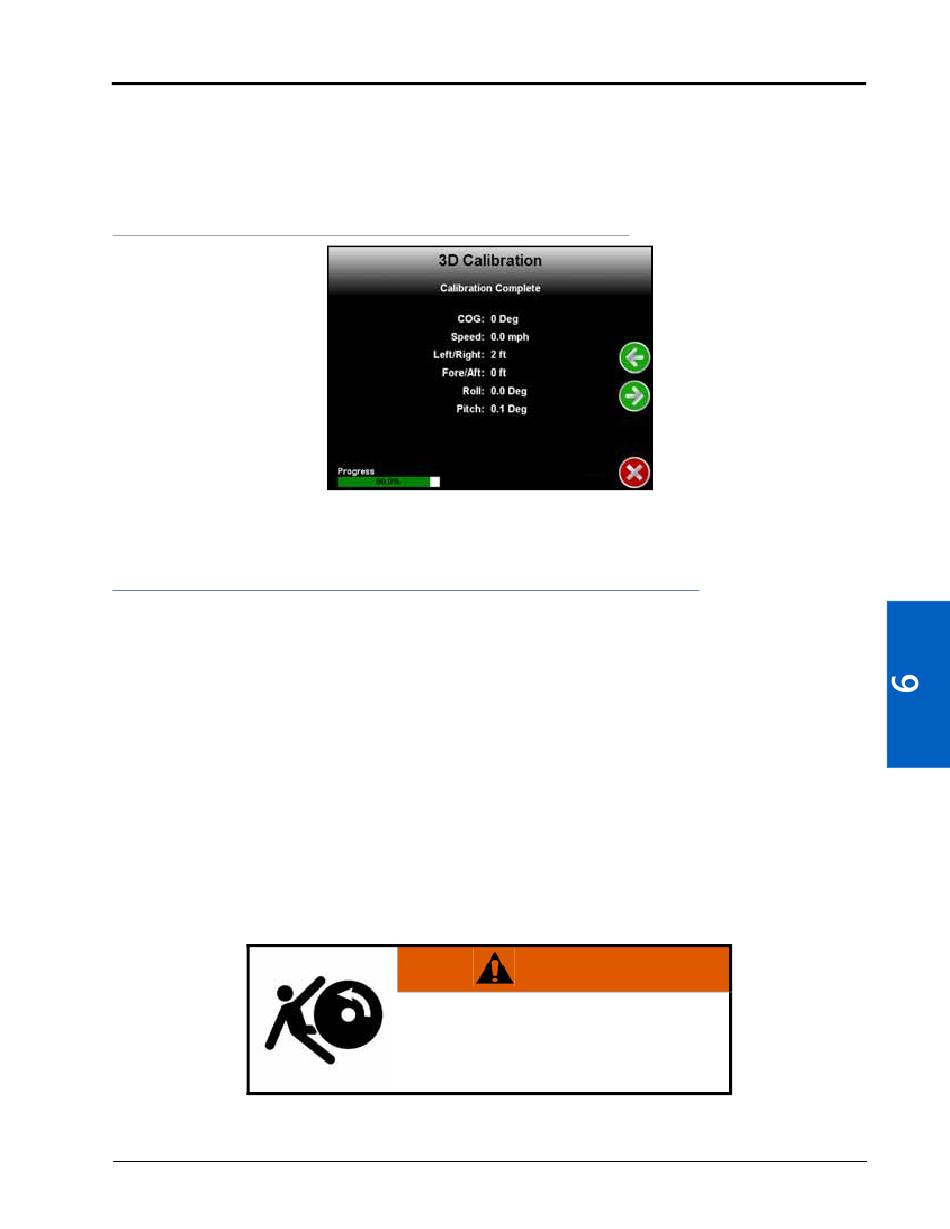

FIGURE 32. Calibration Complete
8. Select Next.

CALIBRATE THE MACHINE'S STEERING SYSTEM

NOTE: On certain steering-ready machines, it may not be necessary to calibrate the steering system. If
calibration is not required for the machine's configuration, proceed to "Advanced Setup and
Diagnostics" on page 123.
After the initial calibration of the SmarTrax system is complete, it is necessary to calibrate the machine's steering
system. This allows the SmarTrax system to learn the hydraulic capabilities of the machine for optimal steering
performance in the field.
Before beginning the machine's steering system calibration, ensure:
• The booms are racked on self-propelled units.
• There are no implements connected to the hitch.
• The machine's engine is running at the normal operating RPMs.
• The machine's measurements are correctly entered into the field computer.
P/N 016-0171-277 Rev. L
ENVIZIO PRO AND CRUIZER II CALIBRATION AND OPERATION
WARNING
The machine's wheels will turn automatically. Be
sure the area around the vehicle is clear of
people and equipment before engaging the
steering system.
119
