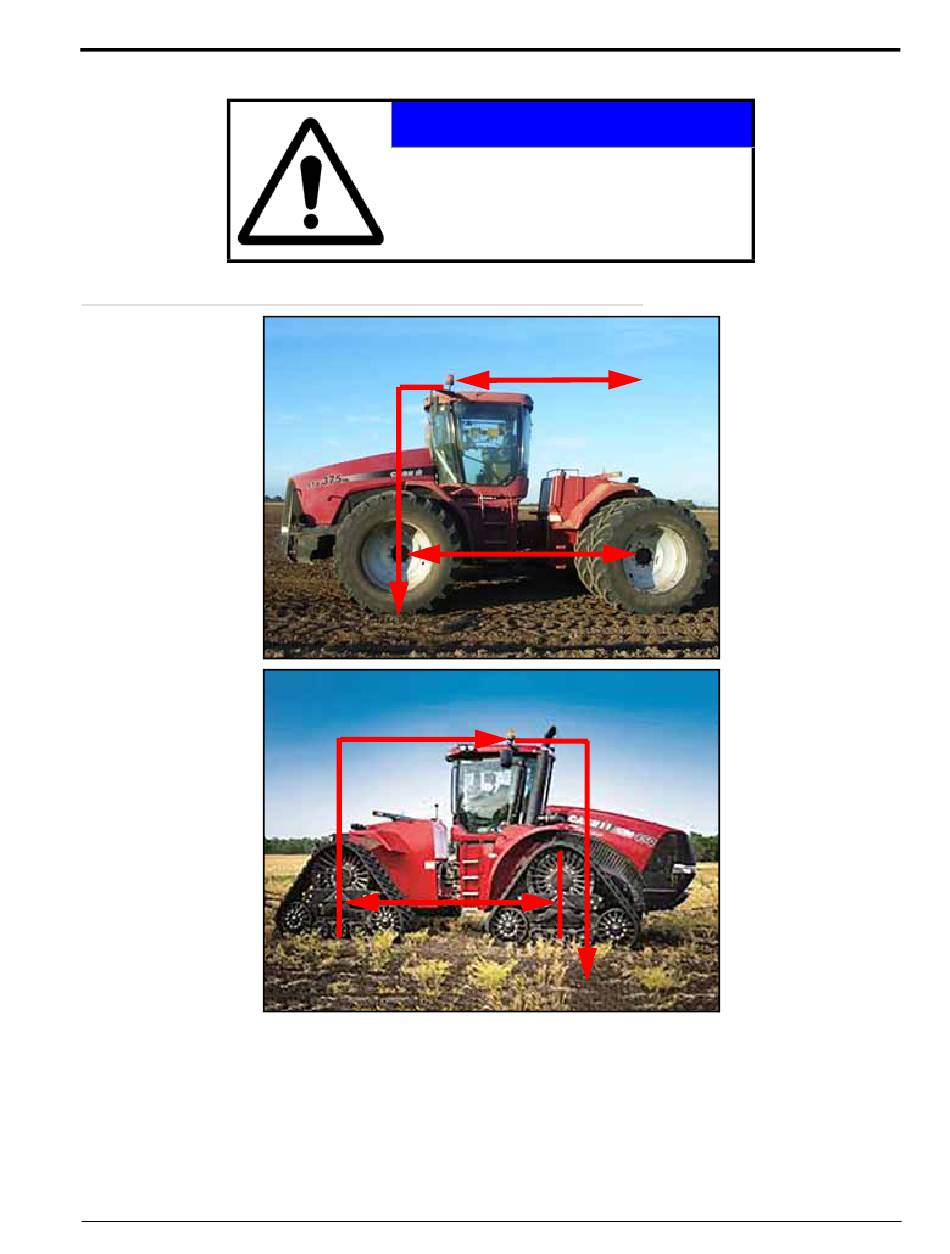

FIGURE 17. Articulated Machine Measurements
NOTE: For articulated machines, measure from the center of the front tire to the center of the rear tire on
both sides of the machine. Add the values together and divide the number by two to find the
average.
P/N 016-0171-277 Rev. L
The Wheel Base, Antenna Position, and Antenna
Height values are critical to the operation of the
SmarTrax system. Measure these dimensions
accurately to ensure optimal SmarTrax system
performance!
ANTENNA
HEIGHT
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
WHEEL BASE
MEASUREMENT
VIPER 4/4+ CALIBRATION AND OPERATION
NOTICE
ANTENNA FORE/AFT
MEASUREMENT
WHEEL BASE
MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
