Block Relative
Name Index
STB 102 Coef A1
STB 103 Coef A2
The density correction calculation can be set using the following procedure.
(1) Set to the use of the temperature-corrected density by referring to Subsection 5.1.9.
(2) Set the function of the external temperature input function to the temperature by referring to
Section 5.4.
(3) Set the range high limit and low limit of the external temperature input by referring to Section
5.4.
(4) Set the standard temperature and standard density by referring to Subsections 5.1.9 and
5.1.10.
(5) Set the primary and secondary compensating rates of the compensation formula.
NOTE
The density correction calculation is performed only when items (1) and (2) above are specified.
If they are not specified, the density is assigned to the fixed value that is specified in Subsection
5.1.9.

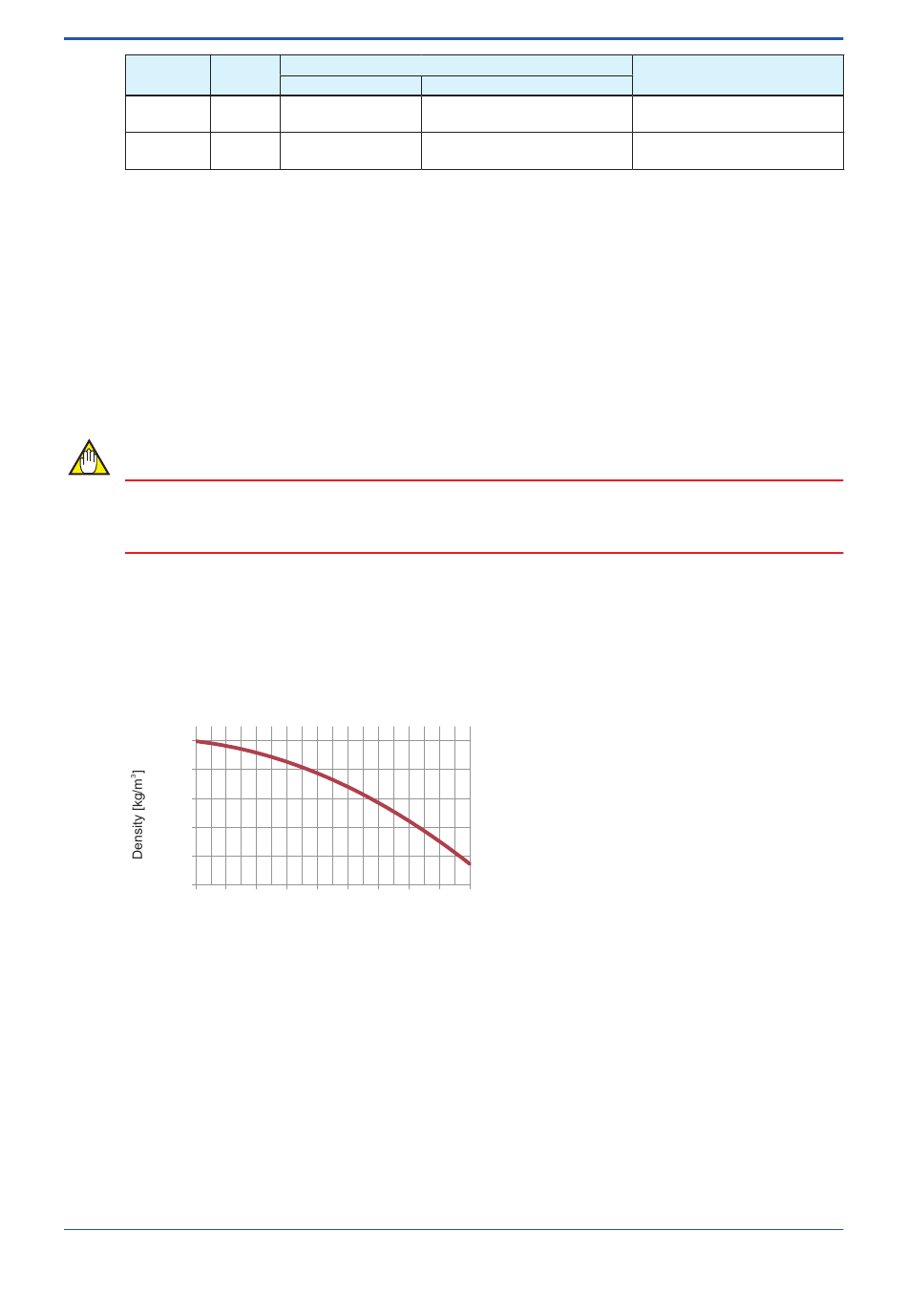

Example:
If the water density is corrected based on the temperature in the following conditions, the result is
obtained as shown below.
Ext temperature input range = 0.0 to 100.0°C,
Standard density = 1000 kg/m
Standard temperature = 20°C,
Primary compensating rate = -0.02, Secondary compensating rate = -3.9
1000
990
980
970
960
950
10 20 30 40
Temperature [°C]
Parameter
Display F
OUNDATION
Temperature Coef A1
Temperature Coef A2
,
3
50 60 70 80 90 100
F0424.ai
<5. Functions>
Description
Fieldbus
Specifies the primary
compensating rate.
Specifies the secondary
compensating rate.
87
