YOKOGAWA ADMAG TI Series Read Me First

User's
Manual
IM 01E21A21-01Z1
This manual contains important information for safe operation of this instrument and common
information among user's manuals on this instrument. Should thoroughly read this manual prior
to other manuals before using this Instrument.
n Regarding This User's Manual
• This manual should be provided to the end user.
• The contents of this manual are subject to change
without prior notice.
• All rights reserved. No part of this manual may be
reproduced in any form without YOKOGAWA's written
permission.
• YOKOGAWA makes no warranty of any kind with
regard to this manual, including, but not limited to,
implied warranty of merchantability and fi tness for a
particular purpose.
• If any question arises or errors are found, or if any
information is missing from this manual, inform the
nearest YOKOGAWA sales offi ce.
• The specifi cations covered by this manual are limited
to those for the standard type under the specifi ed
model number break-down and do not cover custom-
made instruments.
• Note that changes in the specifi cations, construction,
or component parts of the instrument may not
immediately be refl ected in this manual at the time of
change, provided that postponement of revisions will
not cause diffi culty to the user from a functional or
performance standpoint.
• This manual is intended for the following personnel;
Engineers responsible for installation and wiring of
the instrument.
Personnel responsible for normal daily operation and
maintenance of the instrument.
• To ensure correct use, read this manual and the
manuals, which are listed in "About Digital User's
Manual", thoroughly before starting operation. Read
the general specifi cations as listed in "About Digital
User's Manual" for its specifi cation.
n For Safe Use of Product
• For the protection and safe use of the instrument and
the system in which this instrument is incorporated,
be sure to follow the instructions and precautions
on safety that is stated in this manual whenever
you handle the instrument. Take special note that if
you handle the instrument in a manner that violated
these instructions, the protection functionality of
the instrument may be damaged or impaired. In
such cases, YOKOGAWA shall not be liable for any
indirect or consequential loss incurred by either using
or not being able to use the Instrument.
• This instrument conforms to IEC safety class I (with
Protective grounding terminal), Installation Category
(Overvoltage Category) II, No Measurement Category
("O"(Other)), Micro Pollution degree 2, Macro
Pollution degree 4. See the table in "Conform to
IEC61010(-1 and -30)-2010" for models conforming
to IEC61010(-1 and -30)-2010.

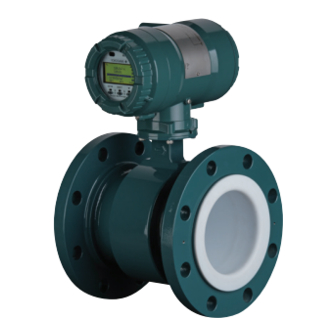

ADMAG TI Series
AXG/AXW Magnetic Flowmeter
Read Me First
• This instrument conforms to EN61326-1, EN61326-2-
3, EN61000-3-2, and EN61000-3-3 (EMC standard).
• This instrument is an EN61326-1 (EMC standard),
Class A (for use in commercial, industrial, or business
environments).
• This instrument is complied with IP66 and IP67 in the
EN60529.
YOKOGAWA assumes no liability for the customer's
failure to comply with these requirements.
• This instrument is designed for indoor and outdoor
use.
n Precautions Related to the
Protection, Safety, and Alteration of
the Instrument
The following safety symbol marks are used in this
manual and instrument.
A WARNING sign denotes a hazard. It calls attention
to procedure, practice, condition or the like, which, if
not correctly performed or adhered to, could result in
injury or death of personnel.
A CAUTION sign denotes a hazard. It calls attention
to procedure, practice, condition or the like, which,
if not correctly performed or adhered to, could result
in damage to or destruction of part or the entire
instrument.
An IMPORTANT sign denotes that attention is
required to avoid damage to the instrument or
system failure.
A NOTE sign denotes information necessary for
essential understanding of operation and features.
All Rights Reserved. Copyright © 2017, Yokogawa Electric Corporation.
Subject to change without notice.
WARNING
CAUTION
IMPORTANT
NOTE
1st Edition June 2017 (KP)
IM 01E21A21-01Z1
