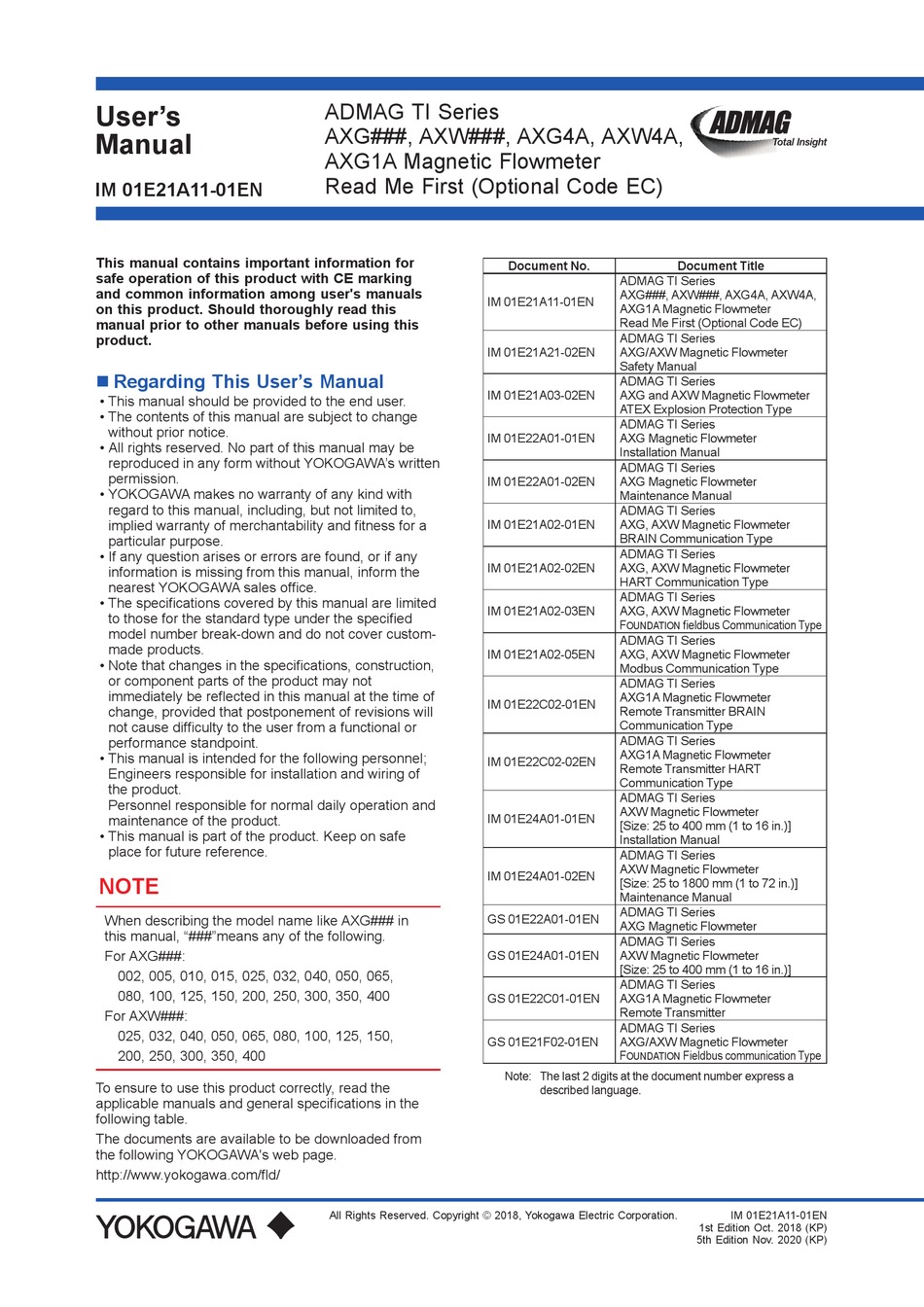

User's
Manual
IM 01E21A11-01EN
This manual contains important information for
safe operation of this product with CE marking
and common information among user's manuals
on this product. Should thoroughly read this
manual prior to other manuals before using this
product.
n Regarding This User's Manual
• This manual should be provided to the end user.
• The contents of this manual are subject to change
without prior notice.
• All rights reserved. No part of this manual may be
reproduced in any form without YOKOGAWA's written
permission.
• YOKOGAWA makes no warranty of any kind with
regard to this manual, including, but not limited to,
implied warranty of merchantability and fi tness for a
particular purpose.
• If any question arises or errors are found, or if any
information is missing from this manual, inform the
nearest YOKOGAWA sales offi ce.
• The specifi cations covered by this manual are limited
to those for the standard type under the specifi ed
model number break-down and do not cover custom-
made products.
• Note that changes in the specifi cations, construction,
or component parts of the product may not
immediately be refl ected in this manual at the time of
change, provided that postponement of revisions will
not cause diffi culty to the user from a functional or
performance standpoint.
• This manual is intended for the following personnel;
Engineers responsible for installation and wiring of
the product.
Personnel responsible for normal daily operation and
maintenance of the product.
• This manual is part of the product. Keep on safe
place for future reference.
NOTE
When describing the model name like AXG### in
this manual, "###"means any of the following.
For AXG###:
002, 005, 010, 015, 025, 032, 040, 050, 065,
080, 100, 125, 150, 200, 250, 300, 350, 400
For AXW###:
025, 032, 040, 050, 065, 080, 100, 125, 150,
200, 250, 300, 350, 400
To ensure to use this product correctly, read the
applicable manuals and general specifi cations in the
following table.
The documents are available to be downloaded from
the following YOKOGAWA's web page.
http://www.yokogawa.com/fld/
ADMAG TI Series
AXG###, AXW###, AXG4A, AXW4A,
AXG1A Magnetic Flowmeter
Read Me First (Optional Code EC)
IM 01E21A11-01EN
IM 01E21A21-02EN
IM 01E21A03-02EN
IM 01E22A01-01EN
IM 01E22A01-02EN
IM 01E21A02-01EN
IM 01E21A02-02EN
IM 01E21A02-03EN
IM 01E21A02-05EN
IM 01E22C02-01EN
IM 01E22C02-02EN
IM 01E24A01-01EN
IM 01E24A01-02EN
GS 01E22A01-01EN
GS 01E24A01-01EN
GS 01E22C01-01EN
GS 01E21F02-01EN
All Rights Reserved. Copyright © 2018, Yokogawa Electric Corporation.
Document No. Document Title
ADMAG TI Series
AXG###, AXW###, AXG4A, AXW4A,
AXG1A Magnetic Flowmeter
Read Me First (Optional Code EC)
ADMAG TI Series
AXG/AXW Magnetic Flowmeter
Safety Manual
ADMAG TI Series
AXG and AXW Magnetic Flowmeter
ATEX Explosion Protection Type
ADMAG TI Series
AXG Magnetic Flowmeter
Installation Manual
ADMAG TI Series
AXG Magnetic Flowmeter
Maintenance Manual
ADMAG TI Series
AXG, AXW Magnetic Flowmeter
BRAIN Communication Type
ADMAG TI Series
AXG, AXW Magnetic Flowmeter
HART Communication Type
ADMAG TI Series
AXG, AXW Magnetic Flowmeter
F
OUNDATION
ADMAG TI Series
AXG, AXW Magnetic Flowmeter
Modbus Communication Type
ADMAG TI Series
AXG1A Magnetic Flowmeter
Remote Transmitter BRAIN
Communication Type
ADMAG TI Series
AXG1A Magnetic Flowmeter
Remote Transmitter HART
Communication Type
ADMAG TI Series
AXW Magnetic Flowmeter
[Size: 25 to 400 mm (1 to 16 in.)]
Installation Manual
ADMAG TI Series
AXW Magnetic Flowmeter
[Size: 25 to 1800 mm (1 to 72 in.)]
Maintenance Manual
ADMAG TI Series
AXG Magnetic Flowmeter
ADMAG TI Series
AXW Magnetic Flowmeter
[Size: 25 to 400 mm (1 to 16 in.)]
ADMAG TI Series
AXG1A Magnetic Flowmeter
Remote Transmitter
ADMAG TI Series
AXG/AXW Magnetic Flowmeter
F
OUNDATION
Note: The last 2 digits at the document number express a
described language.
fi eldbus Communication Type
Fieldbus communication Type
IM 01E21A11-01EN
1st Edition Oct. 2018 (KP)
5th Edition Nov. 2020 (KP)
