User's
Manual
Please read the following descriptions in conjunction with IM 01E22A01-01EN.
This document only applies to AXG produced at Yokogawa Corporation of America and sold to North/Central America.
Integral Flowmeter
This manual outlines the basic guidelines for installation
and wiring procedures. This manual is applicable only for
EtherNet/IP communication type. For the items which are
not covered in this manual, read the user's manuals and the
general specifi cations as listed in Table 1.1.

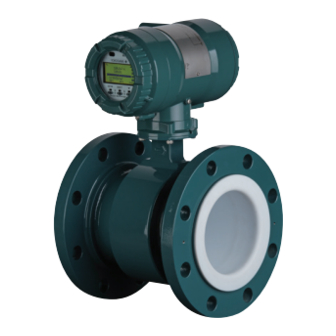

ADMAG TI Series
AXG Magnetic Flowmeter
EtherNet/IP Communication Type
Installation Manual
Difference to IM 01E22A01-01EN
Contents
1.
2.
3.
4.
Remote Transmitter
5.
6.
7.
1.1
For Safe Use of Product ................................................1
1.2
Warranty .........................................................................3
1.3
Remote Transmitter .......................................................3
2.1
Model and Specifi cations Check .............................................4
2.2
Storage Precautions ......................................................4
4.1
Wiring Precautions .........................................................6
4.2
Cables ............................................................................6
4.2.5
communication .................................................6
4.3
Cable Entries .................................................................6
4.4
Flowmeter and Remote Transmitter ..............................6
4.4.1
4.4.2
DC Power Connection ......................................7
4.4.3
Grounding .........................................................7
4.4.4
Connecting to External Products ......................7
4.4.5
Wiring Procedures ...........................................7
Basic Operating Procedures
5.1
Operation by Display unit ...............................................9
5.2
Display and Basic Confi guration ....................................9
5.3
Display Mode and Setting Mode ....................................9
5.4
Parameter Setting from Display Panel ....................... 10
5.5
microSD Card Setting ................................................. 10
5.6
BRAIN Confi guration Tool ........................................... 10
5.7
HART Confi guration Tool ............................................ 10
5.8
Modbus Confi guration Tool ......................................... 10
5.9
fi eldbus Confi guration Tool ......................11
5.10 EtherNet/IP Confi guration Tool ....................................11
6.1
Pre-operation Zero Adjustment ................................... 12
6.2
Zero Adjustment from Display Unit ............................. 12
6.3
Hardware Switch Setting ............................................ 12
6.3.1
Transmitter ..................................................... 12
6.3.2
AXG1A Remote Transmitter .......................... 13
6.3.3
AXFA11 Remote Transmitter ......................... 13
IM 01E21A01-03EN-A
1st Edition
IM 01E21A01-03EN-A
Advertisement
Table of Contents
Related Manuals for YOKOGAWA ADMAG TI Series
Summary of Contents for YOKOGAWA ADMAG TI Series
-
Page 1: Table Of Contents
Difference to IM 01E22A01-01EN IM 01E21A01-03EN-A Please read the following descriptions in conjunction with IM 01E22A01-01EN. This document only applies to AXG produced at Yokogawa Corporation of America and sold to North/Central America. Contents Introduction For Safe Use of Product ..........1 Warranty .................3... -
