Setting 100 to 160: Functions 0 to 60 with inverse output
These settings have the same function as settings 0 to 60 but with inverse output. Set as 1
inverse output and the last two digits specify the setting number of the function.
Examples: For inverse output of "8 (During Baseblock)", set 108.
For inverse output of "4C (During fast stop)", set 14C.
■ H2-17: Watt Hour Output Unit Selection
When one of the terminals is set to output the number of watt hours (H2-01 to H2-16 = 39), parameter H2-17 determines
the units for the output signal.
This output function provides a watt hour meter or a PLC input based on a 200 ms pulse signal. H2-06 determines the
frequency that pulses are issued to keep track of the kWh for the drive.
No.
H2-17 Watt Hour Output Unit Selection
Note: 1. A negative power output (i.e., regeneration) does not subtract from the total watt hours.
2. The drive keeps track of the watt hours as long as the control circuit has power. The value is reset when the power supply is shut off.

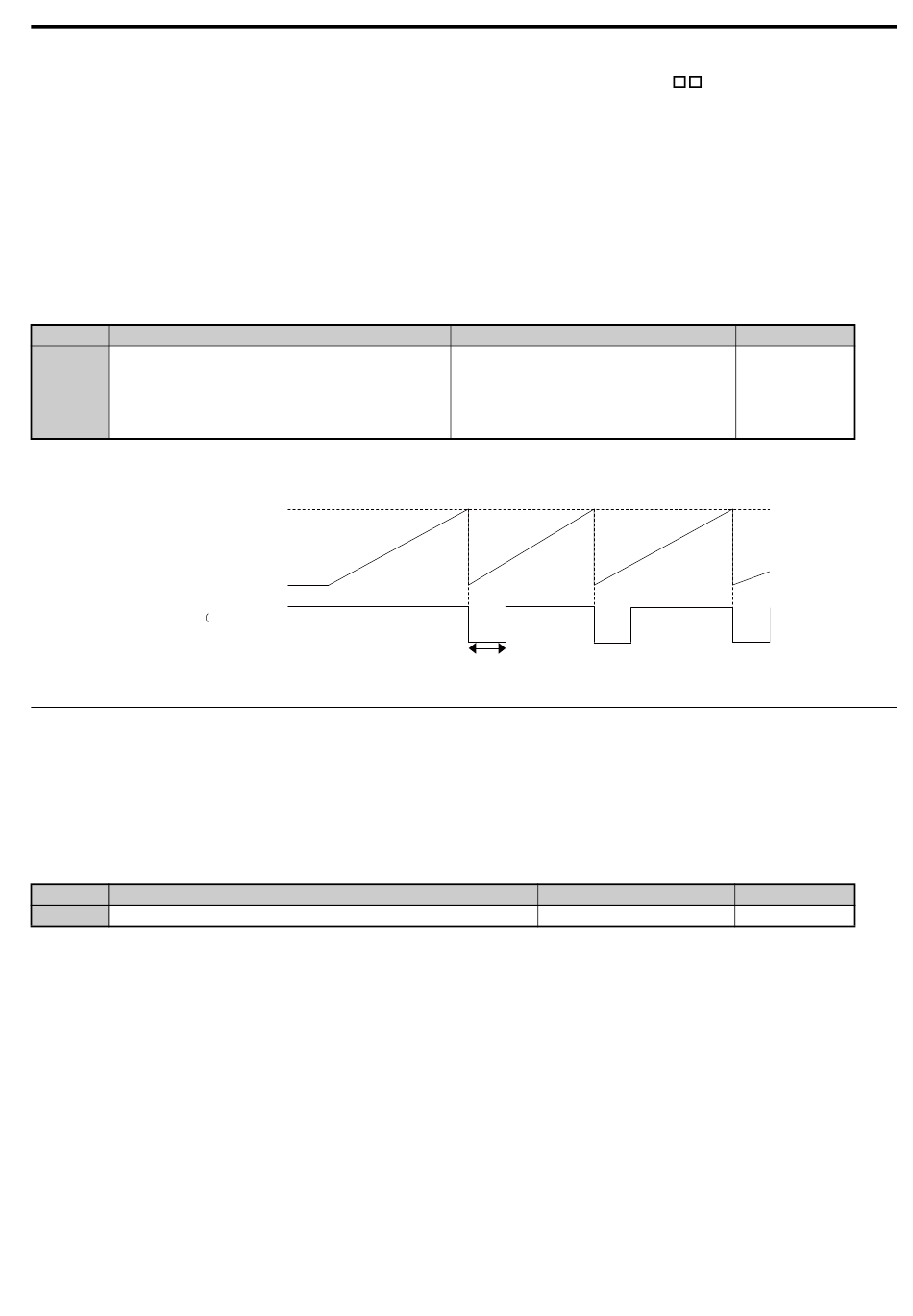

Figure 2.62
(Pulse Output Unit)
Integral Power (every 100 ms)

◆ H3: Analog Inputs

The drive is equipped with two analog input terminals: analog input 1 and analog input 2. See
the functions that can be set for these terminals.
H3-01: Analog Input 1 Signal Level Selection
■
Selects the input signal level for analog input 1.
No.
H3-01 Analog Input 1 Signal Level Selection
Setting 0: 0 to 10 Vdc
The input level is 0 to 10 Vdc. The minimum input level is limited to 0%, so that a negative input signal due to gain and
bias settings will be simply read as 0%.
Setting 1: -10 to 10 Vdc
The input level is -10 to 10 Vdc. If the resulting voltage is negative after being adjusted by gain and bias settings, then the
motor will rotate in reverse.
YASKAWA ELECTRIC EZZ010930 FSDrive-MV1000 Parameter Guide
Name
H2-17
H2-01 to 16
Contact Input)
OFF
Figure 2.62 Watt Hour Output Example
Name
Setting Range
0: 0.1 kWh units
1: 1 kWh units
2: 10 kWh units
3: 100 kWh units
4: 1000 kWh units
OFF
ON
0.2 s
Setting Range
0 or 1
2.7 H: Terminal Functions
, where the "1" indicates
Default
3
common_TMonly
Table 2.25 for a listing of
Default
0
