BO–36
BODY – FRONT WIPER AND WASHER
REMOVAL
1. REMOVE WIPER ARMS
2. REMOVE WEATHERSTRIP AND COWL LOUVERS

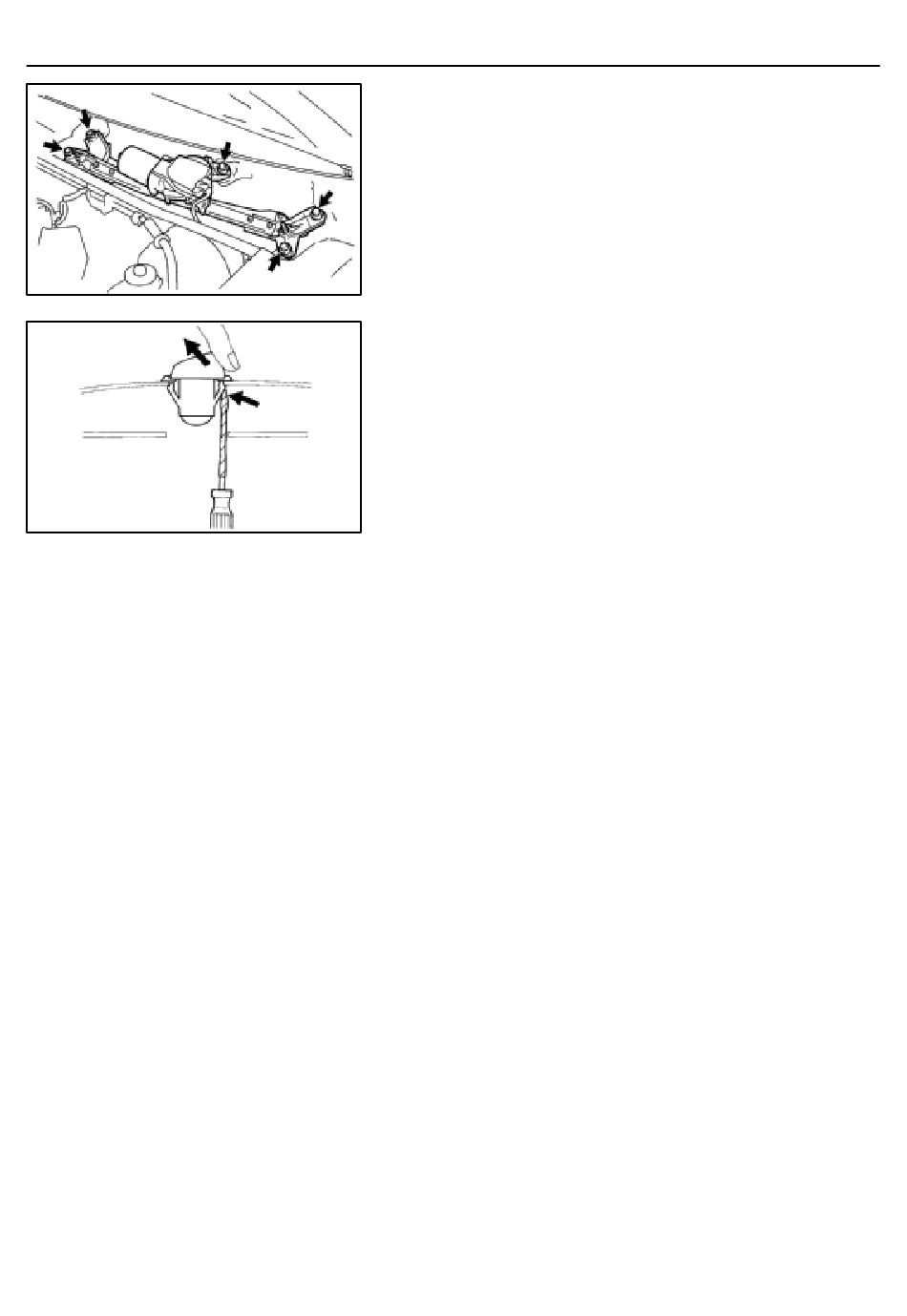

3. REMOVE WIPER MOTOR ASSEMBLY
(a) Disconnect the connector.
(b) Remove the 5 bolts and wiper motor assembly.
4. REMOVE WIPER MOTOR
Remove the 2 bolts, then separate the motor crank arm from the
wiper links at the ball and socket joint.
N20998
5. REMOVE WINDOW WASHER NOZZLE
(a) Remove the hoses from the nozzles.
(b) Using a screwdriver, remove the nozzle.
HINT:
Tape the screwdriver tip before use.
BO4391
