AC–56
AIR CONDITIONING –

HEATER RADIATOR

HEATER RADIATOR
REMOVAL
1. DRAIN ENGINE COOLANT FROM RADIATOR
HINT:
It is not necessary to drain out all the coolant.
2. DISCONNECT WATER HOSES FROM A/C UNIT
(See page AC–27)
3. REMOVE NO. 1 LOWER INSTRUMENT PANEL
4. REMOVE LH INSTRUMENT LOWER PANEL

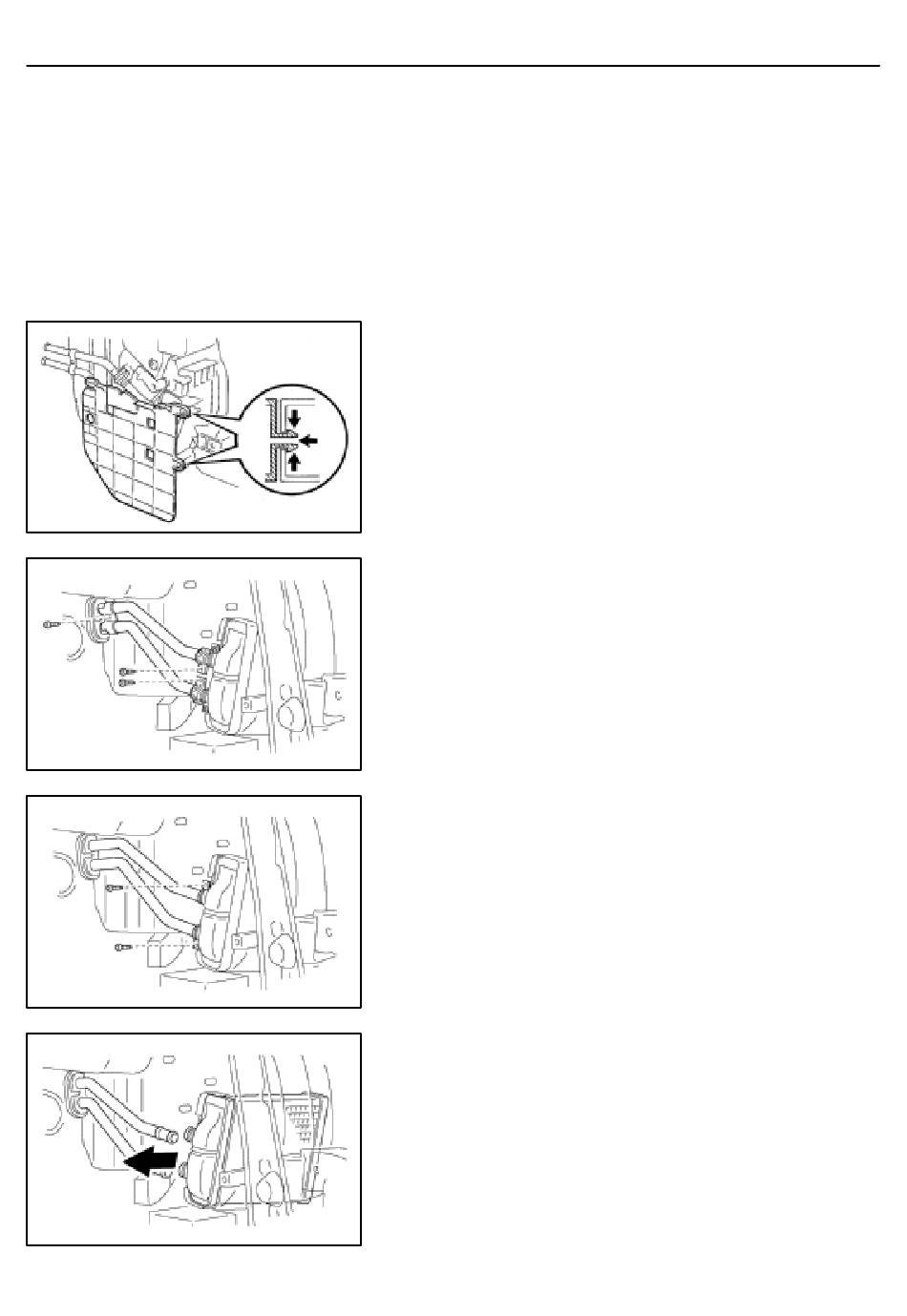

5. REMOVE HEATER RADIATOR
(a) Release the 3 claws and pull out the heater protector.
N20692
(b) Remove the 3 screws 3 plate.
I09156
(c) Remove the 2 screws and 2 clamps and disconnect the
2 heater radiator pipes.
I09155
(d) Remove the heater radiator.
I09154
