AX–18
AUTOMATIC TRANSAXLE

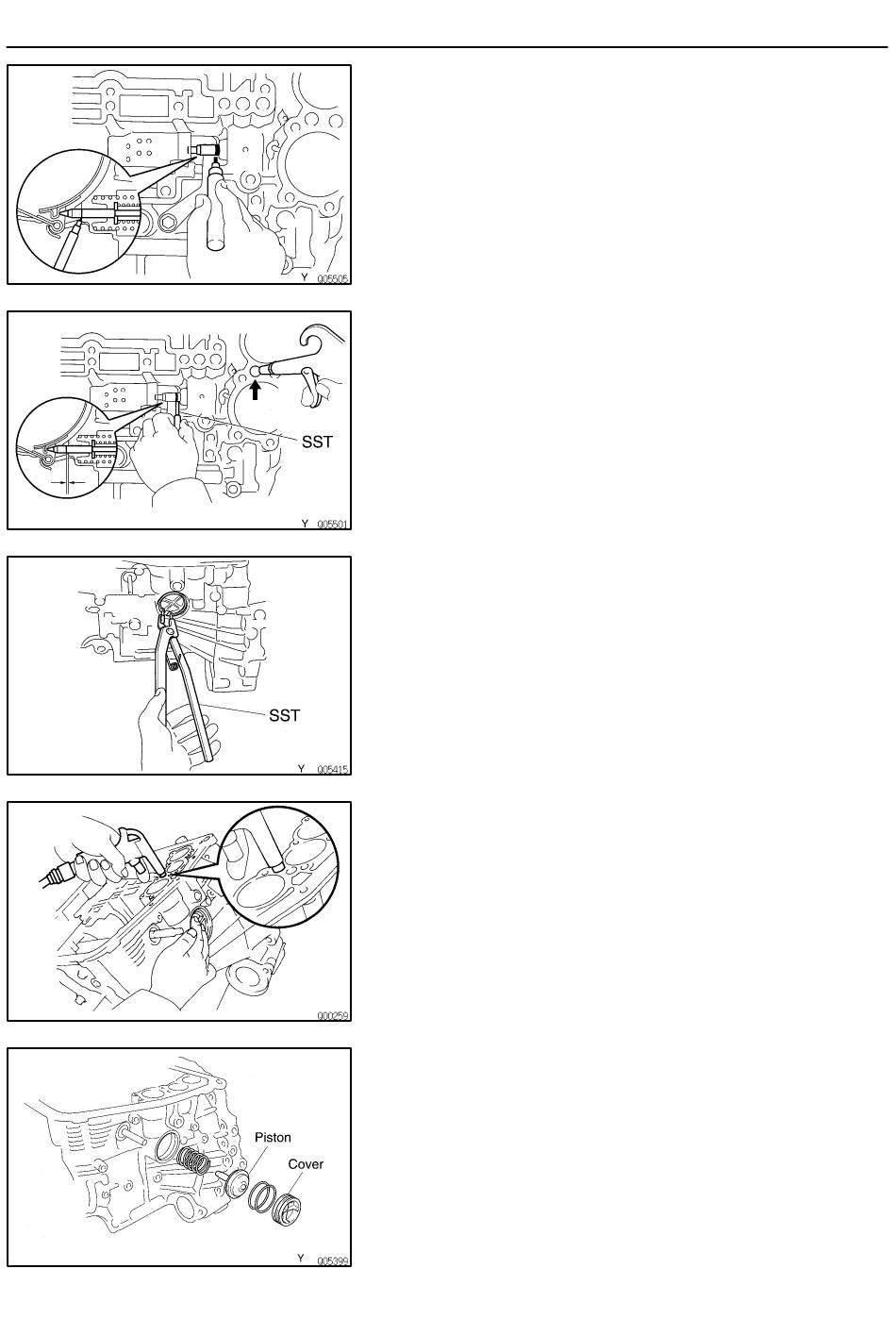

20. MEASURE PISTON STROKE SECOND COAST
BRAKE
(a) Apply a small amount of paint to the piston rod at the point
it meets the case.
(b) Using SST, measure the piston stroke while applying and
releasing compressed air (392–785 kPa, 4–8 kgf/cm
57–114 psi).
SST 09240–00020
Maximum thrust clearance:
If the piston stroke exceeds the limit, inspect the second
coast brake band.
21. REMOVE SECOND COAST BRAKE PISTON
(a) Using SST, remove the snap ring.
SST 09350–32014
(b) Applying compressed air to the oil hole, remove the se-
cond coast brake cover, piston assembly and spring.
(c) Remove the 2 O–rings from the cover.
– COMPONENT PARTS REMOVAL
2.0–3.5 mm (0.079–0.138 in.)
