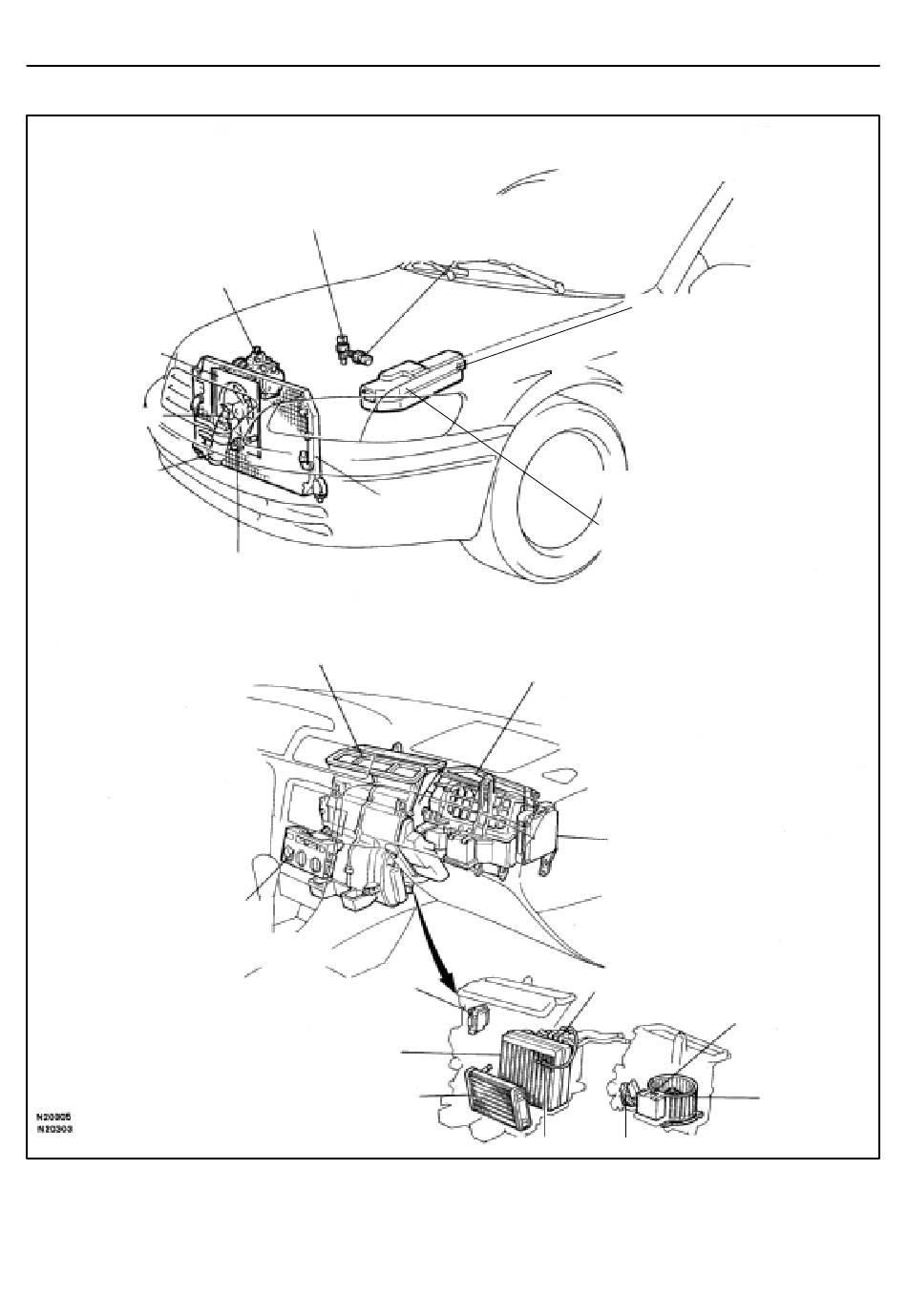

LOCATION
1MZ–FE engine:
No. 1 Engine Coolant Temperature
(ECT) Switch
Compressor
Condenser Fan
z Fan Motor
Pressure Switch
Receiver
5S–FE engine models:
Engine Coolant Temperature
(ECT) Switch
A/C Control Assembly
z A/C Switch
z Blower Speed Control Switch
z Mode Switch
AIR CONDITIONING
1MZ–FE engine:
No. 2 Engine Coolant Temperature
(ECT) Switch
Condenser
A/C Unit
Air Outlet Servomotor
Evaporator
Heater Radiator
– AIR CONDITIONING SYSTEM
Engine Room Junction Block No. 2
z Engine Main Relay
(Marking: ENGINE MAIN)
z No. 1 Cooling Fan Relay
(Marking: FAN NO.1)
Blower Unit
5S–FE engine:
ECM (Built in A/C Amplifier)
Expansion Valve
Thermistor
Blower Resistor
Author :
Engine Room Relay Block No. 1
z Magnetic Clutch Relay
(Marking: MG CLT)
z Heater Main Relay
(Marking: HTR)
z No. 2 Cooling Fan Relay
(Marking: FAN NO.2)
z No. 3 Cooling Fan Relay
(Marking: FAN NO.3)
1MZ–FE:
A/C Amplifier
Blower Motor
Date :
AC–13
AC0LL–02
Z19146
