CO–6
COOLING (5S–FE)
(c)

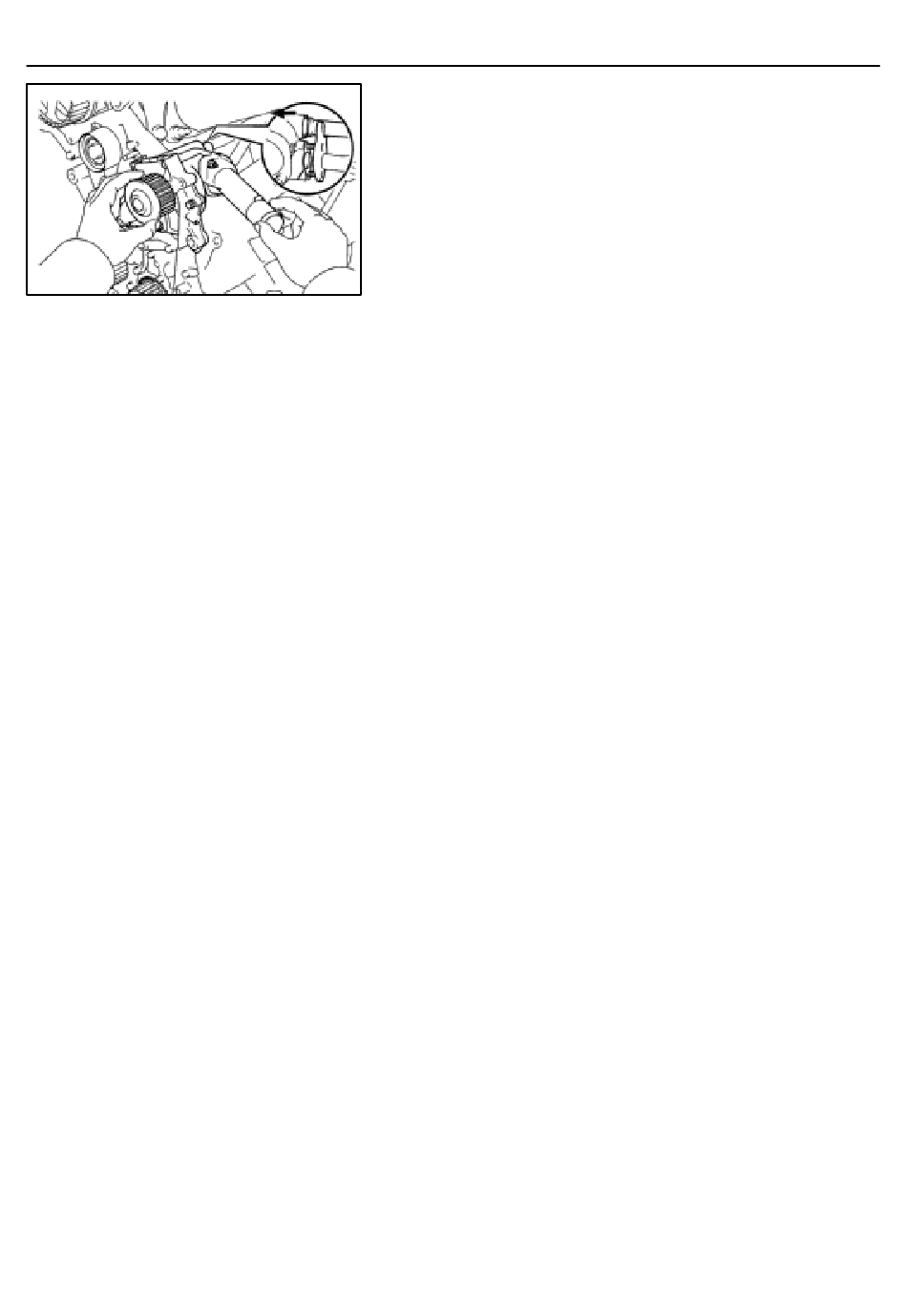

Disconnect the water pump cover from the water bypass
Disconnect
pipe, and remove the water pump and water pump cover
assembly.
(d)
Remove the gasket and 2 O–rings from the water pump
and water bypass pipe.
9.
REMOVE WATER PUMP FROM WATER PUMP COVER
Remove the 3 bolts, water pump and gasket.
S05965
–
WATER PUMP
