AX–124
AUTOMATIC TRANSAXLE

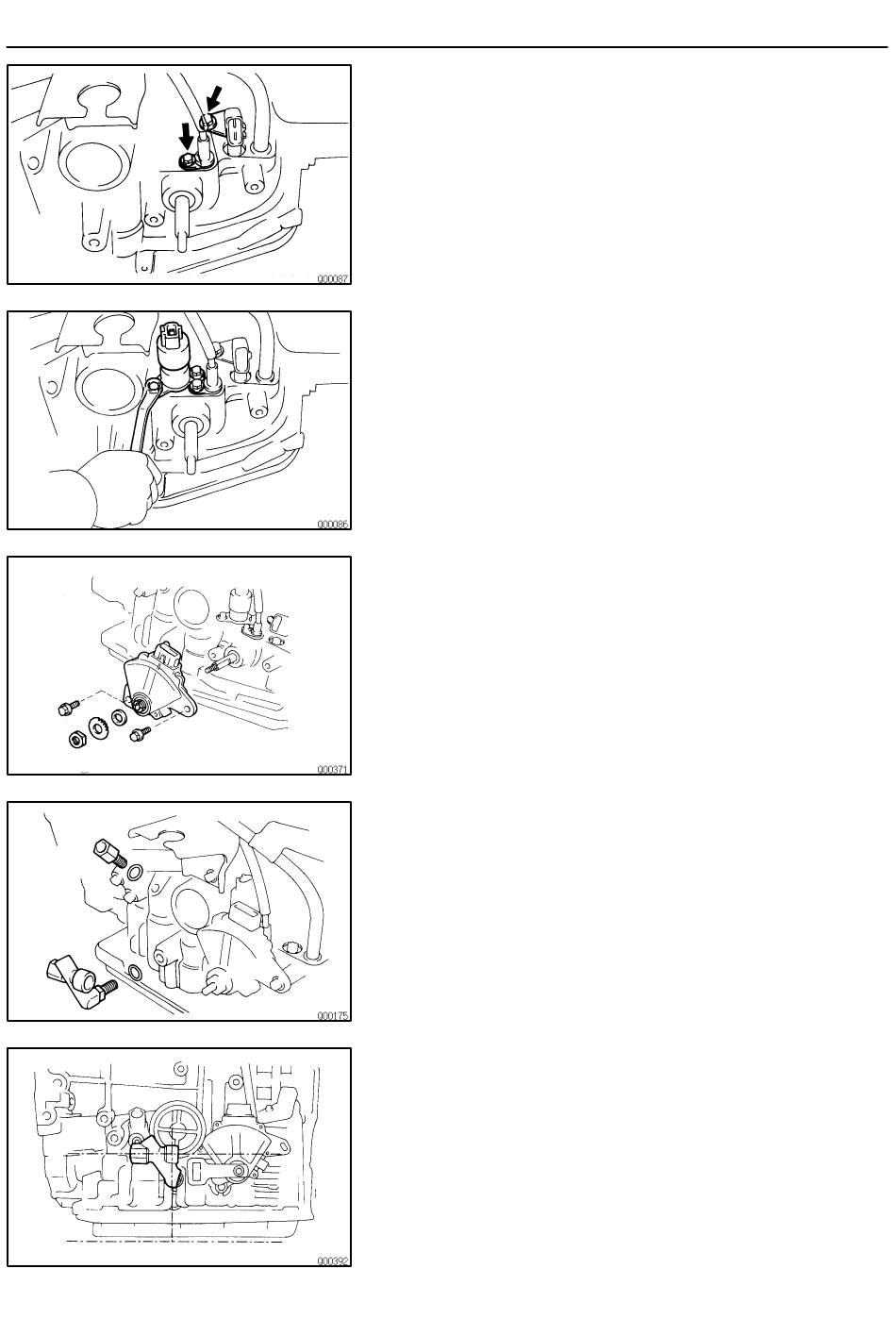

53. INSTALL SOLENOID WIRING RETAINING PLATE
54. INSTALL THROTTLE CABLE RETAINING PLATE
55. INSTALL FILLER TUBE AND BRACKET
56. INSTALL SL SOLENOID
(a) Coat the O–ring with ATF and push the tip of SL solenoid
into the hole.
(b) Tighten the 2 bolts evenly and gradually.
57. INSTALL PARK/NEUTRAL POSITION SWITCH
(a) Install the park/neutral position switch to the manual valve
shaft.
(b) Install the seal gasket and locking plate.
(c) Tighten the nut and stake it with the locking plate.
Torque: 6.9 N·m (70 kgf·cm, 61 in.·lbf)
58. ADJUST PARK/NEUTRAL POSITION SWITCH
(a) Align the groove and return neutral basic line.
(b) Lock the switch with 2 bolts.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
59. INSTALL UNION AND ELBOW
(a) Coat a new O–rings with ATF.
(b) Install the O–rings to the union and elbow.
(c) Install the union and elbow to the transaxle case.
Torque: 27 N·m (275 kgf·cm, 20 ft·lbf)
HINT: Install the elbow as shown in the illustration.
– COMPONENT PARTS INSTALLATION
