CH–10
Length
Ohmmeter
Positive (+)
Terminal
Rectifier
Terminal
Ohmmeter
CHARGING (5S–FE)
3.
Using vernier calipers, measure the exposed brush length.
If the exposed length is less than minimum, replace the brush
holder assembly.
P13535
4.
(a)
P13568
If continuity is not as specified, replace the rectifier holder.
(b)
Negative (–)
Terminal
If continuity is not as specified, replace the rectifier holder.
P13566
5.
Check the bearing is not rough or worn.
If necessary, replace the bearing. (See page CH–11)
– GENERATOR

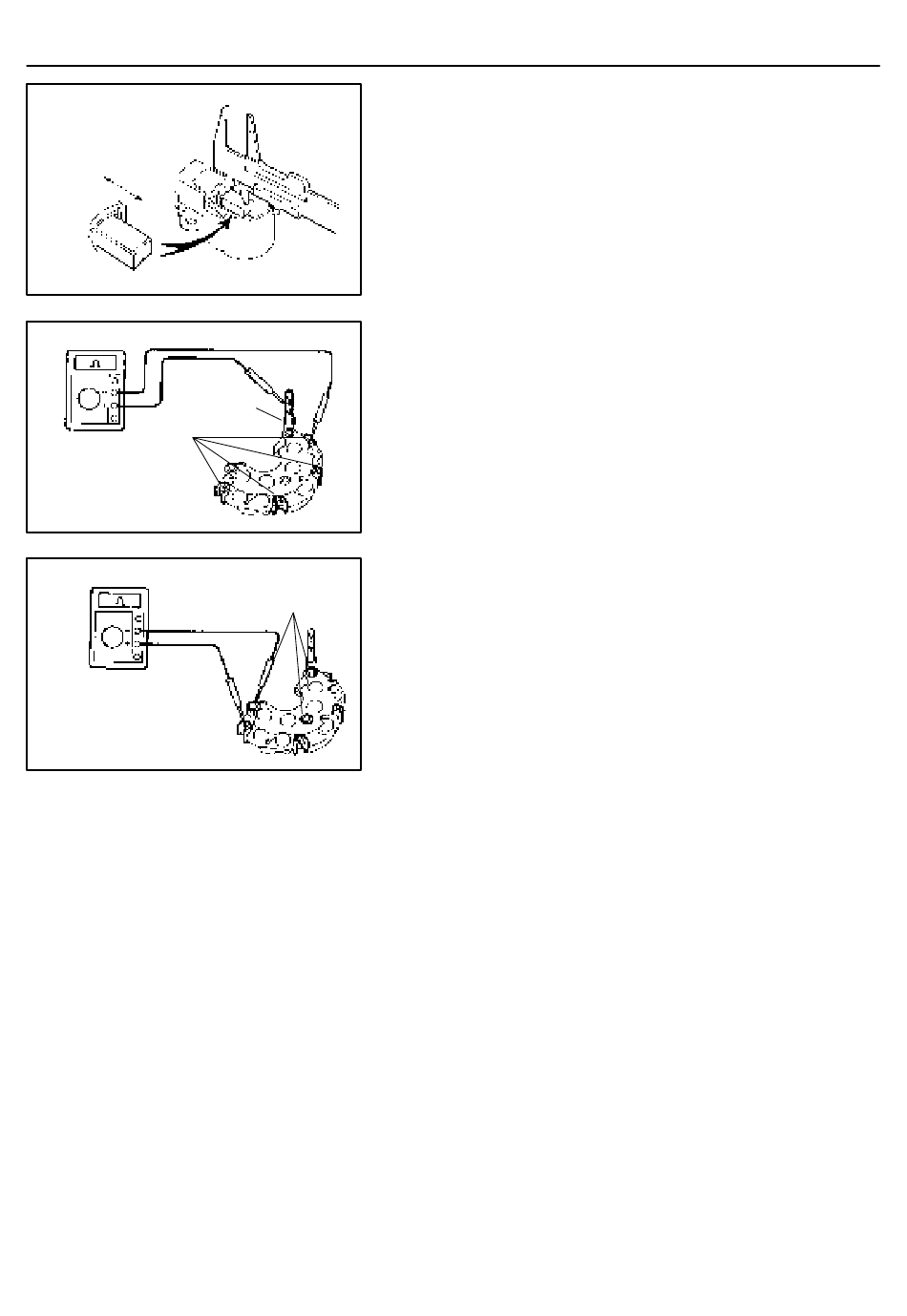

INSPECT BRUSHES
Standard exposed length: 10.5 mm (0.413 in.)
Minimum exposed length: 1.5 mm (0.059 in.)
INSPECT RECTIFIERS (RECTIFIRE HOLDER)
Check the positive (+) rectifire.
(1) Using an ohmmeter, connect one tester probe to the
positive (+) terminal and the other to each rectifier
terminal.
(2) Reverse the polarity of the tester probes and repeat
step (a).
(3) Check that one shows continuity and the other
shows no continuity.
Check the negative (–) rectifire.
(1) Using an ohmmeter, connect one tester probe to
each negative (–) terminal and the other to each
rectifier terminal.
(2) Reverse the polarity of the tester probes and repeat
step (a).
(3) Check that one shows continuity and the other
shows no continuity.
INSPECT BEARING
