BODY – FRONT SEAT (Power Seat for TMMK Made)
REASSEMBLY
1. INSTALL THESE PARTS:
(a) Front seat cushion inner shield
(b) Front seat cushion bracket
(c) Front seat cushion inner No.1 shield
2. INSTALL SEAT CUSHION COVER
(a) Install the seat cushion cover to seat cushion pad.
(b) Install the seat cushion cover with pad to the seat cushion
frame.
3. INSTALL SEAT CUSHION ASSEMBLY
Install the seat cushion assembly with 4 bolts to the seat adjust-
er.
HINT:
Tighten the 4 bolts temporarily, then from the bolts on the rear
side tighten completely.
4. w/ Side Airbag Assembly:
INSTALL SIDE AIRBAG ASSEMBLY
Install the side airbag assembly with 2 nuts to the seatback
frame.
Torque: 6.0 N·m (61 kgf·cm, 53 in.·lbf)
NOTICE:
z
Make sure that the side airbag assembly is installed
to the specified torque.
z
If the side airbag assembly has been dropped, or
there are cracks, dents or other defects in the case or
connector, replace the side airbag assembly with a
new one.
z
When installing the side airbag assembly, take care
is not pinched between other parts.
5. INSTALL SEATBACK COVER
(a) Install the seatback cover to the seatback pad.
(b) Install the seatback cover with pad to the seatback frame.
(c) Install the headrest supports.

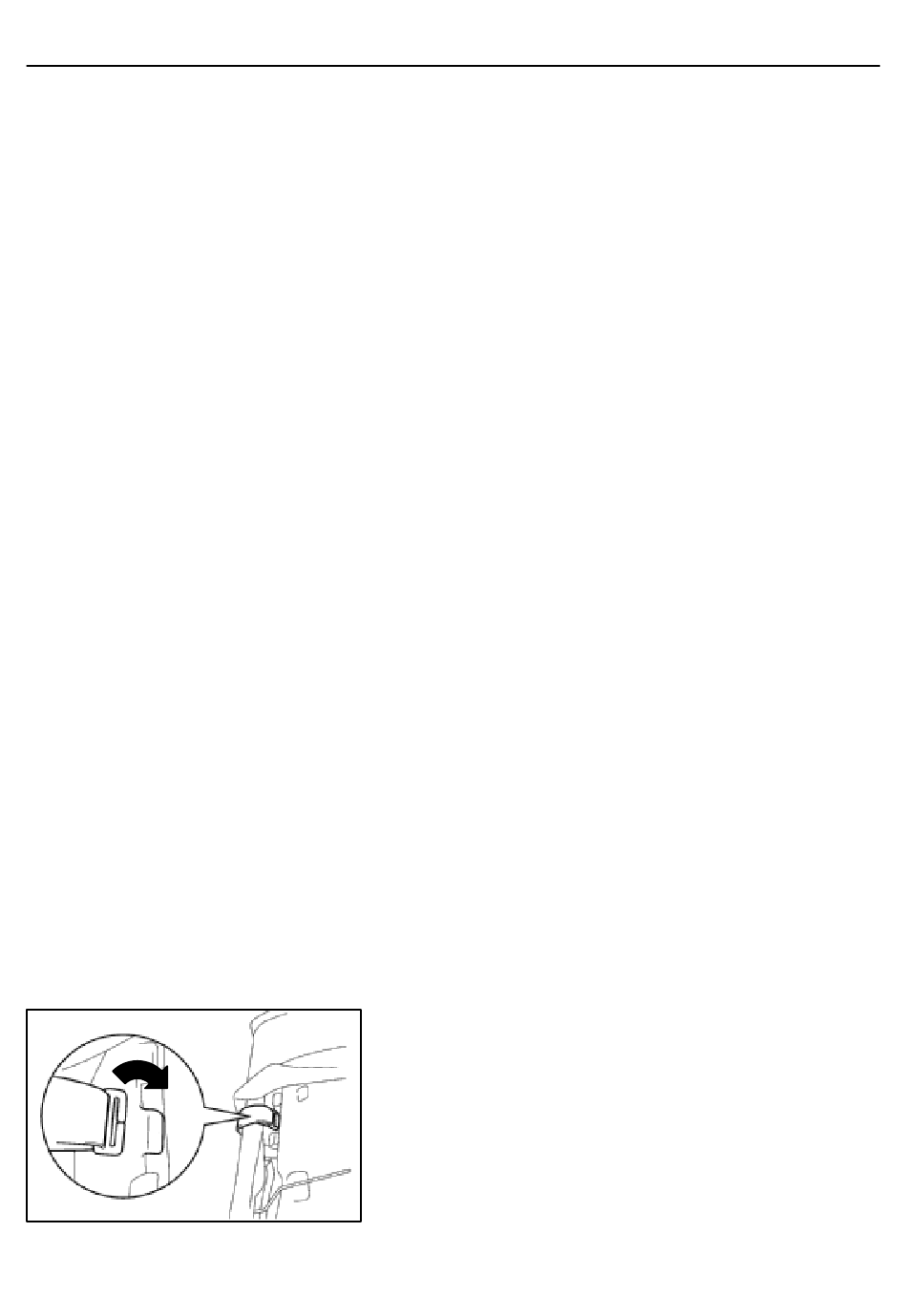

(d) w/ Side Airbag Assembly:
Hang the hook on to the seatback frame.
CAUTION:
Take care to hung the hook securely. Otherwise the seat
cove slides, it might cause incorrect deploying.
