AX–62
AUTOMATIC TRANSAXLE

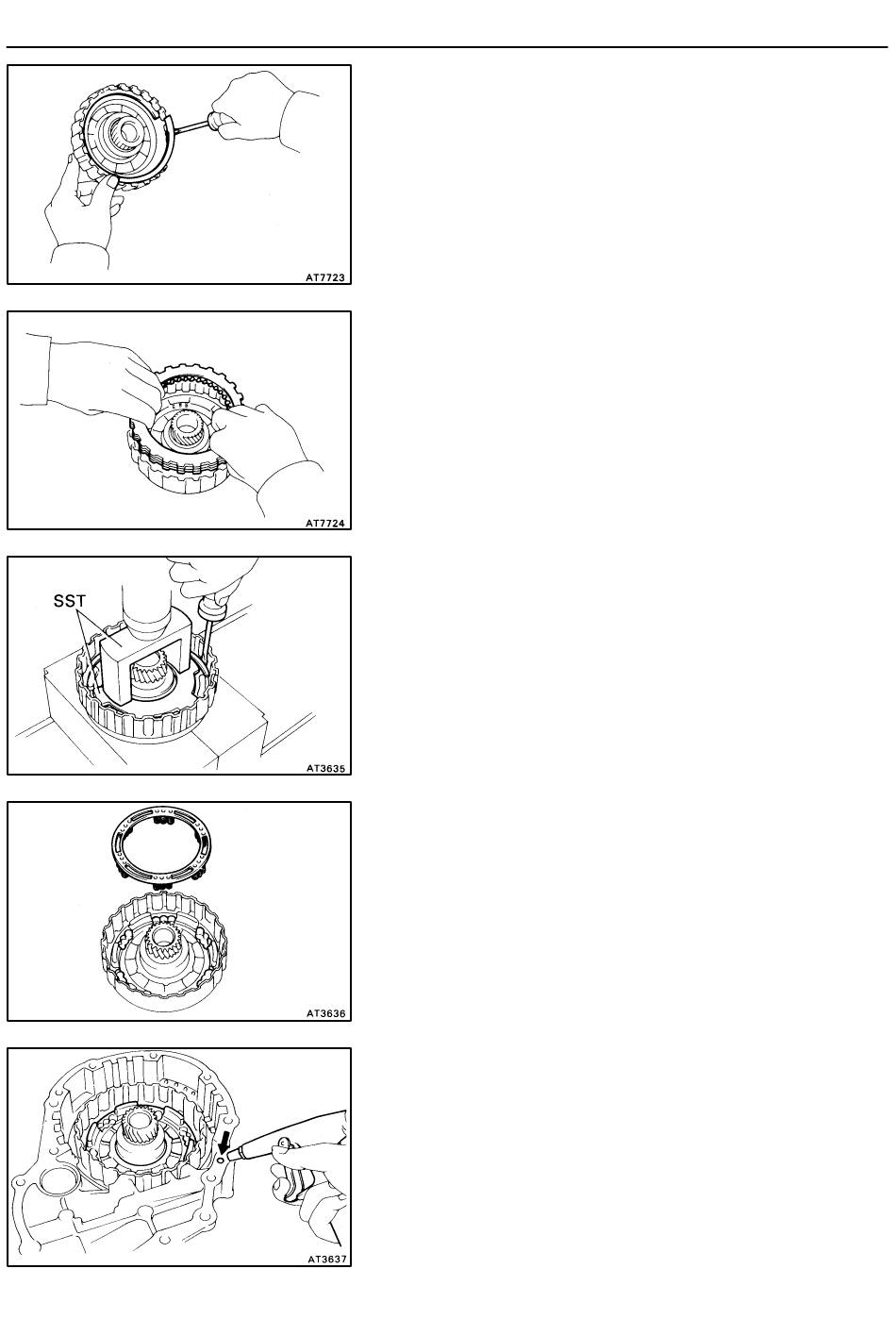

4. REMOVE SNAP RING WITH SCREWDRIVER
5. REMOVE FLANGES, DISCS AND PLATES
6. REMOVE PISTON RETURN SPRING
(a) Place SST on the spring retainer and compress the spring
with a press.
SST 09350–32014 (09351–32070, 09351–32200)
(b) Remove the snap ring.
(c) Remove the piston return spring.
7. REMOVE PISTON FROM CLUTCH DRUM
(a) Install the clutch drum on the case.
(b) Apply compressed air to the pressure apply hole of the
case.
(c) Remove the piston from the clutch drum.
If the piston does not come out completely, use needle–
nose pliers to remove it.
(d) Remove the clutch drum from the case.
– OVERDRIVE UNIT
