SS–72

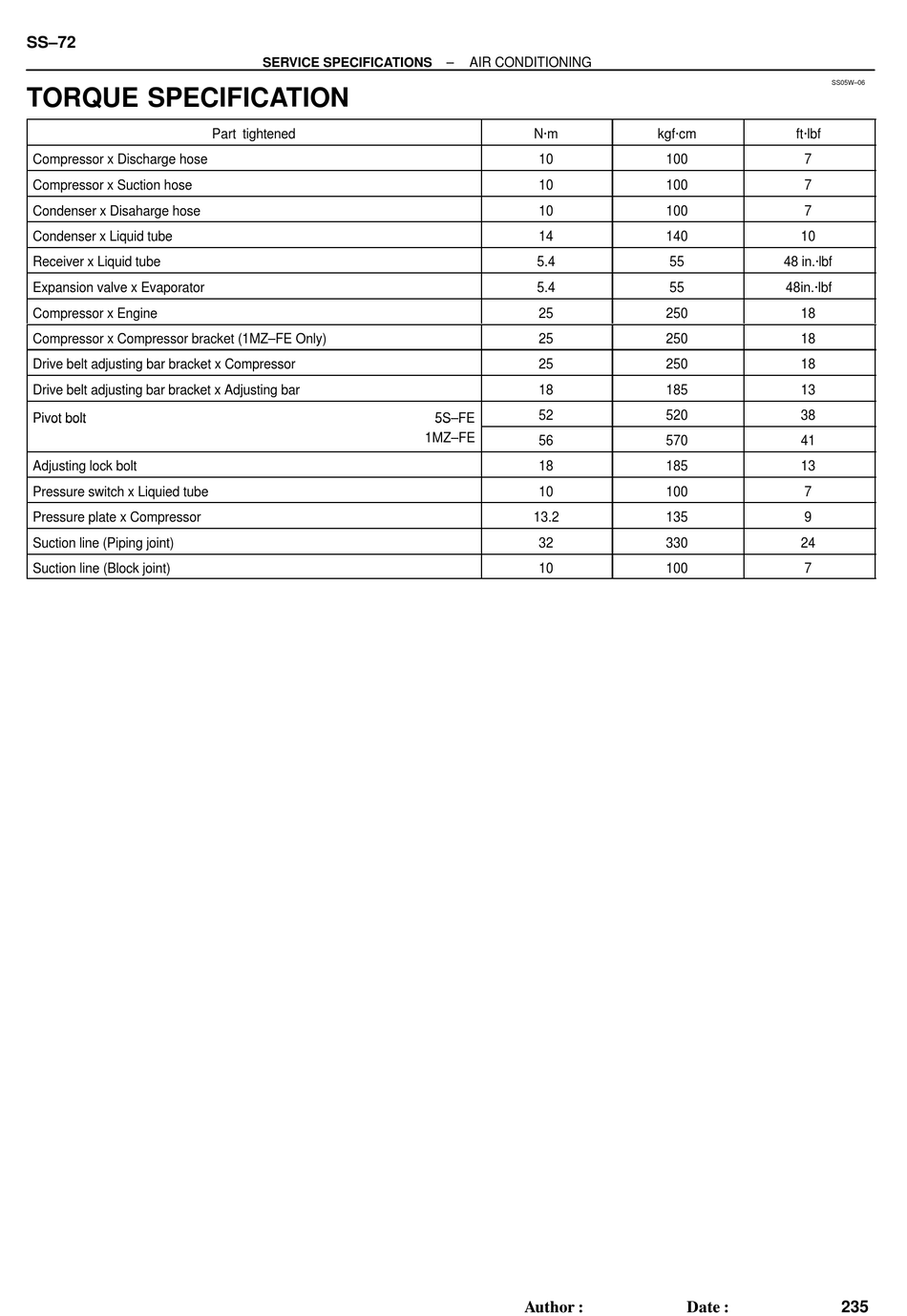

TORQUE SPECIFICATION
Compressor x Discharge hose
Compressor x Suction hose
Condenser x Disaharge hose
Condenser x Liquid tube
Receiver x Liquid tube
Expansion valve x Evaporator
Compressor x Engine
Compressor x Compressor bracket (1MZ–FE Only)
Drive belt adjusting bar bracket x Compressor
Drive belt adjusting bar bracket x Adjusting bar
Pivot bolt Pivot bolt
Adjusting lock bolt
Pressure switch x Liquied tube
Pressure plate x Compressor
Suction line (Piping joint)
Suction line (Block joint)
SERVICE SPECIFICATIONS
Part tightened
– AIR CONDITIONING
N·m
10
10
10
14
5.4
5.4
25
25
25
18
52
5S FE 5S–FE
1MZ–FE
56
18
10
13.2
32
10
