AX–84
AUTOMATIC TRANSAXLE

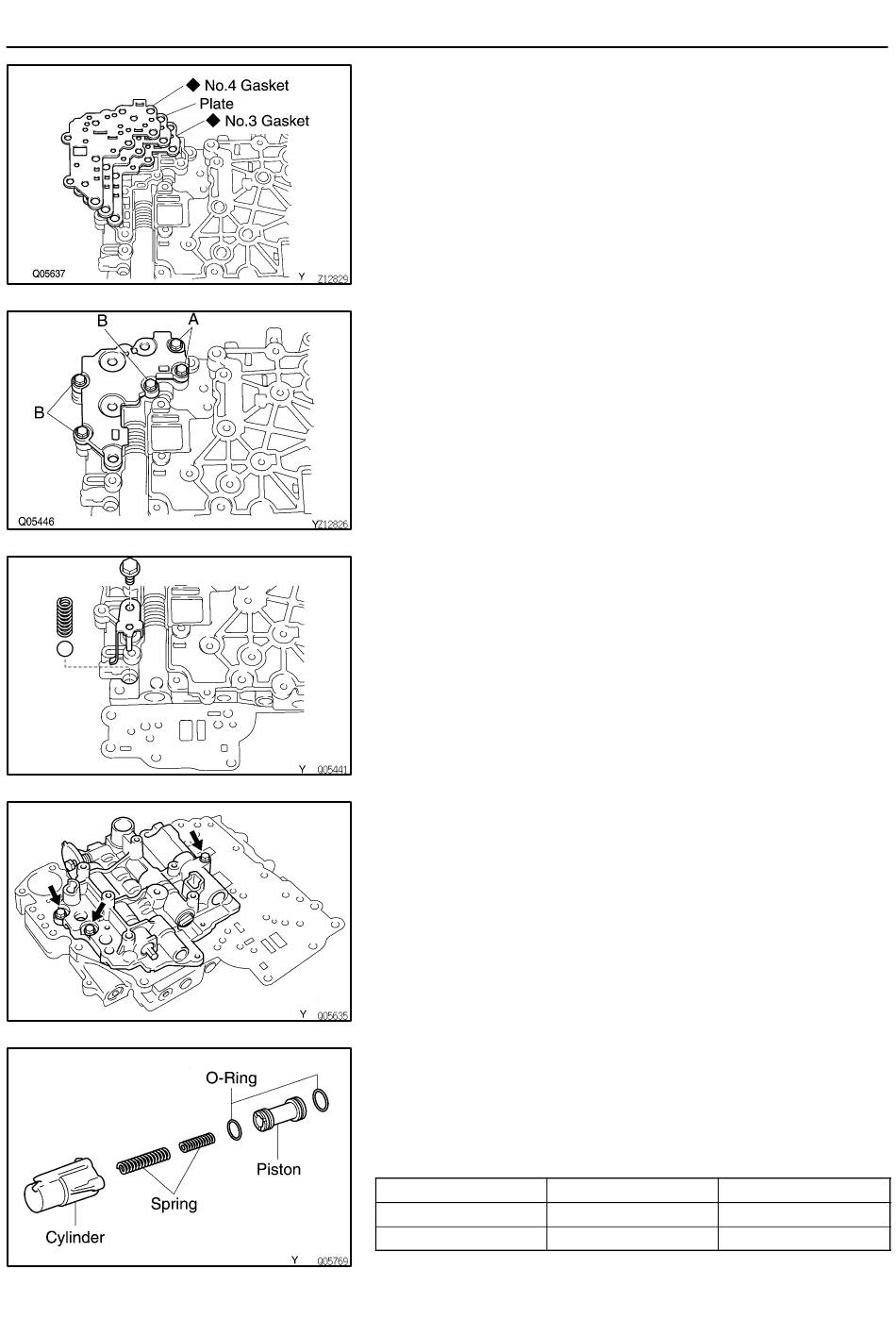

10. INSTALL LOWER VALVE BODY COVER GASKETS
AND NO.2 PLATE
Position a new gasket and plate and then another new
gasket.
HINT: Both gaskets are identical.
11. INSTALL LOWER VALVE BODY COVER
(a) Position the lower valve body cover.
(b) Install and finger tighten the 5 bolts.
HINT: Each bolt length is indicated below.
Bolt length
12. INSTALL PRESSURE RELIEF VALVE
13. TIGHTEN BOLTS OF UPPER AND LOWER VALVE BO-
DIES
(a) Tighten the 16 bolts in the lower valve body.
Torque: 6.6 N·m (67 kgf·cm, 58 in.·lbf)
(b) Tighten the 3 bolts in the upper valve body.
Torque: 6.6 N·m (67 kgf·cm, 58 in.·lbf)
14. INSTALL B
(a) Coat new O–rings with ATF and install them to the piston.
(b) Install the spring and piston into the cylinder.
Spring dimensions
mm (in.)
Inner
Outer
– VALVE BODY
Bolt A: 47 mm (1.850 in.)
Bolt B: 14 mm (0.551 in.)
ACCUMULATOR ASSEMBLY
0
Color Free length
White 47.5 (1.870)
None 16.3 (0.642)
Coil outer diameter
18.9 (0.744)
20.7 (0.815)
