System Cards; Replacing The Eim Card - Mitel 430 System Manual

Operation and Maintenance
6. 3. 5

System cards

As the RAM and Flash chips are fitted directly to the mainboard, the category system
cards comprises only the EIM card.
6. 3. 5. 1

Replacing the EIM card

The EIM card is located in a chip-card holder that is secured directly on the mainboard.
The position of the chip-card holder on the mainboard is shown in Fig. 79.
To fit an EIM card, proceed as follows:
Warning
Be sure to observe the "Safety regulations", page 84.
1. Carry out preparations (see "Preparations", page 189).
2. Remove the housing cover.
3. Gently push the EIM card along the guide tongues out of the chip-card holder.
4. Push the new EIM card under the guide tongues and through to the stop in the chip-
card holder. Make sure the contacts of the EIM card are facing downwards and the
bevelled edge of the EIM card is pointing towards the edge of the mainboard (see
Fig. 80).
5. Fit the housing cover.
6. Reconnect the communication server to the power supply.

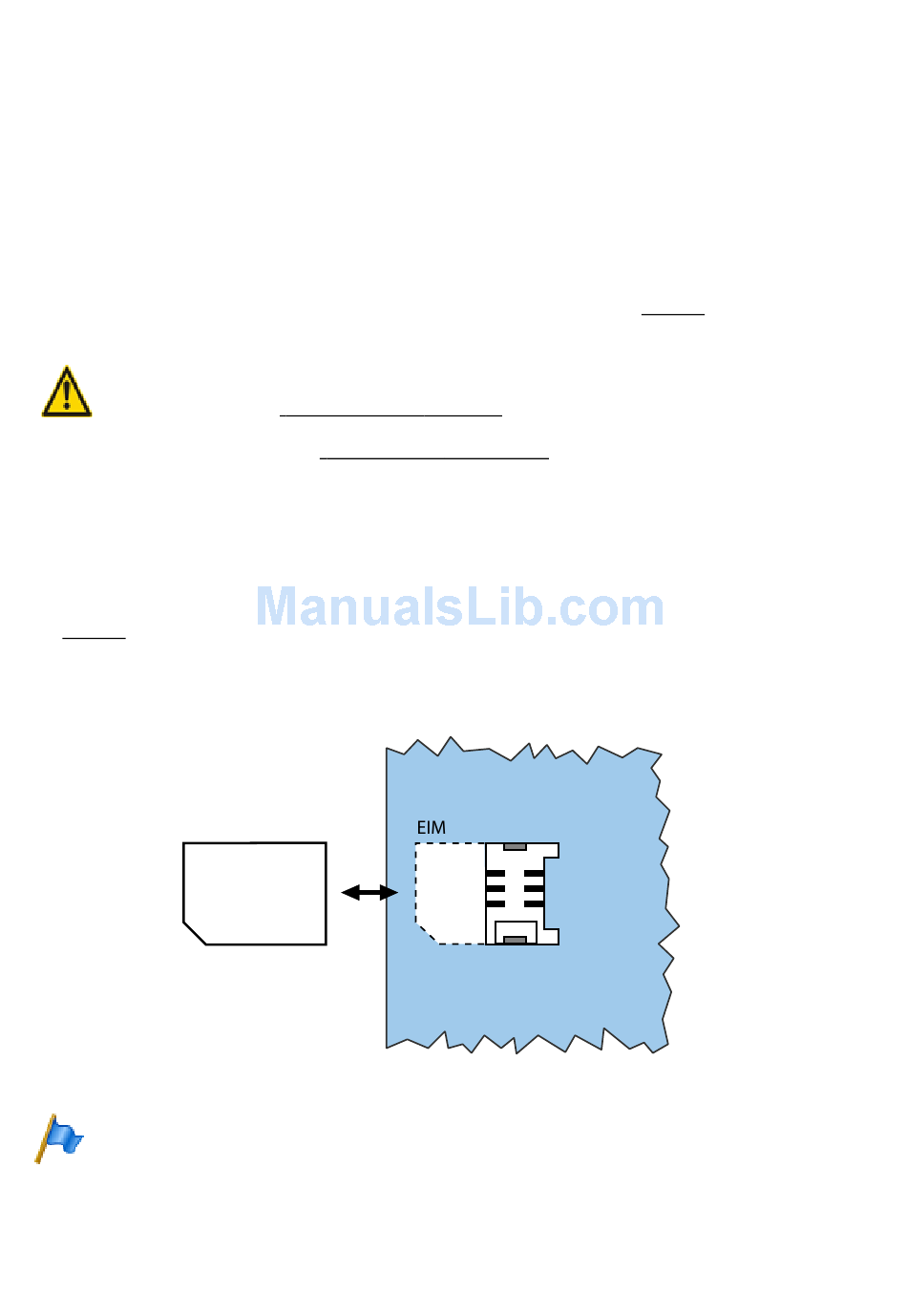

Fig. 80 EIM card
Notes:
– The EIM card must be fitted before the system is put into operation. The communication
server will not start without the EIM card.
