Installation
4. 2. 5. 3

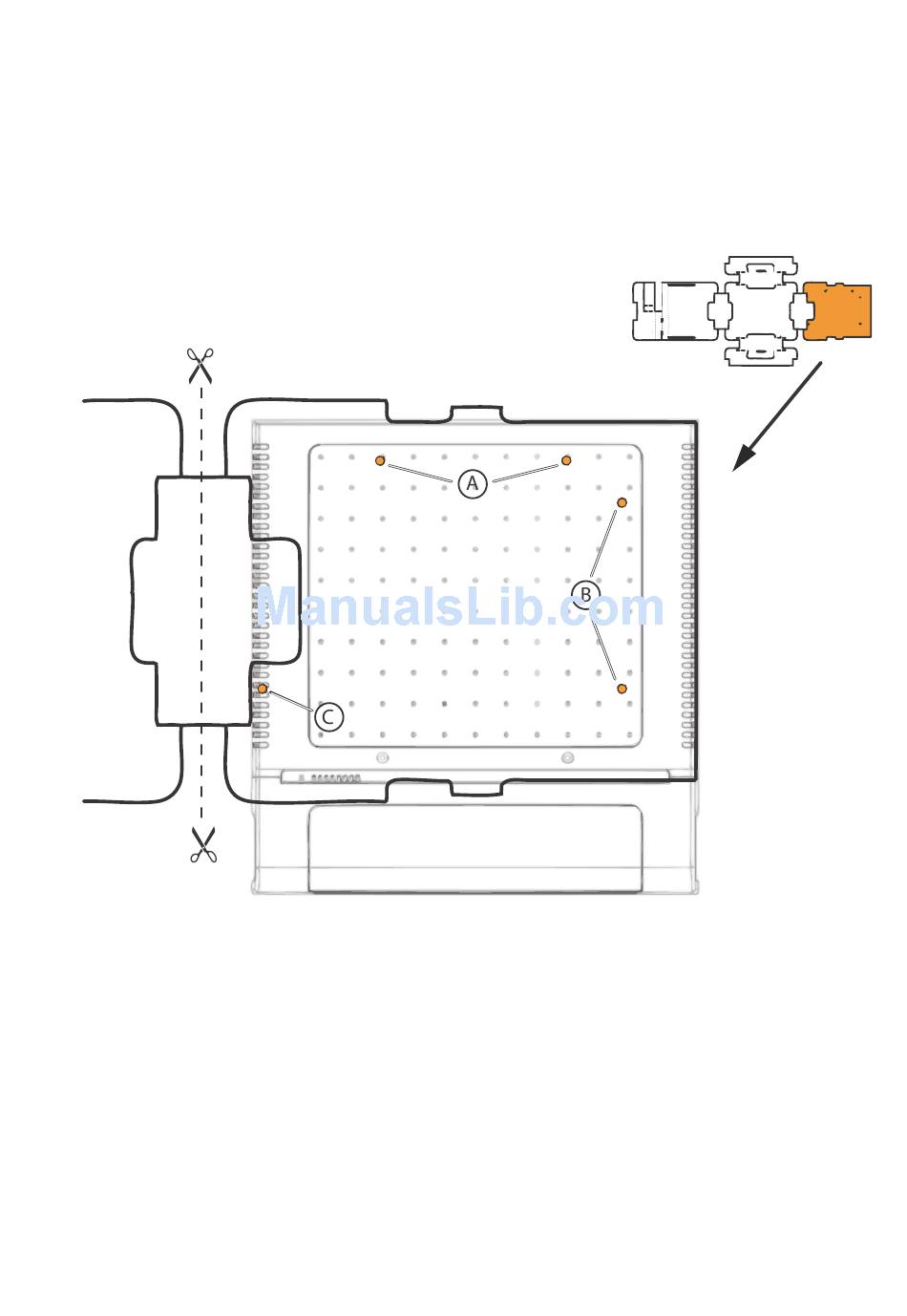

Drilling template
The packaging box of the communication server can also be used for marking out the
drill holes. To do so it is best to detach the part of the inner packaging box that contains
the drill holes.
Note: The holes on the cardboard box are not labelled.
Fig. 15
Drilling template
4. 2. 5. 4
Wall-mounting procedure
Materials required:
• Screw set for wall/desktop installation
• 6 mm drill
• Screwdriver
87
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016
