Working With Connectivity - Quantum Scalar i6000 User Manual

Chapter 15: Maintaining Your Library
Maintenance Actions
Working With
Connectivity
544
The Connectivity dialog box enables you to do the following:
• Reset an I/O blade
• Reset the Fibre Channel port on the MCB or a Fibre Channel port on
an I/O blade
• Power cycle an I/O blade
• Visually locate a specific I/O blade in the library
1 Log on as an administrator.
2 Make sure that you are viewing the physical library. From the View
menu, click the name of the physical library.
3 Click Tools > Connectivity.
Note: If the physical library is not offline, you receive a message that
asks you whether you want to take it offline. Click Yes.
The Connectivity dialog box appears with the MCB and all I/O
blades in the library listed.
4 To display the ports for a specific blade, click the name of the blade
(MCB or one of the I/O blades).

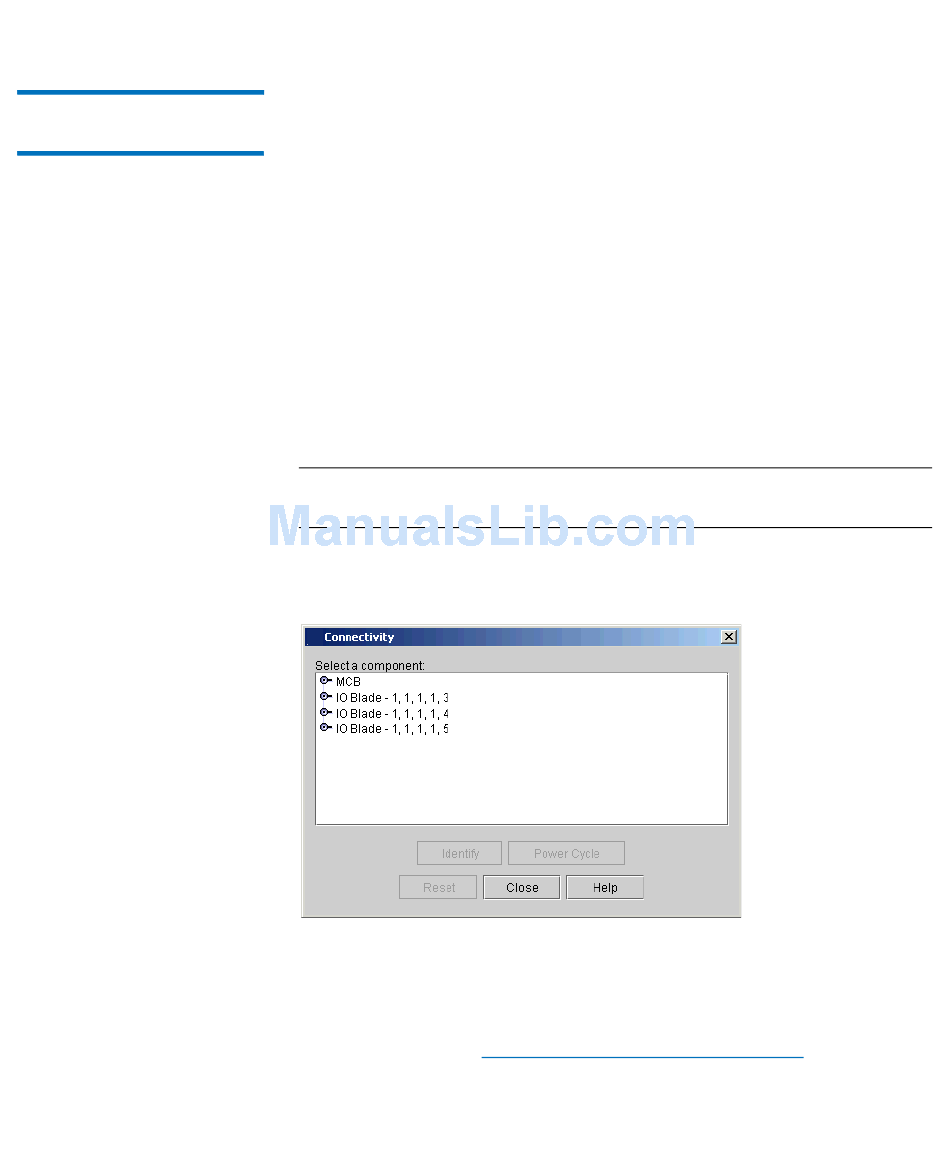

The following example shows the ports for the MCB and the I/O
blade at location 1,1,1,1,4. (For information about location
coordinates, see Understanding Location Coordinates
Quantum Scalar i6000 User's Guide
on page 437.)
