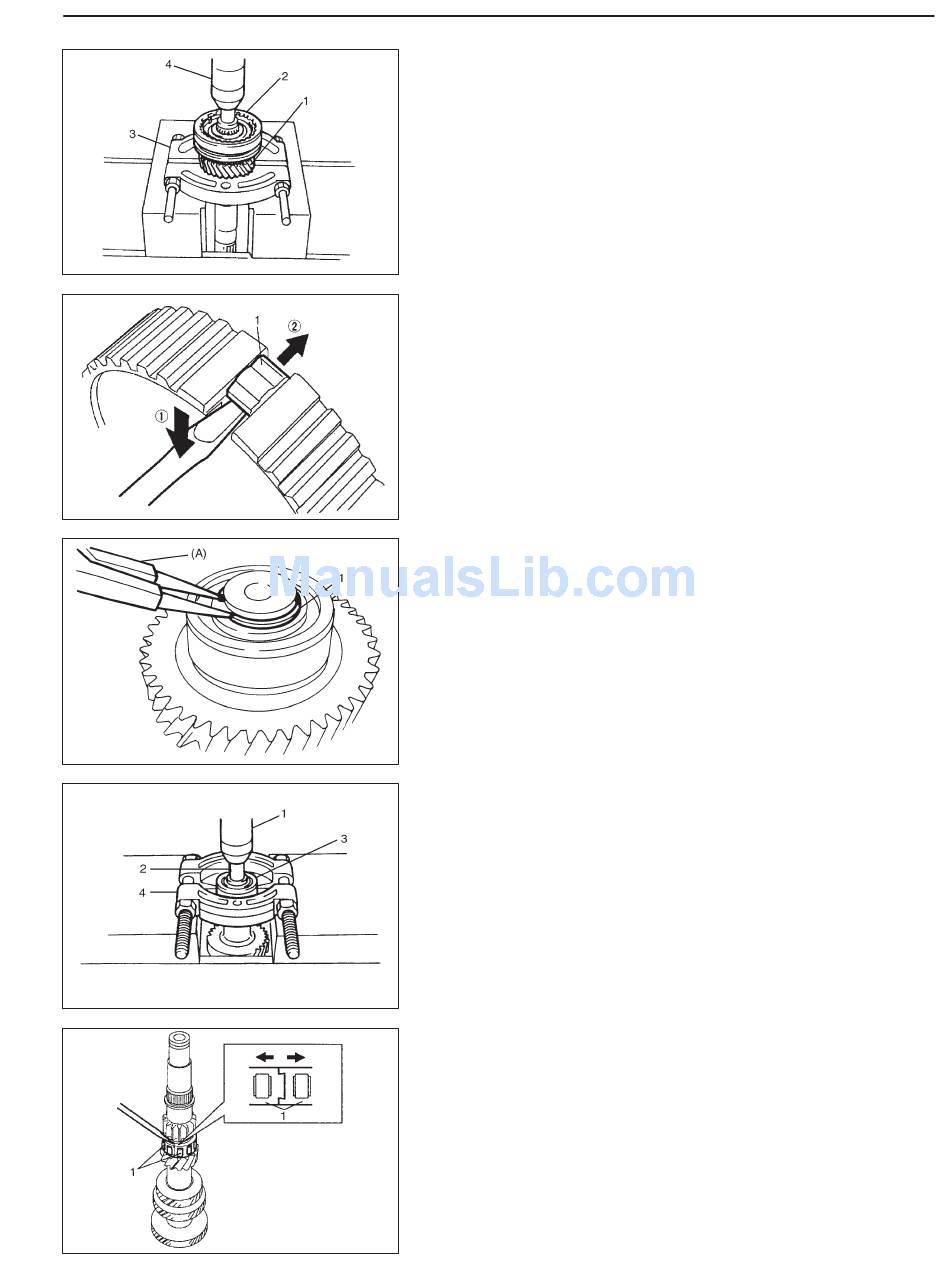

4) Remove circlip from front part of main shaft and pull out 3rd gear
(1), needle bearing, 3rd gear synchronizer outer ring, cone ring,
inner ring and high speed synchronizer sleeve/hub assembly
(2) together by using puller (3) and press (4).
5) Remove high speed synchronizer sleeve from high speed syn-
chronizer hub and then remove keys (1) and springs from high
speed synchronizer hub by using slotted screwdriver or the like
as shown in the figure.
6) Remove low speed synchronizer sleeve/hub in similar manner
as discribed above.

COUNTER SHAFT ASSEMBLY

1) Remove circlip (1) from counter shaft.
Special tool
(A): 09900-06107
2) Pull out cylindrical roller bearing (3) from counter shaft by using
puller (4), press (1) and rod (diameter approx. 22 mm (0.87 in.))
(2).
3) Remove counter shaft bearing (1) as shown in the figure.
MANUAL TRANSMISSION 7A2-27
